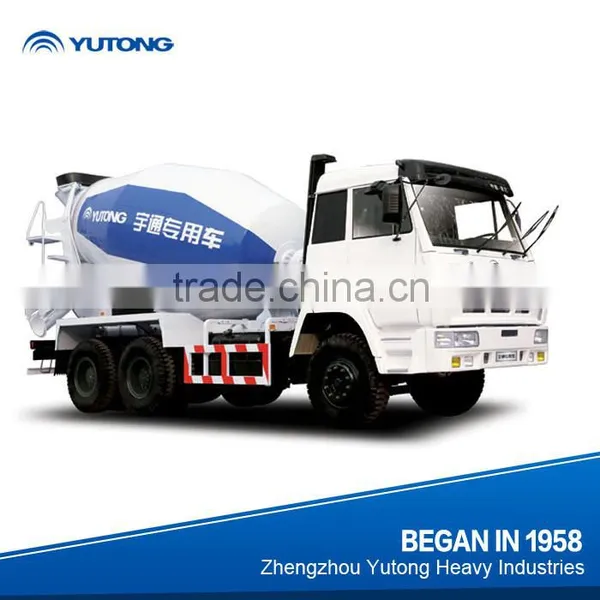

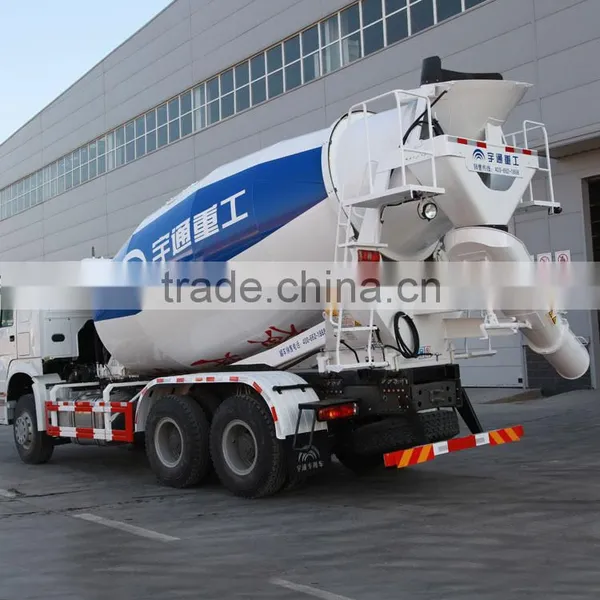

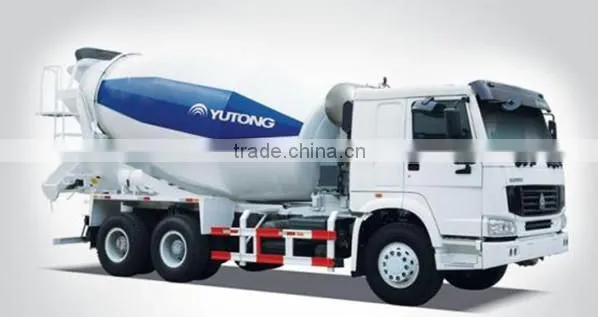

Concrete Mixer Truck
|
Yutong concrete mixer truck introduces advanced technology from abroad and matches original imported hydraulic system manufactured by world famous company to ensure excellent performance and reliable quality. Currently we have already developed a series of special purpose vehicle for Sale with different specifications by matching chassis produced by well-known manufacturers in domestic market such as Sinotruk, Dongfeng Automobile.
- Main Technical Parameters of ZH036-43
Declared external dimension (mm) |
9820×2500×3995 |
External dimension (mm) |
9905×2500×4090 |
Chassis model |
ZZ1257N4048W |
Curb weight of complete truck(kg) |
Actual: 15960 (Declared: 14620) |
Rated load (Kg) |
10250 |
Maximum vehicle speed (km/h) |
86/97 |
Wheelbase (mm) |
4025+1350 |
Front suspension / rear suspension (mm) |
1500/2945 |
Approach angle/ departure angle(°) |
16/19 |
Wheel track of front wheel (mm) |
2022,2041 |
Wheel track of rear wheel (mm) |
1830/1830 |
Tyre |
12.00R20 Steel wire tire |
Agitating volume (cubic meter) |
12 |
Feed rate (cubic meter/minute) |
≥2.7 |
Discharge rate (cubic meter/minute) |
≥0.65 |
Discharging residual ratio (%) |
≤0.5 |
Rotating speed of mixing drum (r/min) |
0—14 |
Performance characteristics of ZH036-43
Yutong concrete mixer truck introduces the foreign advanced upper-car technology and it can match with the hydraulic systems imported from internationally renowned manufacturer. The truck has high performance and reliable quality. At present, there are a series of products of different cubic meters, which can match with the chassis manufactured by China National Heavy Duty Truck, Shaanxi Automobile Group, Dongfeng and other well-known domestic manufacturers, so as to meet customer needs in different regions.
1. Reliable quality and high operational stability
Tank body is assembled and connected by using specialized fixtures to ensure the correct concentricity of the tank body and stable operation of mixing tank.
Subframe adopts high-grade anti-bending and torsion resistant longitudinal beams (formed as rectangular tubes). Longitudinal beams are connected by using the national advanced diagonal bridging structure, which effectively increases the rigidity of the entire upper-car and improves the quality stability and operation safety of the entire vehicle.
2. High strength, durable, and long service life
The tank body and main structure are made of low alloy steel with high strength and great wear resistance.
It has dual sealing head structure. Reinforcing plates are added outside the heads and stiffeners are added inside the heads, greatly increasing tank body rigidity.
3. High working efficiency
Double helical blades with optimal design are used in the tank body to realize unloading at a low rotation speed and a high displacement.
Front cone of the tank body is fitted with two forced stirring blades to enhance mixing function and effectively prevent dilution.
The vehicle adopts HOWO series chassis manufactured by China National Heavy Duty Truck and it introduces foreign advanced upper-car technology. In addition, it can match with hydraulic systems imported from internationally renowned manufacturer and the operation of operating system is flexible and easy.
4. Attractive appearance
The vehicle has unique and beautiful modeling, advanced welding technology of tank body, high performance, reliable quality and highly cost-effective.
5. Optional
This vehicle can select and use PMP PMB7.1 reductor, PMH P90 pump and PMH M90 motor and also it can select and use PMP PMB7.1 reductor, Sauer T90 pump and Sauer S90 motor.
Industries, formerly known as
Zhengzhou Engineering Manufacturing
Factory, was established in 1958
Planning Commission in 1970 and
became Chinese Military
Engineering Machinery Manufacturing
Factory with an annual output of 1,000 sets.
Machinery Manufacturing
Factory has been transformed into
a local enterprise.
restructuring for it and set
up Zhengzhou Yutong Heavy
Industries Co., Ltd.
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.
