YUTONG Road Wrecker
Integrated tow truck manufactured by our company can be divided into 3 kinds including two-axle road wreckers, three-axle road wreckers and five-axle road wreckers. Among which, two-axle road wreckers and three-axle road wreckers are equipped with extended and thin-type supporting arms made of high-strength steel to greatly enhance the strength performance and effectively solve the problem of low chassis of buses. Five-axle road wreckers are developed for road rescue and their hoisting capacity is greatly improved.
Overall dimension of complete vehicle (mm) |
8810×2500×3290 |
Wheelbase (mm) |
5600 |
Wheel track of front wheel (mm) |
2022 |
Wheel track of rear wheel (mm) |
1830 |
Maximum under-pulling capacity (kg) |
19000 |
Maximum hoisting-pulling capacity (kg) |
12000 |
Furthest hoisting-pulling capacity (kg) |
5800 |
Telescopic stroke of boom (mm) |
2500 |
Maximum hoisting height (mm) |
5500 |
Maximum lift angle (°) |
35 |
Rated tractive force of winch (kN) |
80 |
Number of winch |
2 |
Maximum under-hoisting capacity (kg) |
6400 |
Maximum under-hoisting capacity in full-extension condition (kg) |
5000 |
Maximum efficient under-hoisting length (mm) |
3900 |
Telescopic stroke of support arm (mm) |
925×2 |
Folding angle of support arm (°) |
-7~+92° |
Kerb mass of entire vehicle (kg) |
14500 |
Maximum vehicle speed (km/h) |
90 |
Maximum gradeability (%) |
≥20 |
Maximum turning diameter (m) |
≤23 |
Minimum ground clearance (m) |
≥260 |
Approach angle (°) |
16 |
Departure angle (°) |
15 |

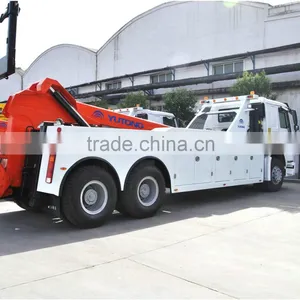

Picture of yutong road wrecker
Performance Feature of yutong road wrecker
1.Working device has superior performance
The working device adopts three-dimensional simulation design. Its structural configuration is reasonable and its key components are made of high-strength steel and have good quality. The working device is composed of hoisting arm and supporting arm. Due to the use of hydraulic drive, the device has many functions such as pulling, hoisting, and dragging and so on. It can be used in a wide range.
2. Supporting arm plays assistant role in the adjustment
The lifting mechanism is equipped with a connecting bracket owning adaptive adjusting hinged point, greatly enhancing the swinging ability of the supporting arm. During the lifting operation, the connecting bracket can cooperate with the lifting action of hoisting arm and constantly adjust the effective clearance between the supporting arm and the truck's front bumper, so as to ensure the safe and reliable lifting operation.
3. Key hydraulic parts, electrical components are imported
All the key hydraulic parts and electrical components are imported quality products. Multiple directional control valve, balance valve, seals (for hydraulic cylinder and pipes), electrical control handles, etc are all high-class imported products. Therefore, the quality of complete truck is reliable and the service life is long.
4. The use of two-way synchronous control systems
Both sides of the vehicle body are equipped with control systems. The control handles are placed with a angle of inclination of 45°, providing better visual effect and more reasonable and comfortable control posture.
