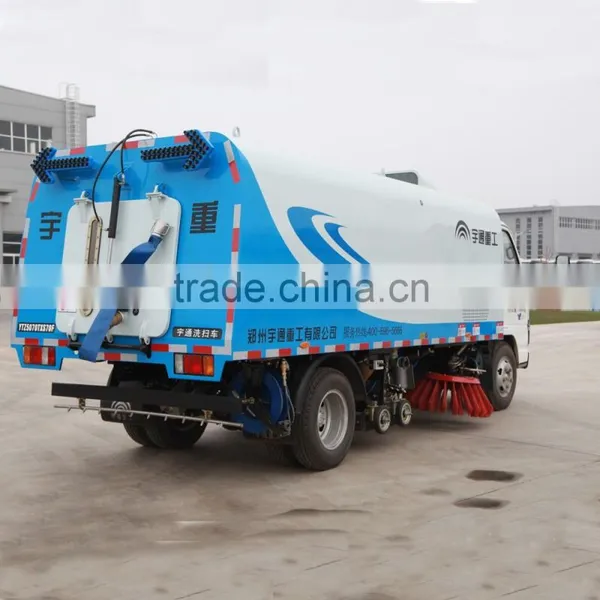

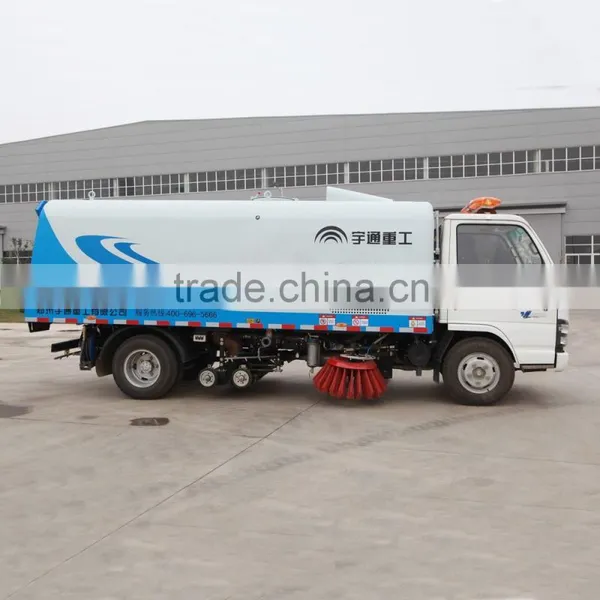

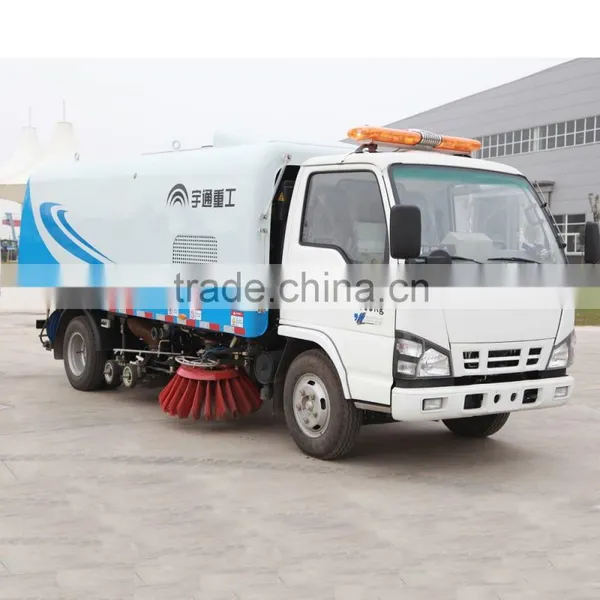

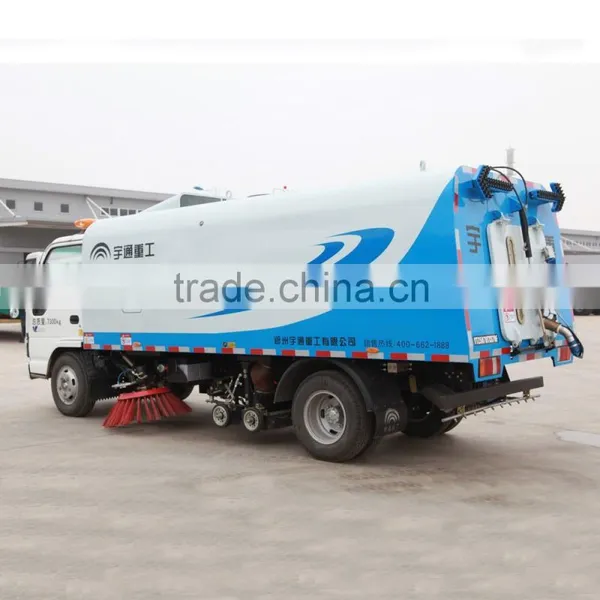

YUTONG Plain Coloured Green Road Washer Trucks
Main Technical Parameters of Road Washer Trucks
Work performance |
High-pressure cleaning |
Cleaning width |
m |
3.1 |
|
Washing speed |
km/h |
3~15 |
|||
Water pressure for washing |
MPa |
10 |
|||
Water volume for washing |
L/min |
80 |
|||
Maximum suction granularity |
mm |
110 |
|||
Sweeping work |
Sweeping width |
m |
3 |
||
Operating speed |
km/h |
3~20 |
|||
Maximum sweeping capacity |
m2/h |
60000 |
|||
Discharge angle |
° |
≥45 |
|||
Maximum volume of clean water tank |
L |
4500 |
|||
Maximum volume of sewage tank |
L |
2800 |
|||
Driving performance |
Maximum speed (full load) |
km/h |
100 |
||
Maximum climbing angle |
% |
30 |
|||
Brake distance (full load, 30 km/h) |
m |
≤10 |
|||
Minimum Turning Diameter |
m |
13.6 |
|||
Fuel consumption |
Fuel consumption for driving |
L/10000m2 |
12.8 |
||
|
Fuel consumption for work (Average sweeping speed 8km/h) |
L/h |
6.5 |
|||
L/10000m2 |
2.4 |
||||
Mass parameters |
Complete Vehicle Kerb Mass |
kg |
5670 |
||
Max. gross mass |
kg |
7300 |
|||
Structure dimension |
Appearance dimension (length x width x height) |
mm |
6450×2050×2470 |
||
Wheel Tread |
mm |
3815 |
|||
Wheel Tread |
Front wheel |
mm |
1504 |
||
Rear wheel |
mm |
1425 |
|||
Minimum Ground Clearance |
mm |
140 |
|||
Main Configuration of Road Washer Trucks
Chassis model of Road washer trucks |
QL1070A1KAY (Qingling brand) |
Model of chassis-mounted engine |
4KH1-TCG40 |
Maximum power of Road washer trucks |
88 kW /2900 rpm |
Overall Dimension of Road washer trucks (mm) |
6530×2050×2470 |
Clutch of Road washer trucks |
Single-sheet, dry type, diaphragm spring |
Model of Road washer trucks |
In-line, four-stroke, water cooling, electronic controlled VE pump, turbocharged |
Model of auxiliary engine |
JE493ZG (supercharged engine) |
Maximum power of Road washer trucks |
62kW /3600 rpm |
|
Performance Characteristics of Road Washer Trucks
| 1.The road washer trucks adopt a technological structure of "two central-mounted sweeping brushes + central-mounted suction nozzle and internal-mounted high pressure water spray bar + central-mounted high pressure side spray bars". Spray bars on left and right sides are integrated with the suction nozzle. The truck is featured by centralized operating devices, constant space between suction nozzle and ground, etc. |

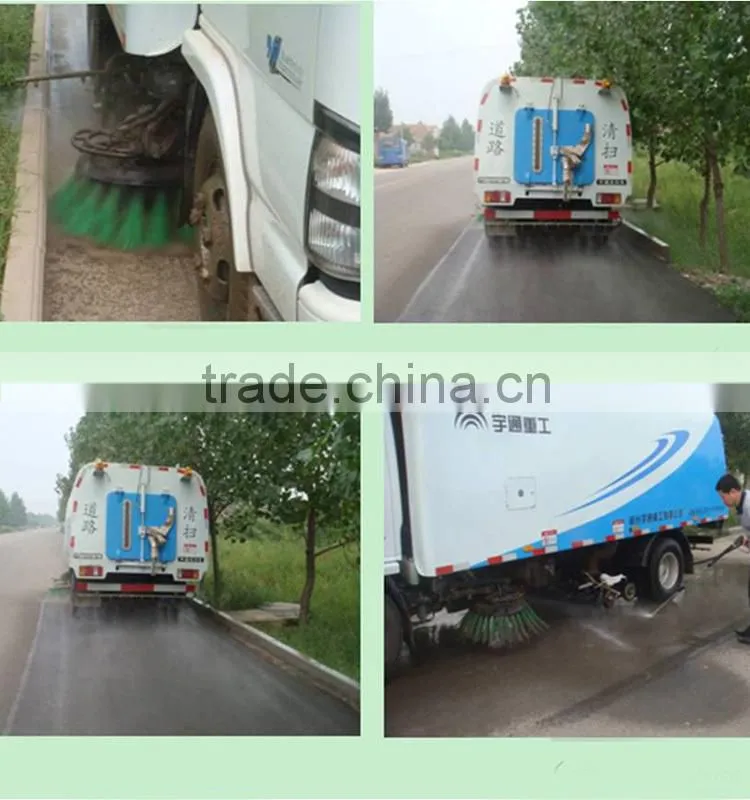

| 2. The road washer trucks has various functions including road sweeping, road washing, high pressure cleaning, kerbstone washing, sewage recycling, spraying, washing of road separating wall and others. |
| 3. The road washer trucks has technically advanced high-pressure waterway control system. When the high pressure water pump starts and when the working water valve is switched, the water pump can realize automatically unloading. A low water level sensing alarm system is equipped within the water tank. It will automatically give an alarm when there is no water in the tank, so as to prevent the water pump from being damaged due to water shortage. |
| 4. The auxiliary engine of the road washer trucks is equipped with a turbo booster, which improves engine power and fuel efficiency and reducesenvironmental pollution. |
|
|
|
|
|
|
|
|
|
|
|
