5 tons small waste compactor truck
- 20 Set / Sets per Month
- TIANJIN&SHANGHAI&QINGDAO
- T/T L/C D/P D/A
- Small Dust cart, garbage truck 3TON,4TON,5TON
- Constructed mining small garbage transfer truck/site dumper on sale
- 4wd 1.5ton Dumper Truck, 4wd Small Garbage Truck Compactor with Factory Price Automatic Provided 0.7CBM 1500kg 3320-2780*2150
- New Design Electric Power 48V Three Wheel Cleaning Tricycle For Garbage Green Energy BJ3014
- Mobile garbage compactor container 8cbm 10cbm 12cbm 16cbm 18cbm 20cbm
- 3cbm 4cbm 5cbm 6cbm 8cbm 10cbm 12cbm hook lift bin for hook arm garbage truck
Product Details
Condition: | New | Type: | Compactor | Transmission Type: | Manual |
Emission Standard: | Euro 3 | Fuel Type: | Diesel | Size: | 7330X2462X2740 |
Gross Vehicle Weight: | 12495 | Place of Origin: | Henan, China | Brand Name: | YUTONG |
Model Number: | YTZ5250ZYS20E/F | Certification: | CE&ISO | After-sales Service Provided: | Overseas service center available |
Product Description

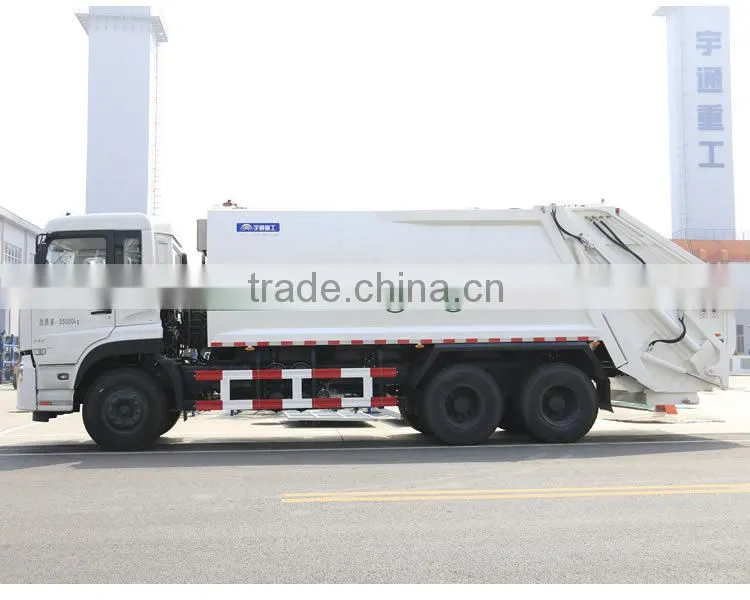

5 tons small waste compactor truck
The chassis of garbage compactor truck adopts the domestic well-known Dongfeng forward control Type-B automobile chassis with high market share rate, in compliance with the National Ⅲ Emission Standard.
Major technical parameters of YTZ5250ZYS20E/F
Product model | YTZ5120ZYS20E |
Chassis model | EQ1126KBJ |
Chassis manufacturer | Dongfeng Automobile Co., Ltd. |
Overall dimension of complete vehicle (mm) | 7330 (7760;7640)×2462×2740 |
Wheelbase (mm) | 3950 |
Wheel track of front wheel (mm) | 1900 |
Wheel track of rear wheel (mm) | 1800 |
Kerb mass (kg) | 7800,8100,8020 |
Rated load (Kg) | 4500,4200,4280 |
Gross mass (kg) | 12495 |
Maximum vehicle speed (km/h) | 90 |
Maximum gradeability (%) | 20 |
Maximum turning diameter (m) | 18 |
Minimum ground clearance (mm) | 260 |
Approach angle (°) | 30 |
Departure angle (°) | 13 |
Dustbin volume (m3) | 9.2 |
Volume of precompressor (m3) | 1.2 |
Compression cycle time (s) | 25 |
Garbage dumping time (s) | 40 |
Compression density (t/m3) | 0.6-0.8 |
Main configurations of YTZ5250ZYS20E/F
Product model | YTZ5120ZYS20E |
Chassis model | EQ1126KBJ |
Chassis manufacturer | Dongfeng Automobile Co., Ltd. |
Engine model | ISDe160 30 |
Rated power of engine | 118 kw |
Model of gearbox | DF6S750 |
Tyre | 9.00-20 bias tire |
Optional Configuration | Bucket hanging type turnover feeding mechanism Dustpan-type turnover feeding mechanism |
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
