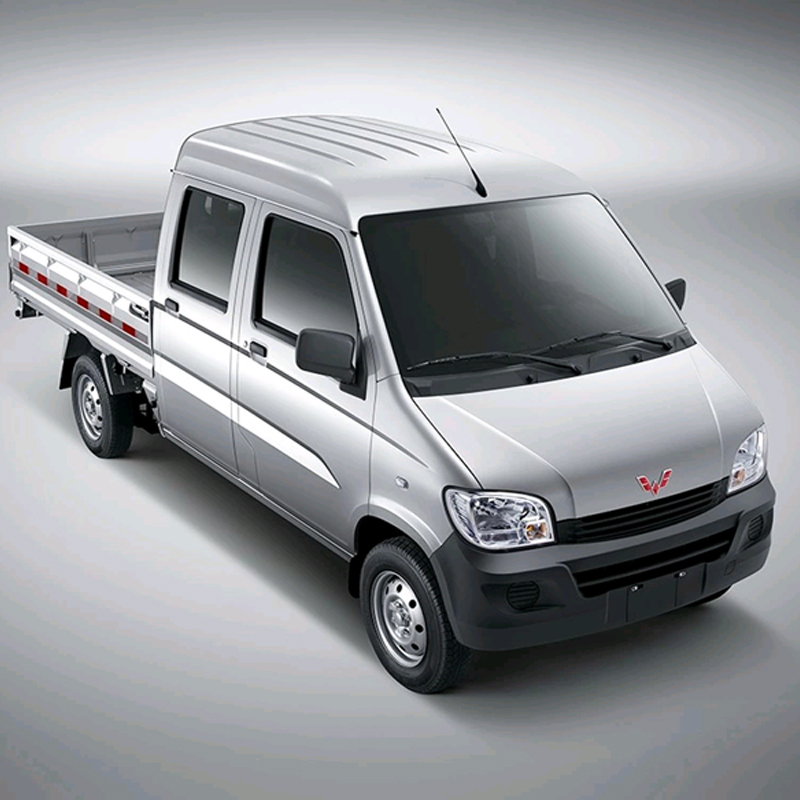

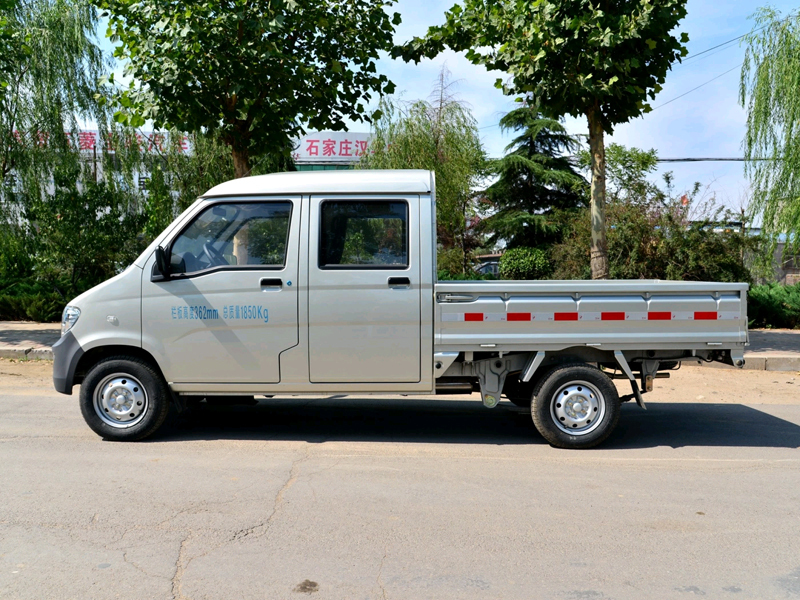

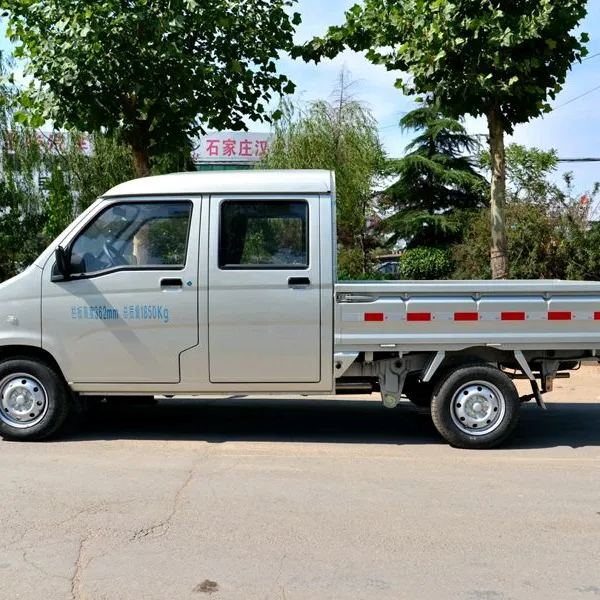

Help CenterWuling Mini Truck
Related Products

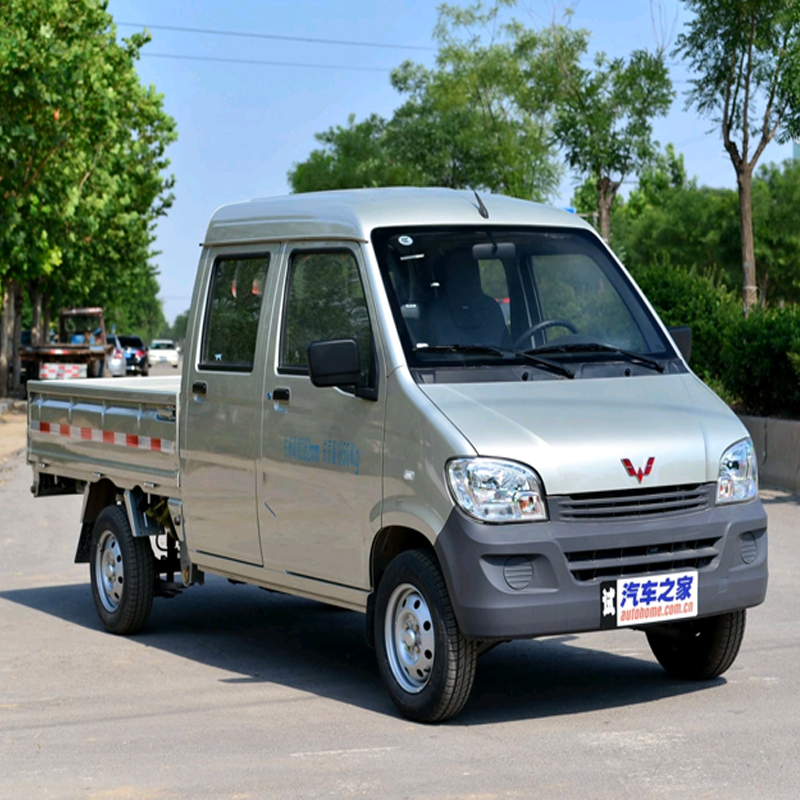

Vehicle parameters | |||
Vehicle Model |
ZBH1020ZW |
Curb weight |
965kg |
Overall dimensions |
4600X1503X1849mm |
Van dimensions |
2000X1424X360mm |
Chassis brand |
WULING |
Loading capacity |
1000kg |
Chassis parameters | |||||
Front/rear wheel track |
1300 / 1300mm |
Maximum speed |
100km/h |
||
Approach/departure angle |
29/30° |
|
|
||

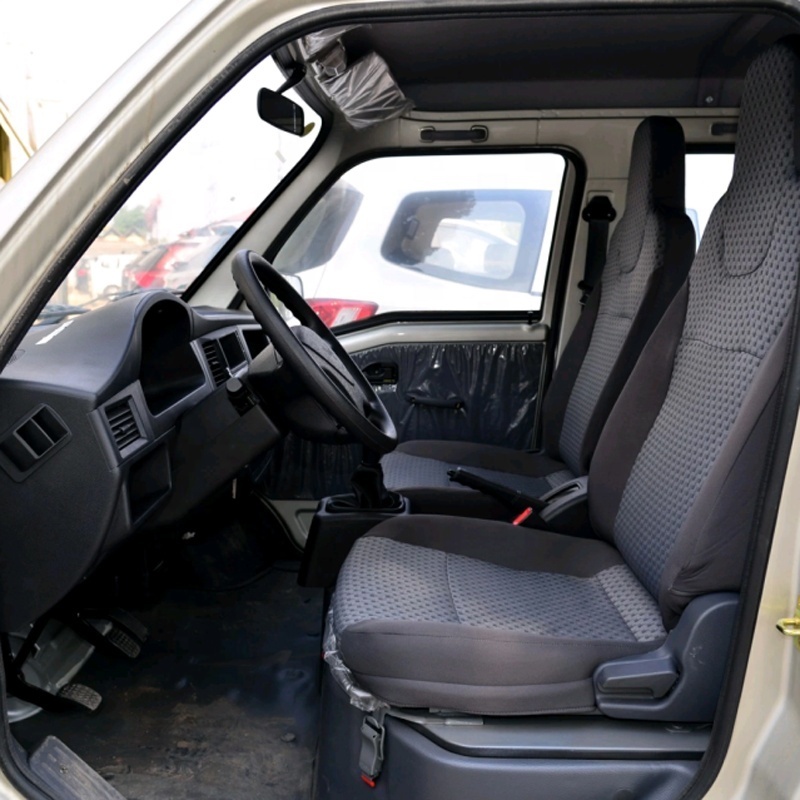

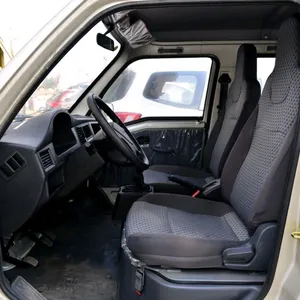

Cab |
Configuration |

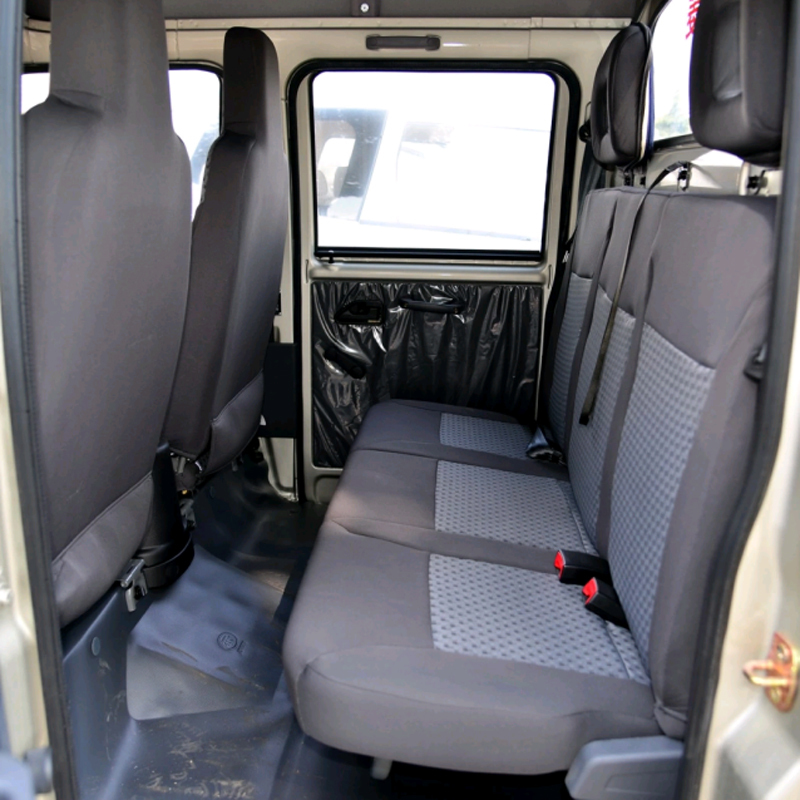

double row cab,ABS+EBD |
|||
Color |
White, other color is optional |
||||
Emission |
Euro 5 |
||||
Type |
4 cylinders,in-line,4-stroke,water-cooled,gasoline engine |
||||
Rated power |
82hp |
||||
Displacement |
1200ml |
||||
Tire |
Size |
155R13LT |
|||
Number |
4 nos |
||||
Front axle |
Disc brake |
||||
Rear axle |
Drum brake |
||||
Rear suspension system |
Leaf spring. |
||||
Drive form |
4X2 (RWD) |
||||
Rated voltage |
24V,DC |
||||
Transmissions |
5-speed, manual |
||||

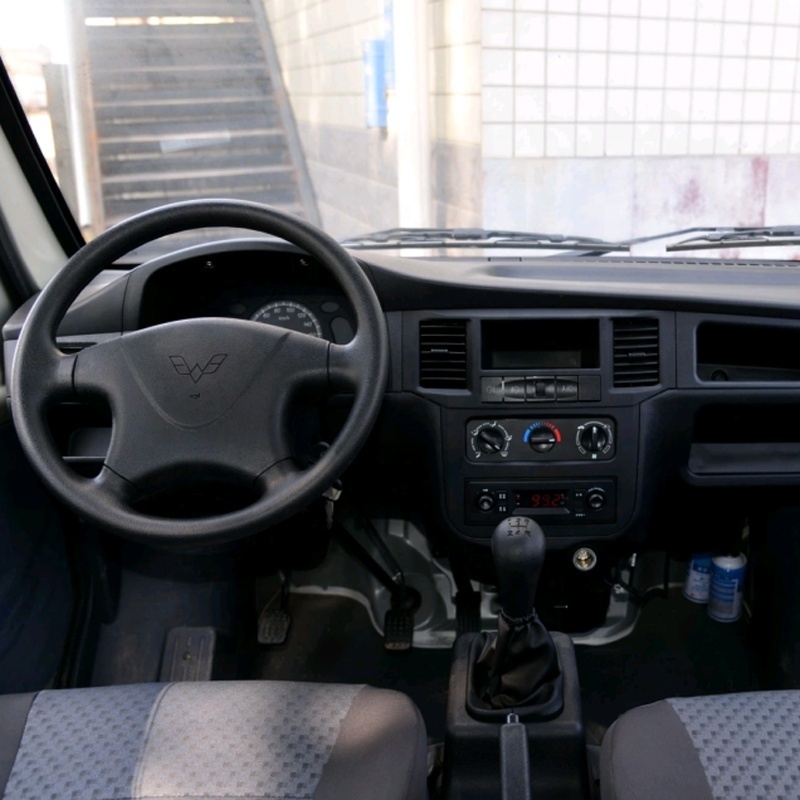

Steering device |
Steering wheel |
||||
Steering wheel |
Left hand drive |
||||
Selective configuration |
|
||||
If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
Van body structure parameters | ||||
Van dimensions |
2000X1424X360mm |
Loading capacity |
1000kg |
|
Van material |
Corrugated iron tile |
Color and Logo |
Optional |
|
Standard configuration |
Chassis, carbon steel van body. |
|||
