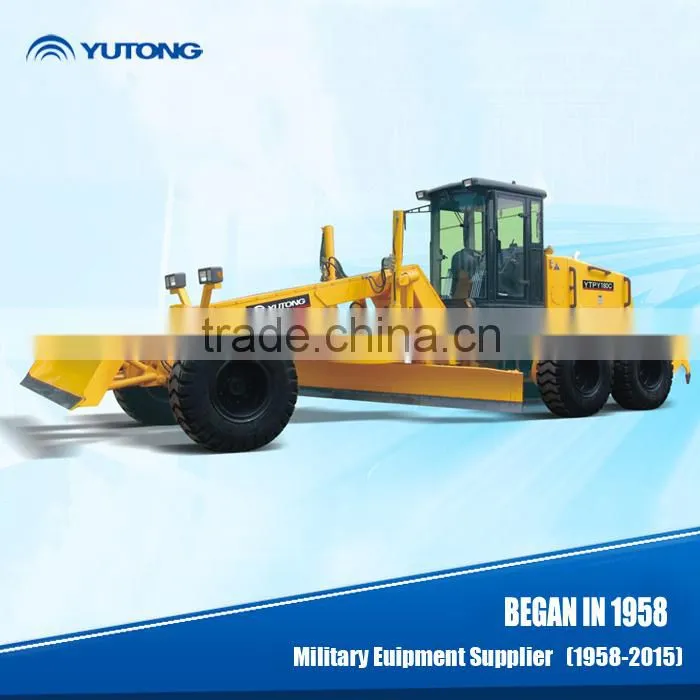

Yutong 2016 good price road grader
|
MODEL
|
|
YTPY220C
|
Operation mass |
kg |
16900 |
Front axle load |
kg |
5820 |
Rear axle load |
kg |
11080 |
Max.forward speed |
km/h |
36.8 |
Max.backward speed |
km/h |
24.8 |
Speed geae number |
|
F6/R3 |
Turning radius |
mm |
7800 |
Hydraulic system pressure |
Mpa |
18 |
Blade length*height |
mm |
3965*610 |
Front wheeltrack |
mm |
2150 |
Rear wheeltrack |
mm |
2340 |
Wheelbase |
mm |
6362 |
Engine model |
|
6CTA8.3 |
Engine power |
KW |
160 |
Overall dimensions |
mm |
8585*2790*3340 |
|
Main Features
Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. Lt can be used for ditching,grading, slope scraping, bulldozing,ripping,virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting,Patent hydraulically-operated pin drawing device is designed firstly in board.
Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.
Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
Dual diagonal appearance with whole metal hood 1m*1m distance.
Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
- Can you give us a brief introduction to Yutong Company please?
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
- How about the quality guarantee and after -sale service?
For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
- How about the payment terms?
We accept T/T, L/C, D/P, D/A,even L/G.
