R38 Spherical Button Carbide Drill Bit in China

R38 Spherical Button Carbide Drill Bit in China thumbnail-1
R38 Spherical Button Carbide Drill Bit in China photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
B964-R38-S to B1389-R38-S-2
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number B964-R38-S to B1389-R38-S-2
Type Other, H-thread Button Bit
Material High Carbon Steel
Use Well Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description

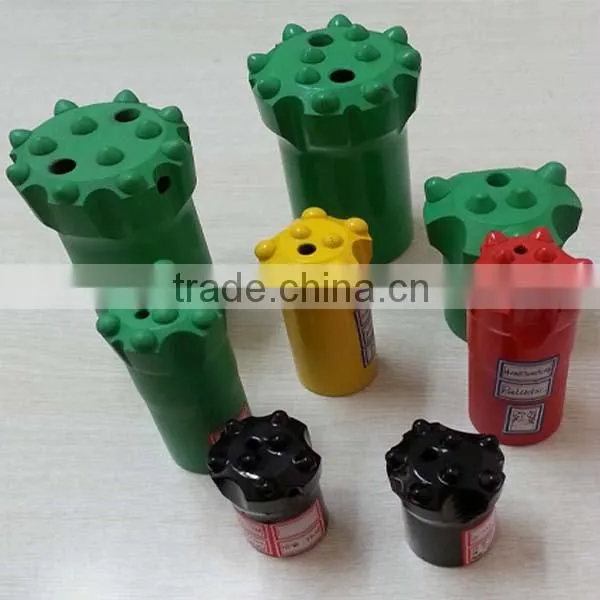

R38 Spherical Button Carbide Drill Bit in China



Description

This type of bit is well known for its wear resistance and high speed drilling on soft to medium-hard rock formations (between 70 Mpa to 180 Mpa compressive strength). Featuring ballistic tungsten carbide inserts that is known to have high penetration rate, but has weak configuration against carbide fracture.

• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R38 Button Bit Spherical Buttons



Applications

• Underground mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300648 B964-R38-S, R38 Button Bit, Spherical Buttons 64 2 1/2 3x11 6x12 35° 3 - 1.8
4148300649 B1270-R38-S, R38 Button Bit, Spherical Buttons 70 2 3/4 4x11, 1x11 8x11 40° 2 - 1.9
4148300650 B1370-R38-S, R38 Button Bit, Spherical Buttons 70 2 3/4 4x10, 1x10 8x11 30° 4 - 1.9
4148300651 B1070-R38-S, R38 Button Bit, Spherical Buttons 70 2 3/4 3x10, 1x10 6x12 35° 3 - 1.8
4148300652 B1276-R38-S, R38 Button Bit, Spherical Buttons 76 3 4x11 8x11 40° 2 - 2.4
4148300653 B1076-R38-S, R38 Button Bit, Spherical Buttons 76 3 3x11, 1x11 6x12 35° 3 1 2.6
4148300654 B1376-R38-S, R38 Button Bit, Spherical Buttons 76 3 4x11, 1x11 8x12 35° 4 - 2.6
4148300655 B1389-R38-S-1, R38 Button Bit, Spherical Buttons 89 3 1/2 5x12 8x12 35° 2 - 3.3
4148300656 B1389-R38-S-2, R38 Button Bit, Spherical Buttons 89 3 1/2 4x13, 1x13 8x13 35° 4 - 3.3









Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
