T45 Button Bit, Ballistic Button Drill Bit for Mining

T45 Button Bit, Ballistic Button Drill Bit for Mining thumbnail-1
T45 Button Bit, Ballistic Button Drill Bit for Mining photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
B1070-T45-B to B1389-T45-B-2
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number B1070-T45-B to B1389-T45-B-2
Type Other, H-thread Button Bit
Material Tungsten Carbide
Use Well Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description



Detailed Product Description

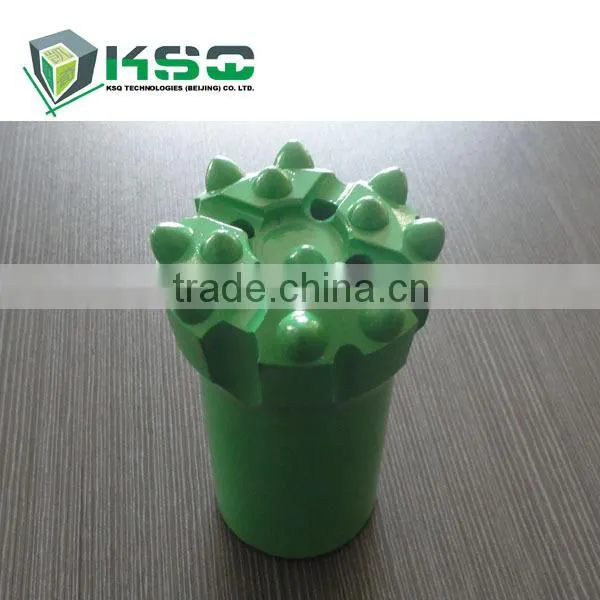

CNC T45 mining Button Drill Bit For Hard Abrasive Rock Underground Mining





Description

This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture

• Widely used in bench and long hole drilling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T45 Button Bit Ballistic Buttons



Applications

• Underground mining
• Tunneling
• Quarry



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300821 B1070-T45-B, T45 Button Bit, Ballistic Buttons 70 2 3/4 3x11,  1x19 6x11 35° 3 - 2.2
4148300822 B1370-T45-B, T45 Button Bit, Ballistic Buttons 70 2 3/4 4x10,  1x10 8x11 35° 4 - 2.2
4148300823 B1276-T45-B, T45 Button Bit, Ballistic Buttons 76 3 4x11 8x11 40° 2 - 2.6
4148300824 B1376-T45-B-1, T45 Button Bit, Ballistic Buttons 76 3 5x11 8x12 35° 2 1 2.6
4148300825 B1076-T45-B, T45 Button Bit, Ballistic Buttons 76 3 3x11,  1x11 6x13 35° 3 1 2.4
4148300826 B1376-T45-B-2, T45 Button Bit, Ballistic Buttons 76 3 4x11,  1x11 8x11 35° 4 - 2.6
4148300827 B1376-T45-B-3, T45 Button Bit, Ballistic Buttons 76 3 4x11,  1x11 8x12 35° 4 - 2.6
4148300828 B1279-T45-B, T45 Button Bit, Ballistic Buttons 89 3 1/2 4x13 8x13 40° 2 - 4.6
4148300829 B1489-T45-B, T45 Button Bit, Ballistic Buttons 89 3 1/2 6x11 8x12 35° 2 - 4.6
4148300830 B1189-T45-B, T45 Button Bit, Ballistic Buttons 89 3 1/2 3x11,  2x11 6x13 35° 3 1 4.1
4148300831 B1389-T45-B-1, T45 Button Bit, Ballistic Buttons 89 3 1/2 4x11,  1x11 8x12 35° 4 - 4.6
4148300832 B1389-T45-B-2, T45 Button Bit, Ballistic Buttons 89 3 1/2 4x13,  1x13 8x13 35° 4 - 4.6









Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
