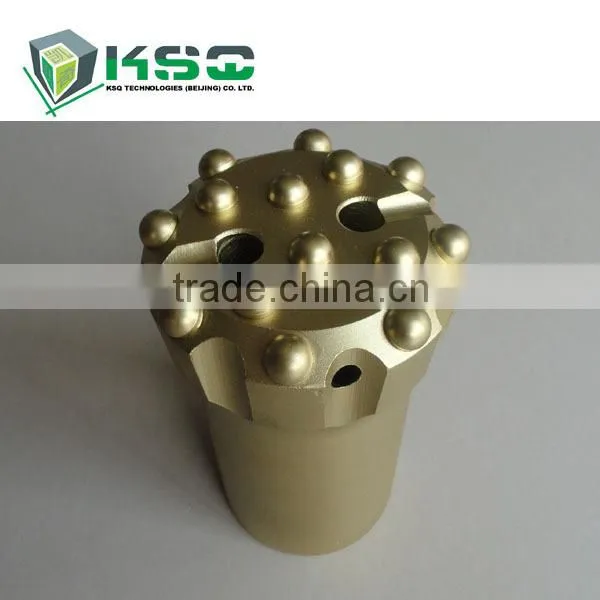

Tungsten Carbide Ballistic Button Drill Bit T38 CNC Drilling Tools

Tungsten Carbide Ballistic Button Drill Bit T38 CNC Drilling Tools thumbnail-1
Tungsten Carbide Ballistic Button Drill Bit T38 CNC Drilling Tools photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
B964-T38-B to B1389-T38-B-3
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number B964-T38-B to B1389-T38-B-3
Type Other, H-thread Button Bit
Material Tungsten Carbide
Use Metal Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description



Detailed Product Description






Tungsten carbide Ballistic Button Drill Bit T38 CNC Drilling Tools High Strength Alloy Steel





Description

This type of bit is well known for its wear resistance and high speed drilling on soft to medium-hard rock formations (between 70 Mpa to 180 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture

• Widely used in bench and long hole drilling
• Bit face design is ideal for soft to medium-hard rock formations

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T38 Button Bit Ballistic Buttons



Applications

• Underground mining
• Tunneling
• Quarry



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300722 B964-T38-B, T38 Button Bit, Ballistic Buttons 64 2 1/2 3x11 6x12 35° 3 - 1.8
4148300723 B1264-T38-B, T38 Button Bit, Ballistic Buttons 64 2 1/2 4x10 8x10 40° 2 - 1.6
4148300724 B1064-T38-B, T38 Button Bit, Ballistic Buttons 64 2 1/2 3x10, 1x10 6x11 35° 3 - 1.7
4148300725 B1264-T38-B, T38 Button Bit, Ballistic Buttons 70 2 3/4 4x11 8x11 40° 2 - 1.9
4148300726 B1070-T38-B, T38 Button Bit, Ballistic Buttons 70 2 3/4 4x10, 1x10 8x11 30° 4 - 1.9
4148300727 B1276-T38-B, T38 Button Bit, Ballistic Buttons 76 3 4x11 8x11 40° 2 - 2.4
4148300728 B1376-T38-B, T38 Button Bit, Ballistic Buttons 76 3 5x11 8x13 35° 2 1 2.4
4148300729 B1076-T38-B, T38 Button Bit, Ballistic Buttons 76 3 3x11, 1x11 6x12 35° 3 1 2.6
4148300730 B1376-T38-B-1, T38 Button Bit, Ballistic Buttons 76 3 4x11, 1x11 8x12 35° 4 - 2.6
4148300731 B1376-T38-B-2, T38 Button Bit, Ballistic Buttons 76 3 4x11, 1x11 8x11 40° 4 - 2.6
4148300732 B1389-T38-B-1, T38 Button Bit, Ballistic Buttons 89 3 1/2 5x13 8x13 35° 2 - 3.3
4148300733 B1489-T38-B, T38 Button Bit, Ballistic Buttons 89 3 1/2 6x11 8x12 35° 2 - 3.3
4148300734 B1189-T38-B, T38 Button Bit, Ballistic Buttons 89 3 1/2 3x11, 2x11 6x13 35° 3 1 3.3
4148300735 B1389-T38-B-2, T38 Button Bit, Ballistic Buttons 89 3 1/2 4x11, 1x11 8x13 35° 4 - 3.3
4148300736 B1389-T38-B-3, T38 Button Bit, Ballistic Buttons 89 3 1/2 4x13, 1x13 8x13 35° 4 - 3.3









Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
