Home > Tools & Hardware > Drilling Tools > Drill Bit > R32 Thread Cross Type Rock Button Bit

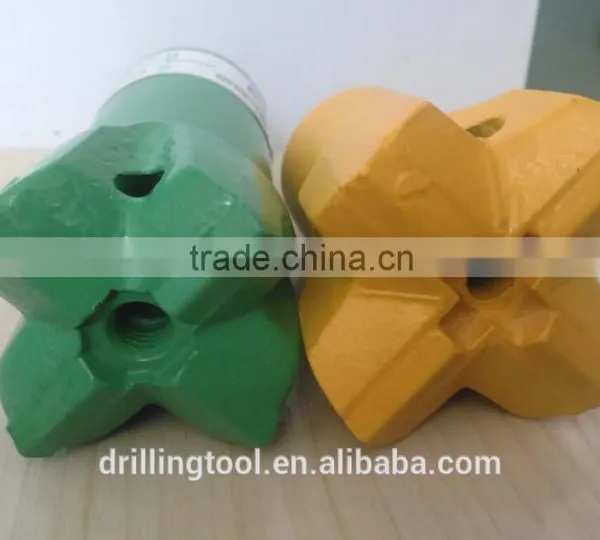

R32 Thread Cross Type Rock Button Bit

R32 Thread Cross Type Rock Button Bit thumbnail-1
R32 Thread Cross Type Rock Button Bit thumbnail-2
R32 Thread Cross Type Rock Button Bit photo-1
R32 Thread Cross Type Rock Button Bit photo-2
US$ 5 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
CR-33-R25 to CR-51-R25
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number CR-33-R25 to CR-51-R25
Type Other, H-thread Steel Cross Type Bit
Material Tungsten Carbide
Use Well Drilling

Our Company

 KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Specifications

High grade tungsten carbide inserts

Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Descripetion

Cross type bit with steel inserts using R32 thread system.

It has a slow penetration rate but it produces a very straight drill hole.

• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling

Color: Green,Blue or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R32 Cross Type Bit



Product Technical Reference



< CNC Milling Cross Bits Hardened Steel Drill Bits R32 1 3/5 inch

Part Number

Product Code

and Brief

Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip

Size (W x H,

mm)

Front

Flushing

drill holes

Side

Flushing

drill holes

Weight

(kg)
4148300553

CR-41-R32, R32

Cross Type Bit

 41 1 3/5 16x10 1       4       0.7
4148300554

CR-43-R32, R32

Cross Type Bit

 43 1 2/3 16x10 1       2       0.8
4148300555

CR-45-R32, R32

Cross Type Bit

 45 1 7/9 16x10 1       4       0.9
4148300556

CR-48-R32, R32

Cross Type Bit

 48 1 8/9 16x10 1       4       0.9
4148300557

CR-51-R32, R32

Cross Type Bit

 51 2     16x10 1       4       1.2
4148300558

CR-57-R32, R32

Cross Type Bit

 57 2 1/4 16x10 1       4       1.3
4148300559

CR-64-R32, R32

Cross Type Bit

 64 2 1/2 18x13 1       4       1.5



Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling

Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
