Specifications
High grade tungsten carbide insertsBit bodies manufactured from high grade steel and processed using state-of-the-art CN
2 Inch H25 Threaded Drill Bit Tungsten carbide Drill Bits 35mm 45mm 70mm
Description

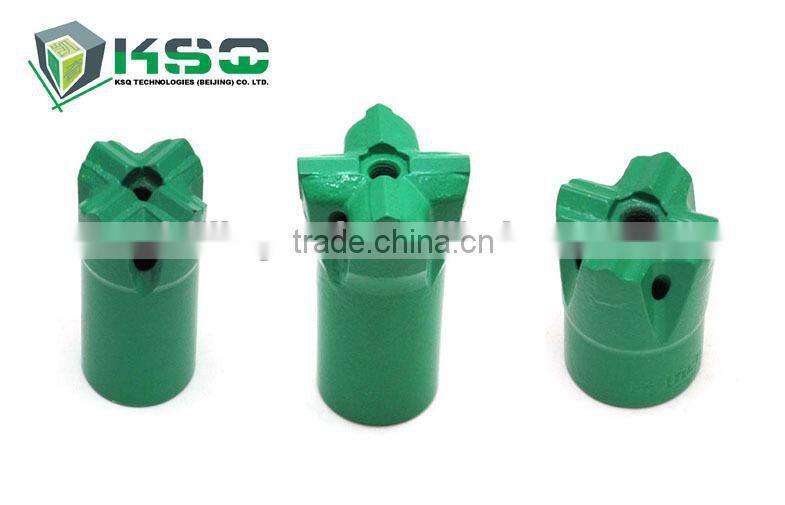

Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.
• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling
Color: Green,Blue or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: H25 H-thread Cross Type Bit
Applications
• Dimensional Stone Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
| Part Number |
Product Code and Brief Description |
Bit Diameter (mm) |
Bit Diameter (inch) |
Tip Size (W x H, mm) |
Front Flushing drill holes |
Side Flushing drill holes |
Weight (kg) |
| 4148300324 |
CR35-H25, H25 H-thread Cross Type Bit |
35 | 1 3/8 | 12 x 8 | 1 | 4 | 0.22 |
| 4148300325 |
CR38-H25, H25 H-thread Cross Type Bit |
38 | 1 1/2 | 12 x 8 | 1 | 4 | 0.26 |
| 4148300326 |
CR41-H25, H25 H-thread Cross Type Bit |
41 | 1 3/5 | 12 x 8 | 1 | 4 | 0.3 |
| 4148300327 |
CR45-H25, H25 H-thread Cross Type Bit |
45 | 1 7/9 | 14 x 8 | 1 | 4 | 0.38 |
| 4148300328 |
CR48-H25, H25 H-thread Cross Type Bit |
48 | 1 8/9 | 14 x 8 | 1 | 4 | 0.42 |
| 4148300329 |
CR51-H25, H25 H-thread Cross Type Bit |
51 | 2 | 14 x 8 | 1 | 4 | 0.5 |
| 4148300330 |
CR54-H25, H25 H-thread Cross Type Bit |
54 | 2 1/8 | 14 x 8 | 1 | 4 | 0.5 |
| 4148300331 |
CR57-H25, H25 H-thread Cross Type Bit |
57 | 2 1/4 | 16 x 10 | 1 | 4 | 0.61 |
| 4148300332 |
CR64-H25, H25 H-thread Cross Type Bit |
64 | 2 1/2 | 16 x 10 | 1 | 4 | 0.71 |
| 4148300333 |
CR70-H25, H25 H-thread Cross Type Bit |
70 | 2 3/4 | 16 x 10 | 1 | 4 | 0.88 |
| 4148300334 |
CR76-H25, H25 H-thread Cross Type Bit |
76 | 3 | 20 x 12 | 1 | 4 | 1.25 |
Carton Box or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
