Home > Tools & Hardware > Drilling Tools > Drill Bit > R38 X-Type Bit Mining Tools Thread Cross Steel Type Bits

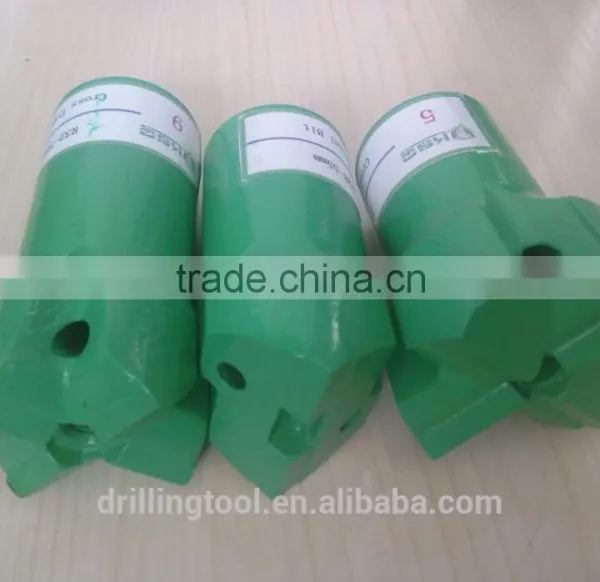

R38 X-Type Bit Mining Tools Thread Cross Steel Type Bits

R38 X-Type Bit Mining Tools Thread Cross Steel Type Bits thumbnail-1
R38 X-Type Bit Mining Tools Thread Cross Steel Type Bits photo-1
US$ 10 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R38 X-Type bit 64mm 89mm
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R38 X-Type bit 64mm 89mm
Type Other, H-thread Steel Cross Type Bit
Material Tungsten Carbide
Use Masonry Drilling

Our Company

 KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Specifications

High grade tungsten carbide inserts

Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Descripetion



Thread Drill Bits---Diameter: 20mm-60mm

Thread Type---R22, R25, R28, R32, R38, T38, T45, T51
Face Shape---Plate, Concave, Convex.

Bit Shank & Coupling sleeve---R22, R25, R28, R32, R38, T38, T45, T51



Drill Rod

Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.

Thread Rod---R25, R28, R32, R38, T38, T45, T51.

Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.



R38 X-Type bit Mining Tools Thread Cross Steel Type Bits



Product Technical Reference



< CNC Milling Cross Bits Hardened Steel Drill Bits R32 1 3/5 inch

R25 Thread cross type bit
 No. Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 33 14x8 1 2
2 35 14x8 1 2
3 38 14x8 1 4
4 41 14x8 1 4
5 43 14x8 1 4
6 45 14x8 1 2
7 51 14x8 1 4
R28 Thread cross type bit
No. Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 38 14x8 1 2
2 41 14x8 1 4
3 43 14x8 1 4
4 45 14x8 1 4
5 51 14x8 1 4
R32 Thread cross type bit
  No. Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 41 16×10 1 4
2 43 16×10 1 2
3 45 16×10 1 4
4 48 16×10 1 4
5 51 16×10 1 4
6 57 16×10 1 4
7 64 18×13 1 4
R38 X-Type bit
  No. Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 64 25×13 1 2
2 76 25×13 1 2
3 89 25×13 1 2



Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling

Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
