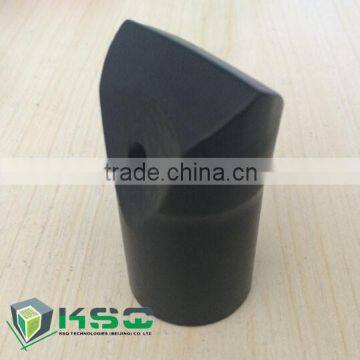

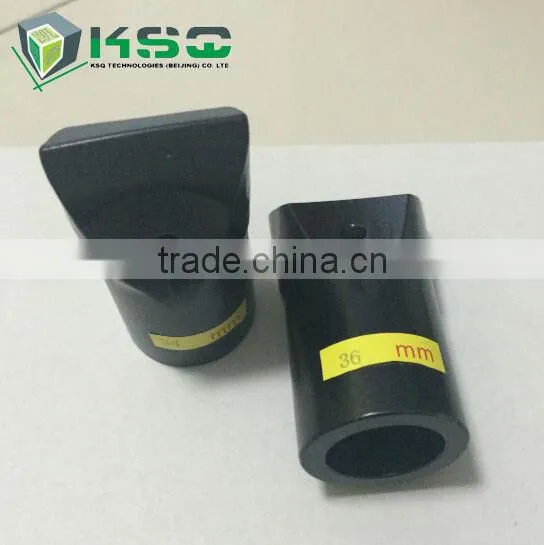

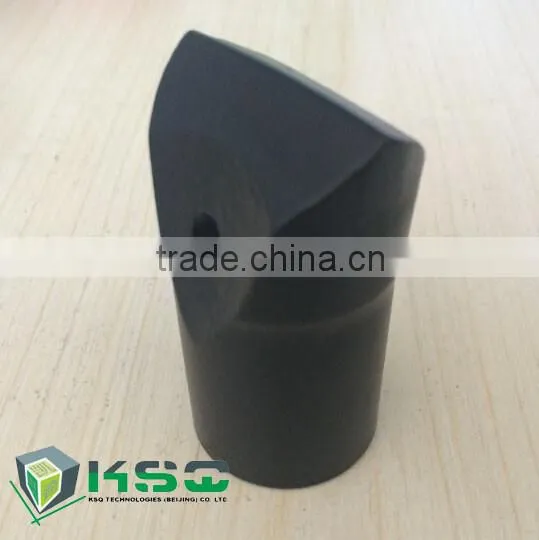

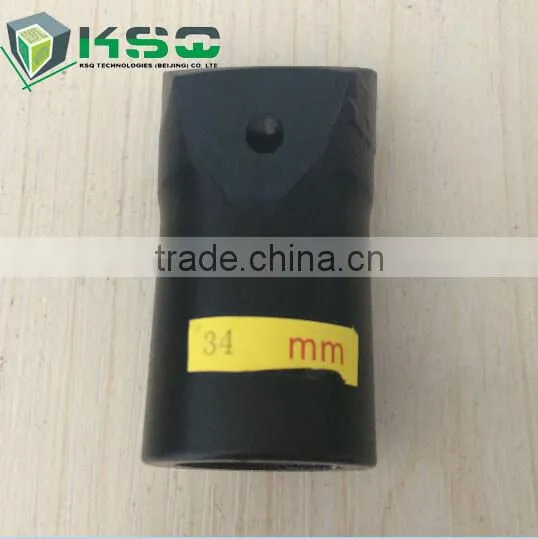

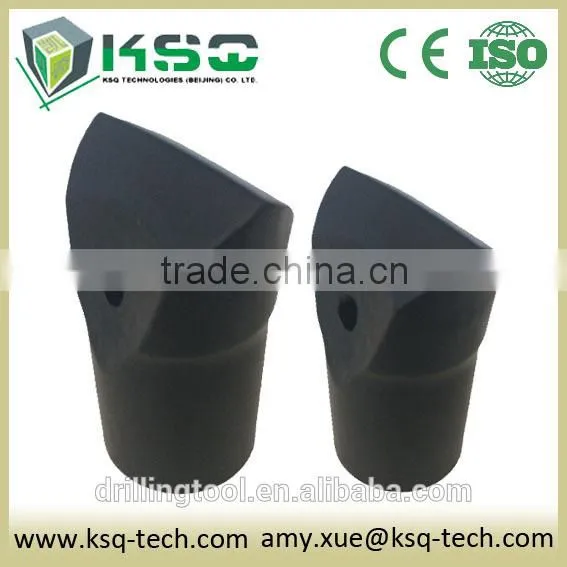

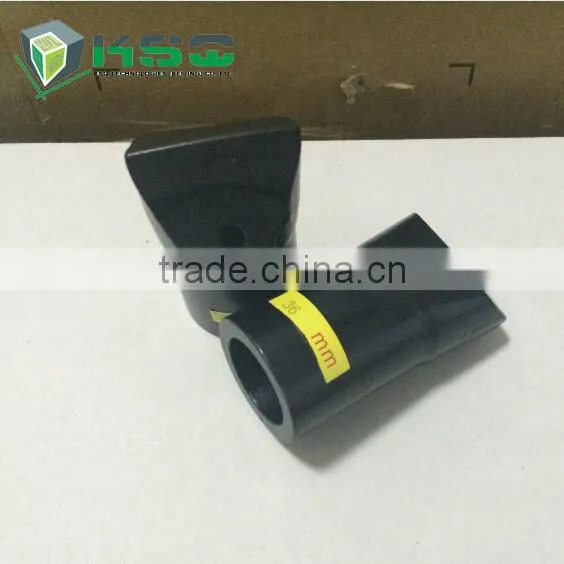

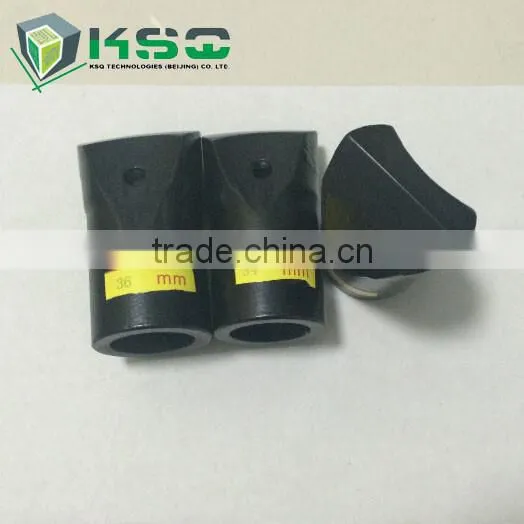

Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit

Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit thumbnail-1
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit thumbnail-2
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit thumbnail-3
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit thumbnail-4
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit thumbnail-5
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit thumbnail-6
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit photo-1
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit photo-2
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit photo-3
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit photo-4
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit photo-5
Tungsten Carbide Drill Bit Tapered 28mm / Chisel Bit photo-6
US$ 5 - 200 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
drill bit tapered 28mm
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number drill bit tapered 28mm
Type Other, Drill Bit, drill bit tapered 28mm
Material Other, Tungsten Carbide, Tungsten carbide and high strength alloy steel
Use Other, Metal Drilling, Well drilling,mining drilling,ore drilling
Product Description

 Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

• Suitable for small hole range

• Widely used in Dimensional Stone Quarrying Industry

• Widely used in Underground Mining Industry

Tapered drilling tools Types

Diameter          (mm)

Taper Angle (Degree)

Skirt

Weight (kg)

Tapered chisel bits

26-80mm

7°,11°,12°

Normal, Length

0.15 - 0.45

Tapered cross bits

32-60mm

Normal, Length

0.18 - 0.7

Tapered button bits

30-55mm

Normal, Length

0.2 - 0.5
  tungsten carbide drill bit tapered 28mm / chisel bit
tungsten carbide drill bit tapered 28mm / chisel bit
tungsten carbide drill bit tapered 28mm / chisel bit
tungsten carbide drill bit tapered 28mm / chisel bit

Button bit and Insert types

Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions


Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions



Applications

• Underground mining

• Dimensional Stone Industry
• Tunneling,quarrying



 Feature

1.tapered cross bits connect with tapered drill rod for drilling holes

2.Stale and mature welding technology ensure good quality of bits

3.Accurate dimension of taper degree perfectly matches the rods

reliable and very cost-effective



Specification of tapered chisel bits



Part Number

Product Code and

Brief Description

Bit Diameter

(mm)

Bit Diameter

(inch)

Tip Size

(W x H, mm)

Weight

(kg)

4148300123

FC38-7D-23,

7° Taper Flat Chipways Chisel Bit

38

1 1/2

16 x 10

0.36

4148300124

FC40-7D-23,

7° Taper Flat Chipways Chisel Bit

40

1 4/7

16 x 10

0.38

4148300125

FC41-7D-23,

7° Taper Flat Chipways Chisel Bit

41

1 3/5

16 x 10

0.41

4148300126

FC42-7D-23,

7° Taper Flat Chipways Chisel Bit

42

1 2/3

16 x 10

0.43

4148300127

FC45-7D-23,

7° Taper Flat Chipways Chisel Bit

45

1 7/9

22 x 16 x 10

0.6

4148300128

FC46-7D-25,

7° Taper Flat Chipways Chisel Bit

46

1 4/5

22 x 16 x 10

0.61

4148300129

FC48-7D-25,

7° Taper Flat Chipways Chisel Bit

48

1 8/9

22 x 16 x 10

0.63

4148300130

FC50-7D-25,

7° Taper Flat Chipways Chisel Bit

50

2

22 x 16 x 10

0.65

4148300131

FC56-7D-25,

7° Taper Flat Chipways Chisel Bit

56

2 1/5

24 x 16 x 10

0.82

4148300132

FC60-7D-25,

7° Taper Flat Chipways Chisel Bit

60

2 1/3

26 x 16 x 10

0.91

4148300133

FC65-7D-25,

7° Taper Flat Chipways Chisel Bit

65

2 5/9

26 x 16 x 10

1.12

4148300134

FC80-7D-25,

7° Taper Flat Chipways Chisel Bit

80

3 1/7

36 x 16 x 10

1.4



Packaging & Shipping

   Packaging:Carton or Wooden Box



Our Services

 KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

 •Hazardous environment

 •Acts, regulations, and other government guidelines that has to be followed

 •Significant differences in the way people work, mostly due to physical constraints

 •Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour.

 •The best solution with the most reasonable cost is a significant driver.



tungsten carbide drill bit tapered 28mm / chisel bittungsten carbide drill bit tapered 28mm / chisel bit

Company Information

  KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
