Home > Tools & Hardware > Drilling Tools > Drill Bit > Flat Chipways Chisel Bit

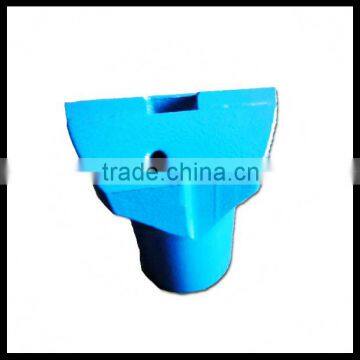

Flat Chipways Chisel Bit

Flat Chipways Chisel Bit thumbnail-1
Flat Chipways Chisel Bit thumbnail-2
Flat Chipways Chisel Bit photo-1
Flat Chipways Chisel Bit photo-2
US$ 5 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
MIROC
Model Number:
4148300088
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name MIROC
Model Number 4148300088
Material Tungsten Carbide
Use Metal Drilling

Tungsten Carbide Tapered Chisel Drill Bit Hardened Steel Drill Bits



Product Specification



Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: 7° Tapered Chisel Bit


Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


Why you choose tapered bit?

1.Tapered button bits connect with tapered drill rod perfectly for drilling holes
2.Stale and mature welding technology ensure high quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
reliable and very cost-effective

5.High grade tungsten carbide inserts
6 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry



Product Technical Reference



Part Number

Product Code and

Brief Description


Bit Diameter

(mm)

Bit Diameter

(inch)

Tip Size

(W x H, mm)

Weight

(kg)
4148300075 C26-7D-22, 7° Taper Chisel Bit 26 1     10 x 7 0.17
4148300076 C28-7D-22, 7° Taper Chisel Bit 28 1 1/9 10 x 7 0.18
4148300077 C30-7D-22-1, 7° Taper Chisel Bit 30 1 1/6 13.5 x 8 0.22
4148300078 C30-7D-22-2, 7° Taper Chisel Bit 30 1 1/6 13.5 x 8 0.22
4148300079 C32-7D-22-1, 7° Taper Chisel Bit 32 1 1/4 13.5 x 8 0.24
4148300080 C32-7D-22-2, 7° Taper Chisel Bit 32 1 1/4 13.5 x 8 0.24
4148300081 C34-7D-22-1, 7° Taper Chisel Bit 34 1 1/3 13.5 x 8 0.27
4148300082 C34-7D-22-2, 7° Taper Chisel Bit 34 1 1/3 13.5 x 8 0.27
4148300083 C36-7D-22-1, 7° Taper Chisel Bit 36 1 3/7 13.5 x 8 0.3
4148300084 C36-7D-22-2, 7° Taper Chisel Bit 36 1 3/7 13.5 x 8 0.3
4148300085 C38-7D-23-1, 7° Taper Chisel Bit 38 1 1/2 13.5 x 8 0.33
4148300086 C38-7D-23-2, 7° Taper Chisel Bit 38 1 1/2 13.5 x 8 0.33
4148300087 C38-7D-23-3, 7° Taper Chisel Bit 38 1 1/2 15 x 9 0.33
4148300088 C38-7D-23-4, 7° Taper Chisel Bit 38 1 1/2 15 x 9 0.33
4148300089 C40-7D-23-1, 7° Taper Chisel Bit 40 1 4/7 13.5 x 9.2 0.38
4148300090 C40-7D-23-2, 7° Taper Chisel Bit 40 1 4/7 13.5 x 9.2 0.38
4148300091 C40-7D-23-3, 7° Taper Chisel Bit 40 1 4/7 13.5 x 9.2 0.38
4148300092 C40-7D-23-4, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300093 C40-7D-23-5, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300094 C40-7D-23-6, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300095 C40-7D-23-7, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300096 C40-7D-23-8, 7° Taper Chisel Bit 40 1 4/7 15 x 9.8 0.38
4148300097 C42-7D-23-1, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300098 C42-7D-23-2, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300099 C42-7D-23-3, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300100 C42-7D-23-4, 7° Taper Chisel Bit 42 1 2/3 13.5 x 9.2 0.41
4148300101 C42-7D-23-5, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300102 C42-7D-23-6, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300103 C42-7D-23-7, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300104 C42-7D-23-8, 7° Taper Chisel Bit 42 1 2/3 15 x 9.8 0.41
4148300105 C43-7D-23-1, 7° Taper Chisel Bit 43 1 2/3 13.5 x 9.2 0.42
4148300106 C43-7D-23-2, 7° Taper Chisel Bit 43 1 2/3 13.5 x 9.2 0.42
4148300107 C43-7D-23-3, 7° Taper Chisel Bit 43 1 2/3 15 x 9.8 0.42
4148300108 C43-7D-23-4, 7° Taper Chisel Bit 43 1 2/3 15 x 9.8 0.42
