China12 Ton New Generation Of Crane Truck
- 150 Piece / Pieces per Month
- Qingdao Port Tianjin port Lianyungang port Shanghai port
- T/T L/C Credit Card PayPal
- Factory Price of the 100 Ton Used Crane Truck Sany Stc1000 Second Hand Truck Mobile Crane
- 2019 Excellent condition for the used Mobile Truck Cranes 25T/50T/70T/90T/100T
- Used 50 ton China original X-CM-G QY50KA mobile truck crane, used crane QY50K-II truck 55 ton crane for sale
- China XCMG 50 tons hydraulic mobile 50t truck crane XCT50_M QY50KA QY55KC for sale
- Used Truck Crane used STC250S Mobile Crane with Good Performance used track crane
- Used Truck Crane 80 Tons Stc800s Original Made in China for the used Mobile Crane with Good Performance
Product Details
Condition: | New | Application: | Construction | Rated Loading Capacity: | 7.18 ton |
Rated Lifting Moment: | No | Max. Lifting Load: | 12 ton | Max. Lifting Height: | 15m |
Span: | 13.6m | Place of Origin: | Henan, China | Brand Name: | YUTONG |
Model Number: | YTZ5250JSQ21E | Certification: | ISO | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

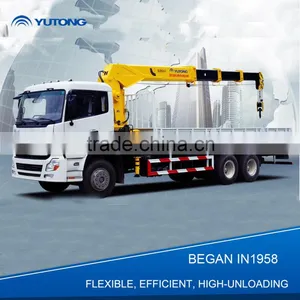

YUTONG 12 Ton New Generation Of Crane Truck
Main Technical Parameters
Declared external dimension (mm) | 11960×2500×3850 |
Actual external dimension (mm) | 11960×2500×3850 |
Chassis model | DFL1250A9 |
Size of compartment | 8200×2300×550 |
Curb weight of complete truck(kg) | Actual: 17825 (Declared: 17625) |
Rated load (Kg) | 7180 |
Maximum vehicle speed (km/h) | 90 |
Wheelbase (mm) | 5700+1300 |
Front suspension / rear suspension (mm) | 14603500 |
Approach angle/ departure angle (°) | 2010 |
Wheel track of front wheel (mm) | 1986 |
Wheel track of rear wheel (mm) | 1860 |
Crane model | SQ12SA3 |
Maximum hoisting load (kg) | 12000 |
Maximum working range (m) | 13.6 |
Maximum hoisting height (m) | 15 |
Engine model | C260 33 |
Rated power of engine (kw/hp) | 191/260 |
Drive type | 6×4 Rear-axle drive |
Rated speed of engine (rpm) | 2200 |
Maximum torque of engine (N.m) | 1025 |
Air intake way | Supercharging, inter-cooling |
Clutch | Dry type, diaphragm spring |
Transmission | 9JS119T-B |
Front axle (t) | 3000010-K0300 |
Rear axle (t) | 2400010-K0106 |
Front suspension | Leaf spring |
Rear suspension | Leaf spring |
Cab | Cab-over-engine, equipped with sleeping berth, turnover cab |
Tire | 10.00R20 |
Service brake | Dual-circuit air brake |
Parking brake | Braking by spring energy storage chamber |
Structural form of boom | Telescopic boom |
The sectional number of boom | 4 |
Span of supporting leg (m) | 5.75 |
Rotating range (º) | 360° full-rotating |
1. Hexagonal boom technology provides great centering performance and high flexural strength; the complete machine features high strength and low weight; the complete machine is made of high-strength special steel, greatly increasing hoisting capacity. |
2. Strong undercarriage and turntable; the turntable is 10% larger than those manufactured by other manufacturers, increasing the hoisting safety and capacity and extending the service life. |
3.The design of 360 ° full-rotating facilitates the usage and maximizes the working efficiency. |

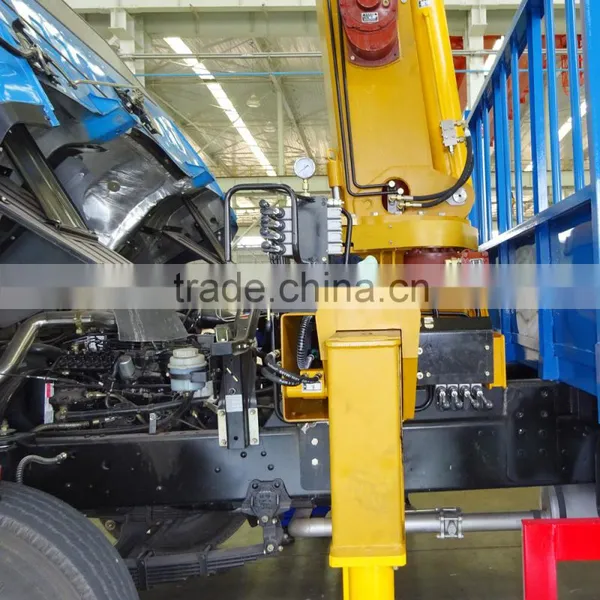

4. Truck with crane is easy to operate. Operating levers are installed at both sides of the crane frame, in order to facilitate operation by users at different sides; the operation of standard lever is extremely easy without operation fatigue. On each operating lever, visualized marks are posted for easy operation. |
5. Booms adopt synchronous retraction mode which features high speed, high efficiency and increases hoisting capacity and extends crane's service life. |
6. Large displacement oil pump is used. When the engine is running at idle, the operating device can run quickly, therefore saving energy and fuel, and creating greater value for the customer. |
7. Hydraulic system can be interlocked when the operator gets on and off the crane, in order to avoid misoperation and ensure safe and reliable operation. |
8.Optimized high-level sub-frame structure improves the strength of the frame. |
9.Through cooperation with chassis manufacturers such as Dongfeng, the chassis performance parameters are matched with the crane performance parameters more reasonably, greatly increasing the overall operation performance of the crane. |
service. We will offer the “12380”service:
1: After receiving the customer mobile, we will help
customer solve problem through removing the
resources of YUTONG service and reply the customer
clearly in one hours;
2: To improve the service quality all the time, in 2
working days of the end of on-sit service, we will pay
a return visit about the satisfaction of after sale
service;
3: To comprehensive systematically and
professionally maintenance and repair for the
customer product, we will have 3 times On-Site
Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours
after getting to on-sit. If the problem is not solve ,the
service engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving
order to product scrapping, YUTONG will provide
full reliance,seamless docking and service in the
period of product using.
