Tungsten Carbide Chisel Drill Bit With Drill Core Bit

Tungsten Carbide Chisel Drill Bit With Drill Core Bit thumbnail-1
Tungsten Carbide Chisel Drill Bit With Drill Core Bit thumbnail-2
Tungsten Carbide Chisel Drill Bit With Drill Core Bit thumbnail-3
Tungsten Carbide Chisel Drill Bit With Drill Core Bit thumbnail-4
Tungsten Carbide Chisel Drill Bit With Drill Core Bit thumbnail-5
Tungsten Carbide Chisel Drill Bit With Drill Core Bit thumbnail-6
Tungsten Carbide Chisel Drill Bit With Drill Core Bit photo-1

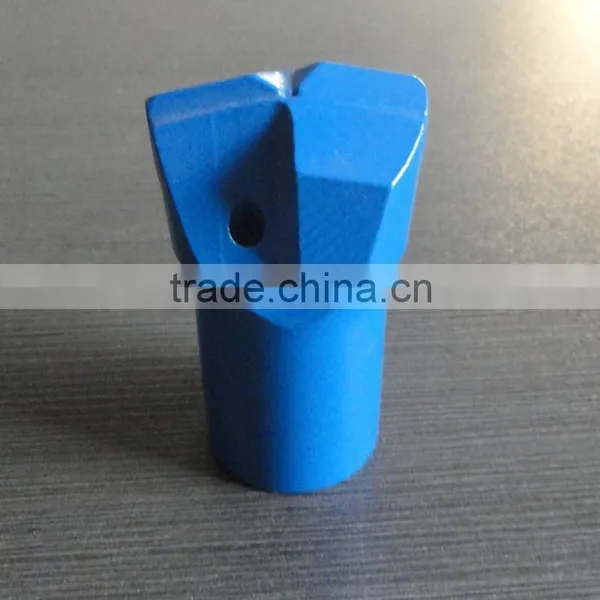

Tungsten Carbide Chisel Drill Bit With Drill Core Bit photo-2

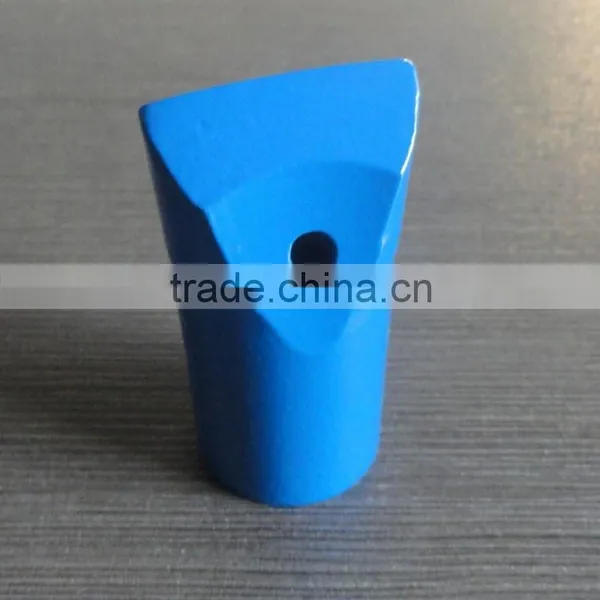

Tungsten Carbide Chisel Drill Bit With Drill Core Bit photo-3

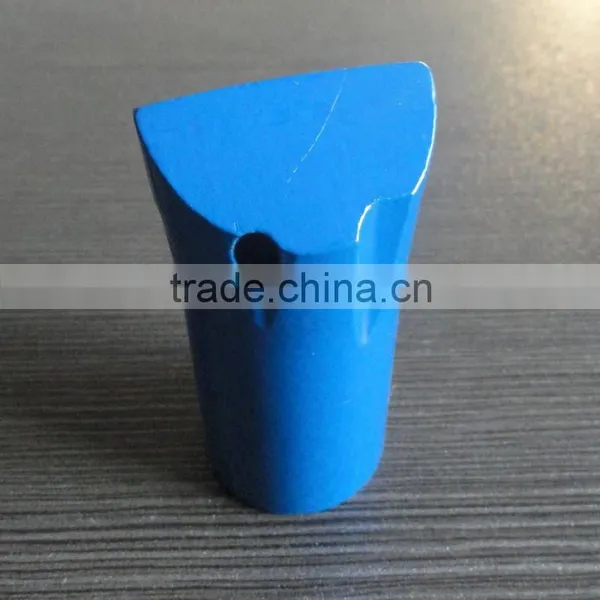

Tungsten Carbide Chisel Drill Bit With Drill Core Bit photo-4

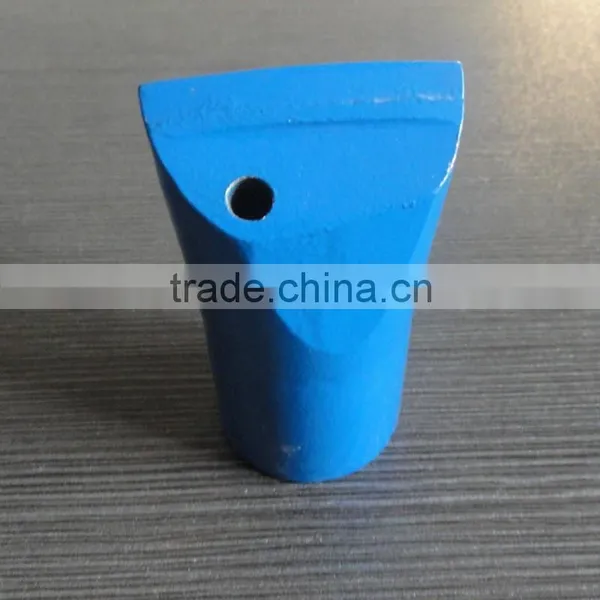

Tungsten Carbide Chisel Drill Bit With Drill Core Bit photo-5

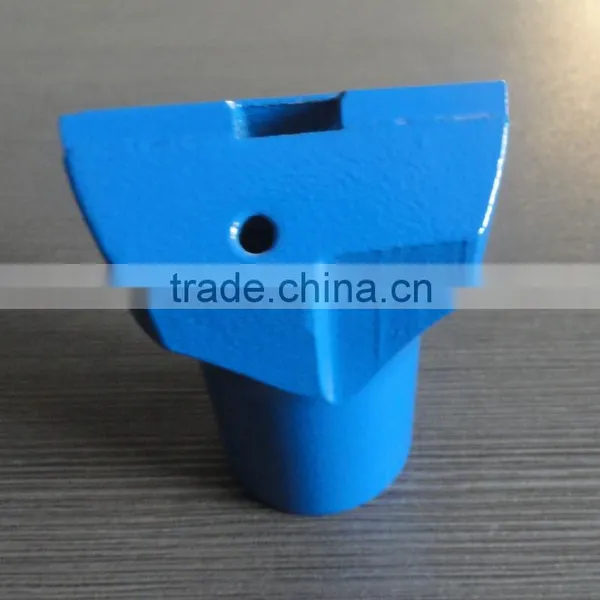

Tungsten Carbide Chisel Drill Bit With Drill Core Bit photo-6
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
FC38-7D-23 to FC80-7D-25
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number FC38-7D-23 to FC80-7D-25
Type Other, Tapered Chisel Bit
Material Tungsten Carbide
Use Metal Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description



Tungsten Carbide Chisel Coal Mine Drill Bit  Bit with  Drill Core Bit



Description


Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered chisel bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: 7° Tapered Flat Chipways Chisel Bit



Applications


• Dimensional Stone Industry
• Underground Mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification


Part Number

Product Code and

Brief Description

Bit Diameter

(mm)

Bit Diameter

(inch)

Tip Size

(W x H, mm)

Weight

(kg)
4148300123

FC38-7D-23,

7° Taper Flat Chipways Chisel Bit

 38 1 1/2 16 x 10 0.36
4148300124

FC40-7D-23,

7° Taper Flat Chipways Chisel Bit

 40 1 4/7 16 x 10 0.38
4148300125

FC41-7D-23,

7° Taper Flat Chipways Chisel Bit

 41 1 3/5 16 x 10 0.41
4148300126

FC42-7D-23,

7° Taper Flat Chipways Chisel Bit

 42 1 2/3 16 x 10 0.43
4148300127

FC45-7D-23,

7° Taper Flat Chipways Chisel Bit

 45 1 7/9 22 x 16 x 10 0.6
4148300128

FC46-7D-25,

7° Taper Flat Chipways Chisel Bit

 46 1 4/5 22 x 16 x 10 0.61
4148300129

FC48-7D-25,

7° Taper Flat Chipways Chisel Bit

 48 1 8/9 22 x 16 x 10 0.63
4148300130

FC50-7D-25,

7° Taper Flat Chipways Chisel Bit

 50 2     22 x 16 x 10 0.65
4148300131

FC56-7D-25,

7° Taper Flat Chipways Chisel Bit

 56 2 1/5 24 x 16 x 10 0.82
4148300132

FC60-7D-25,

7° Taper Flat Chipways Chisel Bit

 60 2 1/3 26 x 16 x 10 0.91
4148300133

FC65-7D-25,

7° Taper Flat Chipways Chisel Bit

 65 2 5/9 26 x 16 x 10 1.12
4148300134

FC80-7D-25,

7° Taper Flat Chipways Chisel Bit

 80 3 1/7 36 x 16 x 10 1.4





Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
