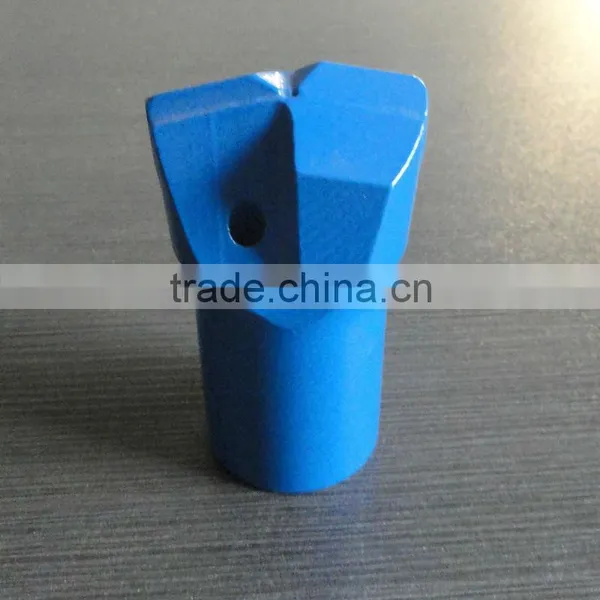

7 Degrees Tapered Chisel Drill Bit With CNC Tools

7 Degrees Tapered Chisel Drill Bit With CNC Tools thumbnail-1
7 Degrees Tapered Chisel Drill Bit With CNC Tools photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
OC20-4D-19 to OC42-7D-23
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number OC20-4D-19 to OC42-7D-23
Type Other, Tapered Chisel Bit
Material High Carbon Steel
Use Other, Coal Mining

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description

  7 degrees Tapered  Chisel Drill Bit with CNC Tools





Description


Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered chisel bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: 7° Tapered Oblique Chipways Chisel Bit



Applications


• Dimensional Stone Industry
• Underground Mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification



Part Number

Product Code and

Brief Description

Bit Diameter

(mm)

Bit Diameter

(inch)

Tip Size

(W x H, mm)

Weight

(kg)
4148300109

OC20-4D-19,

7° Taper Oblique Chipways Chisel Bit

 20  4/5 12 x 6 0.1
4148300110

OC22-4D-19,

7° Taper Oblique Chipways Chisel Bit


 22  6/7 12 x 6 0.12
4148300111

OC24-4D-19,

7° Taper Oblique Chipways Chisel Bit

 24 1     12 x 6 0.14
4148300112

OC26-4D-19,

7° Taper Oblique Chipways Chisel Bit

 26 1     12 x 6 0.16
4148300113

OC28-7D-19,

7° Taper Oblique Chipways Chisel Bit

 28 1 1/9 13 x 8 0.19
4148300114

OC30-7D-22,

7° Taper Oblique Chipways Chisel Bit

 30 1 1/6 13.5 x 8 0.22
4148300115

OC32-7D-22,

7° Taper Oblique Chipways Chisel Bit

 32 1 1/4 13.5 x 8 0.24
4148300116

OC33-7D-22,

7° Taper Oblique Chipways Chisel Bit

 33 1 2/7 13.5 x 8 0.25
4148300117

OC34-7D-22,

7° Taper Oblique Chipways Chisel Bit

 34 1 1/3 13.5 x 8 0.27
4148300118

OC36-7D-22,

7° Taper Oblique Chipways Chisel Bit

 36 1 3/7 13.5 x 8 0.29
4148300119

OC38-7D-23,

7° Taper Oblique Chipways Chisel Bit

 38 1 1/2 13.5 x 8 0.34
4148300120

OC40-7D-23,

7° Taper Oblique Chipways Chisel Bit

 40 1 4/7 13.5 x 9.2 0.4
4148300121

OC41-7D-23,

7° Taper Oblique Chipways Chisel Bit

 41 1 3/5 13.5 x 9.2 0.41
4148300122

OC42-7D-23,

7° Taper Oblique Chipways Chisel Bit

 42 1 2/3 13.5 x 9.2 0.43





Packaging & Shipping

  Packaging:Carton or Wooden Box

7 degrees Tapered Chisel Drill Bit with CNC Tools



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
