Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | China | |
| Brand Name | YUTONG | Model Number | YTR230D | |
| Usage | Ore | Voltage | 24V | |
| Power(W) | 230(KW) | Dimension(L*W*H) | 16070*3000*3590(transportation) | |
| Weight | 72t | Certification | the European Union CE certification | |
| Warranty | 12 mouths/2000hours | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

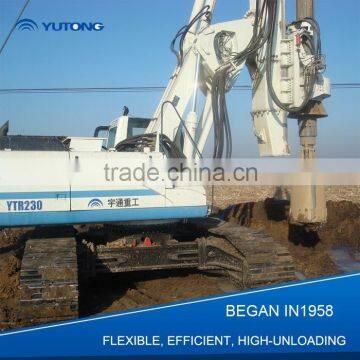

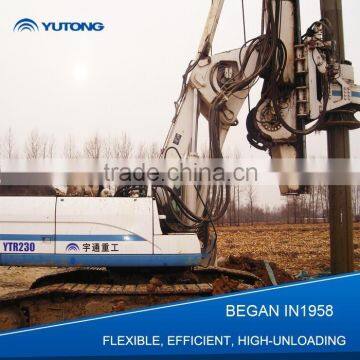

YUTONG Professional Energy Conservation Rotary Table Drilling Rig For Sale
Maximum drilling diameter of YTR230D drilling rig | mm | 2000 | |
Drilling depth of YTR230D drilling rig | m | 52/68 | |
Engine of YTR230D drilling rig | Model | DE12TIA | |
Manufacturer | DOOSAN | ||
Configured power | kW | 230 | |
Power head of YTR230D drilling rig | Max. output torque | kN·m | 230 |
Drilling speed | r/min | 7~35 | |
Pressurized cylinder of YTR230D drilling rig | Maximum pressure | kN | 215 |
Maximum pull force | kN | 230 | |
Stroke of sledge | mm | 5330 | |
Main winch of drilling rig | Lifting force | kN | 240 |
Maximum line speed | m/min | 65 | |
Diameter of steel wire rope | mm | 28 | |
Placement | Rear-mounted | ||
Impact winch of drilling rig | Pull force (first floor) | kN | 100 |
Maximum line speed | m/min | 50 | |
Diameter of steel wire rope | mm | 26 | |
Mast f drilling rig | Forwards inclination | ° | 3 |
Sideward inclination | ° | ±3.5 | |
Chassis of YTR230D drilling rig | Width of crawler board | mm | 800 |
Towing force | KN | 410 | |
Overall chassis length (wheel track) | mm | 4950 | |
Overall dimension of YTR230D drilling rig | Equipment width under working state | mm | 4300 |
Equipment height under working state | mm | 22420 | |
Equipment length under transportation state | mm | 16070 | |
Equipment height under transportation state | mm | 3590 | |
Equipment width under transportation state | mm | 3000 (3 machines are surplus) 3300 | |
Weights of YTR230D drilling rig | Working state | t | 72 |
Transportation state | t | 60.8 | |
Specification of standard drill rod (drilling depth of 52m) | Machine-locked drill rod φ440-4X14.5m-200B | ||
Specification of longest machine-locked drill rod (drilling depth of 54m) | Machine-locked drill rod φ440-4X15m-200B | ||
Specification of longest friction drill rod (drilling depth of 68m) | Friction drill rod φ440-5X15m-200B | ||
Service after sale is based on the principle of service. We will offer the “12380”service: |
| 1: After receiving the customer mobile, we will help customer solve problem through removing the resources of YUTONG service and reply the customer clearly in one hours. |
| 2: To improve the service quality all the time, in 2 working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service. |
| 3: To comprehensive ,systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period. |
| 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit. |
| 0: To eliminate customer worries, from receiving order to product scrapping, YUTONG will provide full reliance,seamless docking and service in the period of product using. |
![]() |
![]() |
![]() |
Performance Characteristics of Drilling Rig
| 1. The chassis of drilling rig is jointly developed by Yutong and Korea Doosan. The machine adopts Germany MAN engine, which can save energy and fuel and provide high reliability. |
| 2.The impact winch of the drilling rig adopts free-fall reductor. It is difficult for the drill rig to drill hard rock. At this moment, impact winch can be used to hoist and lower the impact hammer to damage the rock, and then drilling bucket can be used to pick up the slag, so as to improve the efficiency of drilling into the rock. |
| 3. When the drill rig is drilling into pebble bed, impact winch can be used to impact and squeeze the pebble bed in order to form a protective wall. When the drill rig is drilling into backfill soil, impact winch can be used to impact and ram the soil in order to form a dense protective wall to prevent landslidesy. |
| 4. The usage of telescopic chassis not only can meet the conditions of transport, but also can make the width of the complete machine reach 4.3 m during working, so it enhances machine stability and construction safety . |
| 5. The machine of drilling rig adopts centralized lubrication, making maintenance and use become easy and improving the disassembly and maintainability of the drill . |
| 6. The drill rig is equipped with support leg, which can provide support when the impact winch is working, so as to reduce the shaking and ensure the stability of complete machinee. |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
