R38 Retrac Drilling Button Bit CNC Tool

R38 Retrac Drilling Button Bit CNC Tool thumbnail-1
R38 Retrac Drilling Button Bit CNC Tool photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R1064-R38-S to R1389-R38-S-2
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R1064-R38-S to R1389-R38-S-2
Type Other, Retrac Button Bit
Material High Carbon Steel
Use Metal Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description

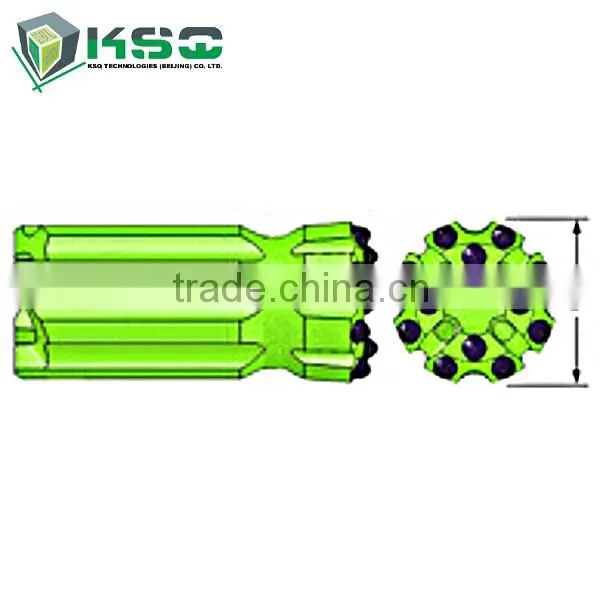

  R38 Retrac Button Bit with Spherical Buttons for Rock Drilling Tool

Description
This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55 Mpa to 165 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture. Recommended for eliminating hole deviation.

• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
• With Retrac Wings to help guide the bit in and out of the hole
• Effective in straight hole drilling


Color: Green,Blue or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R38 Retrac Button Bit Spherical Buttons

Applications
• Underground mining
• Tunneling

Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300665 R1064-R38-S, R38 Retrac Button Bit, Spherical Buttons 64 2 1/2 3x10, 1x10 6x11 35° 3 - 2.2
4148300666 R1370-R38-S, R38 Retrac Button Bit, Spherical Buttons 70 2 3/4 4x10, 1x10 8x11 35° 4 - 2.4
4148300667 R1376-R38-S-1, R38 Retrac Button Bit, Spherical Buttons 76 3 4x11, 1x11 8x11 40° 4 - 3.3
4148300668 R1376-R38-S-2, R38 Retrac Button Bit, Spherical Buttons 76 3 4x11, 1x11 8x12 35° 4 - 3.3
4148300669 R1389-R38-S-1, R38 Retrac Button Bit, Spherical Buttons 89 3 1/2 5x12 8x12 35° 2 - 4.8
4148300670 R1389-R38-S-2, R38 Retrac Button Bit, Spherical Buttons 89 3 1/2 4x13, 1x13 8x13 35° 4 - 4.8









Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
