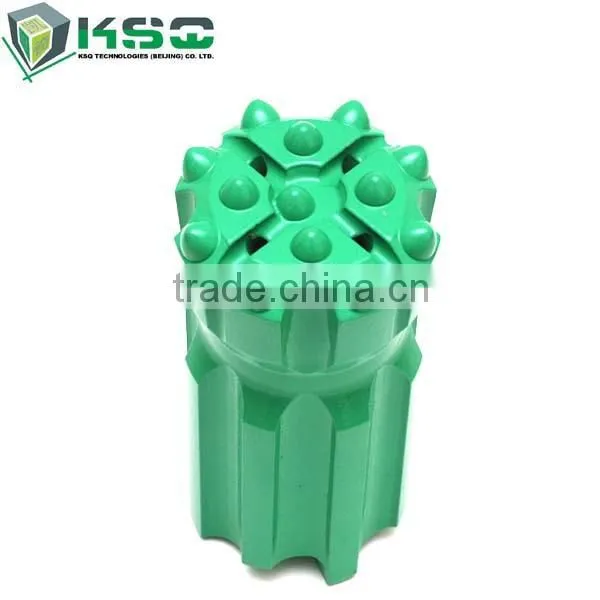

T45 Retrac Rock Drill Bit, Ballistic Buttons

T45 Retrac Rock Drill Bit, Ballistic Buttons thumbnail-1
T45 Retrac Rock Drill Bit, Ballistic Buttons photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R1070-T45-B to R1389-T45-B-2
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R1070-T45-B to R1389-T45-B-2
Type Other, Retrac Button Bit
Material Tungsten Carbide
Use Other, Coal mining

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN







Product Description



  • Description:
    • This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55MPa to 165MPa compressive strength)
    • Featuring ballistic tungsten carbide inserts that is known to have high penetration rate, but has weak configuration against carbide fracture
  • Applications:
    • Underground mining
    • Tunneling
  • Quick detail:
    • Widely used drifting and tunneling
    • Bit face design is ideal for soft to medium rock formations
    • With retract wings to help guide the bit in and out of the hole
    • Effective in straight hole drilling
    • Featuring ballistic tungsten carbide inserts for high penetration rate
  • Competitive advantages:
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
    • Part Number Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg) Product Code and Brief Description
      4148300851 70 2 3/4 3x11, 1x9 6x11 35° 3 - 2.5 R1070-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      4148300852 70 2 3/4 4x10, 1x10 8x11 35° 4 - 2.5 R1370-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      4148300853 76 3 4x11 8x11 40° 2 - 3.2 R1276-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      4148300854 76 3 4x11 8x12 35° 2 1 3.2 R1376-T45-B-1, T45 Retrac Button Bit, Ballistic Buttons
      4148300855 76 3 3x11, 1x11 6x13 35° 3 1 3.2 R1076-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      76 3 4x11, 1x11 8x11 35° 4 - 3.2 R1376-T45-B-2, T45 Retrac Button Bit, Ballistic Buttons
      4148300857 76 3 4x11, 1x11 8x12 35° 4 - 3.2 R1376-T45-B-3, T45 Retrac Button Bit, Ballistic Buttons
      4148300858 89 3 1/2 4x13 8x13 40° 2 - 5.4 R1289-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      4148300859 89 3 1/2 6x11 8x12 35° 2 - 5.4 R1489-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      4148300860 89 3 1/2 3x11, 2x11 8x13 35° 3 1 5.4 R1189-T45-B, T45 Retrac Button Bit, Ballistic Buttons
      4148300861 89 3 1/2 4x11, 1x11 8x12 35° 4 - 5.4 R1389-T45-B-1, T45 Retrac Button Bit, Ballistic Buttons
      4148300862 89 3 1/2 4x13, 1x13 8x13 35° 4 - 5.4 R1389-T45-B-2, T45 Retrac Button Bit, Ballistic Buttons








Packaging & Shipping

  Packaging:Carton or Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
  • T45 Retrac Rock Drill Bit, Ballistic Buttons





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.

T45 Retrac Rock Drill Bit, Ballistic Buttons
