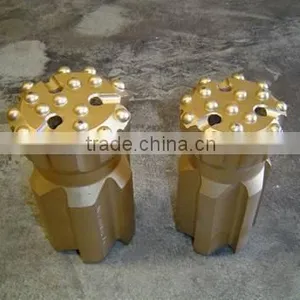

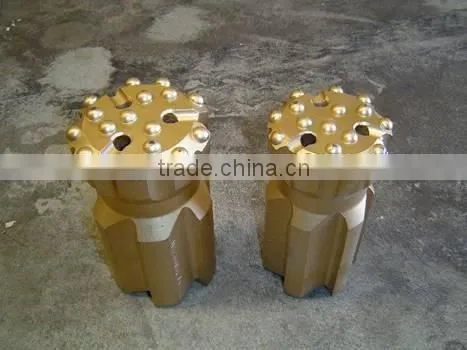

Spherical Buttons R32 Retrac Drill Bit CNC

Spherical Buttons R32 Retrac Drill Bit CNC thumbnail-1
Spherical Buttons R32 Retrac Drill Bit CNC photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
R945-R32-S to R951-R32-S
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number R945-R32-S to R951-R32-S
Type Other, Retrac Button Bit
Material High Carbon Steel
Use Masonry Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description



  • Description
    • This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55MPa to 165MPa compressive strength)
    • Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
    • Recommended for eliminating hole deviation
  • Applications:
    • Underground mining
    • Tunneling
  • Quick detail:
    • Widely used drifting and tunneling
    • Bit face design is ideal for soft to medium rock formations
    • With retrac wings to help guide the bit in and out of the hole
    • Effective in straight hole drilling
  • Competitive advantages:
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
    • Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
      4148300521 R945-R32-S, R32 Retrac Button Bit, Spherical Buttons 45 1 7/9 3x8 6x9 40° 3 - 1.1
      4148300522 R948-R32-S, R32 Retrac Button Bit, Spherical Buttons 48 1 8/9 3x9 6x10 30° 3 - 1.2
      4148300523 R951-R32-S, R32 Retrac Button Bit, Spherical Buttons 51 2 3x9 6x10 30° 3 - 1.4
      4148300524 R948-R32-S, R32 Retrac Button Bit, Spherical Buttons 64 2 1/2 3x10, 1x10 6x11 35° 3 - 2.2
      4148300525 R1264-R32-S, R32 Retrac Button Bit, Spherical Buttons 64 2 1/2 4x10 8x10 40° 2 - 2.2
      4148300526 R1376-R32-S, R32 Retrac Button Bit, Spherical Buttons 76 3  4x11, 1x11 8x11 35° 4 1 3.5
      4148300609 R948-R32-S, R32 Retrac Button Bit, Spherical Buttons 48 1 8/9 3x8 6x10 40° 3 - 1.2
      4148300610 R951-R32-S, R32 Retrac Button Bit, Spherical Buttons 51 2  3x9 6x10 35° 3 - 1.4
