Chisel Bit Integral Drill Rod For Rock Drilling , Shank 22 mm x 108 mm
- Tianjin Port Huangpu Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
24 mm Chisel Bits shank 22mm x 108mm Integral Drilling Rods
-
Sizes of Integral Drill Rod For Small Hole Rock Drilling
-
Chisel Bit Type Integral Rod Hex 19 with Shank 19 mm x 108 mm
-
Chisel Bit Type Integral Rod Hex 22 with Shank 22 mm x 108 mm
-
KSQ Beijing Integral Rod with Hex22x108mm Shank For Mining
-
hot sale Integral drilling steel with hex22x108mm shank for quarry
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Integral Drill Rod | Type | Drill Pipe | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Other, Ore Mining, small hole drilling tools, surface mining and underground mining |
Product Description
Integral Drill Rod
Basic Information:
Product Name: | Integral Drill Rod |
Shank | Shank 19mm x108mm, Shank22x108mm |
Diameter | 29mm-41mm |
Length | 400mm-8000mm |
Material: | High strength alloy steel |
Type | Chisel bit integral rod, Plug hole integral rod |
Color | Black or based on customer requirements. |
MOQ: | No MOQ required for testing and trial order |
H22-Chisel Bit Integral Drill Steel
Shank 22 x108mm
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 800 | 2 5/8 | 34 | 3 | 4148300035 |
| 1600 | 5 1/4 | 33 | 5.2 | 4148300036 |
| 2400 | 7 7/8 | 32 | 8 | 4148300037 |
| 3200 | 10 1/2 | 31 | 10.2 | 4148300038 |
| 4000 | 13 1/8 | 30 | 12.9 | 4148300039 |
| 4800 | 15 3/4 | 29 | 15.1 | 4148300040 |
| 5600 | 18 3/8 | 28 | 17.6 | 4148300041 |
| 6400 | 21 | 27 | 20.1 | 4148300042 |
| 7200 | 23 5/8 | 26 | 22.5 | 4148300043 |
| 800 | 2 5/8 | 40 | 3 | 4148300044 |
| 1600 | 5 1/4 | 39 | 5.2 | 4148300045 |
| 2400 | 7 7/8 | 38 | 8 | 4148300046 |
| 3200 | 10 1/2 | 37 | 10.2 | 4148300047 |
| 4000 | 13 1/8 | 36 | 12.9 | 4148300048 |
| 4800 | 15 3/4 | 35 | 15.1 | 4148300049 |
| 5600 | 18 3/8 | 34 | 17.6 | 4148300050 |
| 6400 | 21 | 33 | 20.1 | 4148300051 |
| 7200 | 23 5/8 | 32 | 22.5 | 4148300052 |
| 8000 | 26 1/4 | 31 | 25 | 4148300053 |
| 400 | 1 1/3 | 34 | 1.7 | 4148300054 |
| 800 | 2 5/8 | 33 | 3 | 4148300055 |
| 1200 | 4 | 32 | 4.1 | 4148300056 |
| 1600 | 5 1/4 | 31 | 5.2 | 4148300057 |
| 2000 | 6 5/9 | 30 | 6.7 | 4148300058 |
| 600 | 2 | 41 | 2.4 | 4148300059 |
| 1200 | 4 | 40 | 4.3 | 4148300060 |
| 1800 | 6 | 39 | 6.2 | 4148300061 |
| 2400 | 7 7/8 | 38 | 8 | 4148300062 |
| 400 | 1 1/3 | 41 | 1.7 | 4148300063 |
| 800 | 2 5/8 | 29 | 3 | 4148300064 |
| 800 | 2 5/8 | 38 | 3.1 | 4148300065 |
| 1200 | 4 | 39 | 4.3 | 4148300066 |
| 1600 | 5 1/4 | 36 | 5.2 | 4148300067 |
| 1800 | 6 | 36 | 6 | 4148300068 |
| 2000 | 6 5/9 | 32 | 6.7 | 4148300069 |
| 2400 | 7 7/8 | 27 | 8 | 4148300070 |
| 3200 | 10 1/2 | 27 | 10.2 | 4148300071 |
| 3200 | 10 1/2 | 32 | 10.3 | 4148300072 |
| 6400 | 21 | 30 | 20.1 | 4148300073 |
| 8000 | 26 1/4 | 26 | 25 | 4148300074 |

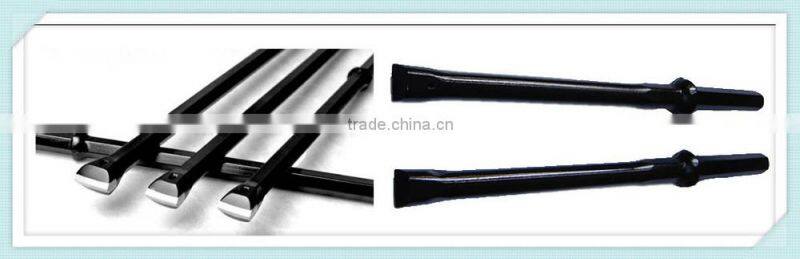

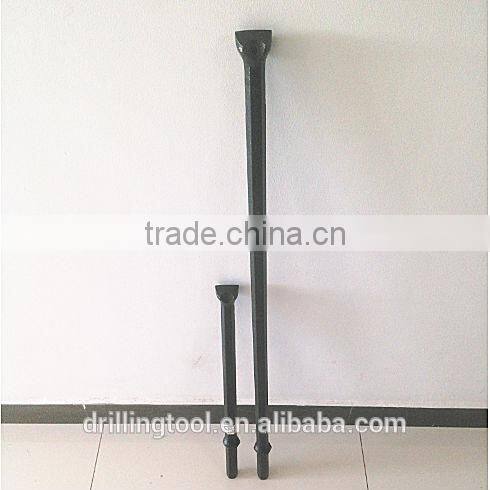

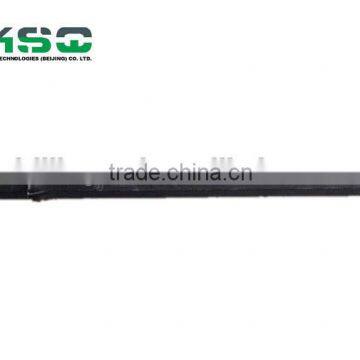

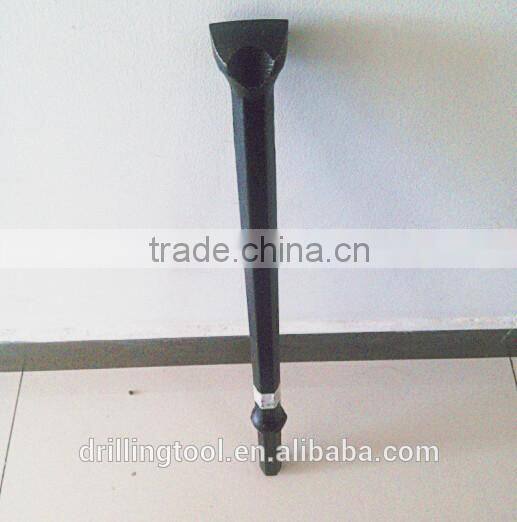

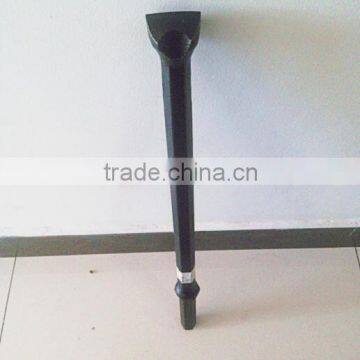

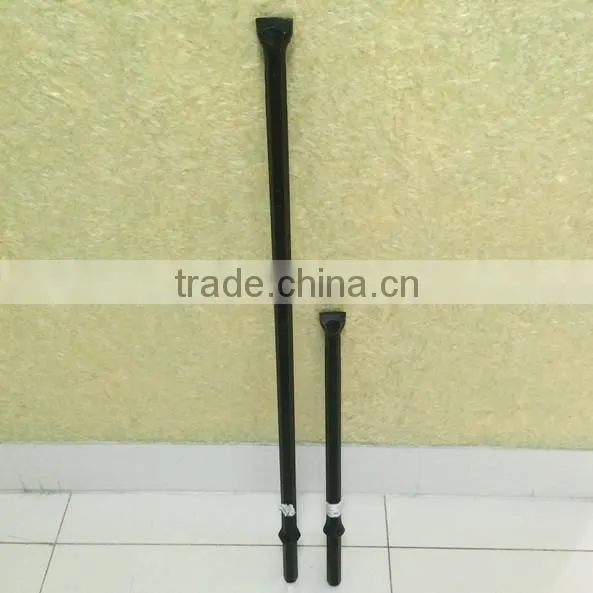

Product Pictures:
Applications:
• small hole drilling
Production Process:
1. Raw material 2. CNC milling and proprietary heat treatment process 3. Inspection 4. Package.
Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
(1) Kindly please inform us the shank, Bit diameter and effective length or inform KSQ Part Number
(2) Shank Type:
Shank 19mm x 108mm
Shank 22mm x108mm
(3) Effective Length:
(4)Can design and manufacture the personalized products to meet your specical application.
Packaging & Shipping
1. Carton or wooden box
2. Package pictures

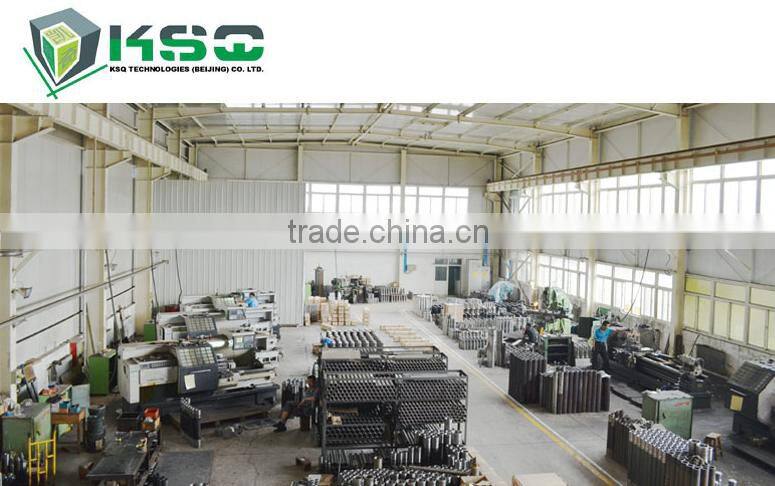

KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
Please feel free to contact us at any time, we will be always here for supporting you!
