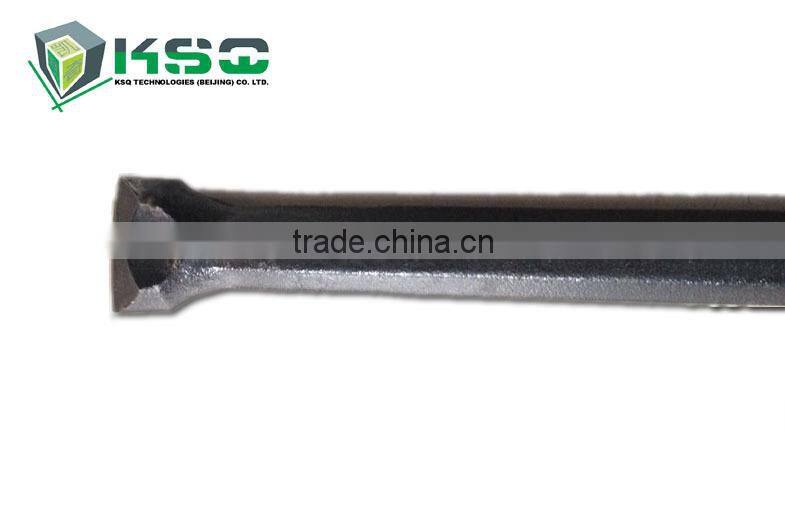

Sizes of Integral Drill Rod For Small Hole Rock Drilling
Integral drill rod or integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling.
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 19mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.
Basic Information:
Product Name: |
Integral Drill Rod |
Shank |
Shank 19mm x108mm, Shank22x108mm |
Diameter |
29mm-41mm |
Length |
400mm-8000mm |
Material: |
High strength alloy steel |
Type |
Chisel bit integral rod, Plug hole integral rod |
Color |
Black or based on customer requirements. |
MOQ: |
No MOQ required for testing and trial order |
H22-Chisel Bit Integral Drill Steel - Shank 22 x108mm
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 800 | 2 5/8 | 34 | 3 | 4148300035 |
| 1600 | 5 1/4 | 33 | 5.2 | 4148300036 |
| 2400 | 7 7/8 | 32 | 8 | 4148300037 |
| 3200 | 10 1/2 | 31 | 10.2 | 4148300038 |
| 4000 | 13 1/8 | 30 | 12.9 | 4148300039 |
| 4800 | 15 3/4 | 29 | 15.1 | 4148300040 |
| 5600 | 18 3/8 | 28 | 17.6 | 4148300041 |
| 6400 | 21 | 27 | 20.1 | 4148300042 |
| 7200 | 23 5/8 | 26 | 22.5 | 4148300043 |
| 800 | 2 5/8 | 40 | 3 | 4148300044 |
| 1600 | 5 1/4 | 39 | 5.2 | 4148300045 |
| 2400 | 7 7/8 | 38 | 8 | 4148300046 |
| 3200 | 10 1/2 | 37 | 10.2 | 4148300047 |
| 4000 | 13 1/8 | 36 | 12.9 | 4148300048 |
| 4800 | 15 3/4 | 35 | 15.1 | 4148300049 |
| 5600 | 18 3/8 | 34 | 17.6 | 4148300050 |
| 6400 | 21 | 33 | 20.1 | 4148300051 |
| 7200 | 23 5/8 | 32 | 22.5 | 4148300052 |
| 8000 | 26 1/4 | 31 | 25 | 4148300053 |
| 400 | 1 1/3 | 34 | 1.7 | 4148300054 |
| 800 | 2 5/8 | 33 | 3 | 4148300055 |
| 1200 | 4 | 32 | 4.1 | 4148300056 |
| 1600 | 5 1/4 | 31 | 5.2 | 4148300057 |
| 2000 | 6 5/9 | 30 | 6.7 | 4148300058 |
| 600 | 2 | 41 | 2.4 | 4148300059 |
| 1200 | 4 | 40 | 4.3 | 4148300060 |
| 1800 | 6 | 39 | 6.2 | 4148300061 |
| 2400 | 7 7/8 | 38 | 8 | 4148300062 |
| 400 | 1 1/3 | 41 | 1.7 | 4148300063 |
| 800 | 2 5/8 | 29 | 3 | 4148300064 |
| 800 | 2 5/8 | 38 | 3.1 | 4148300065 |
| 1200 | 4 | 39 | 4.3 | 4148300066 |
| 1600 | 5 1/4 | 36 | 5.2 | 4148300067 |
| 1800 | 6 | 36 | 6 | 4148300068 |
| 2000 | 6 5/9 | 32 | 6.7 | 4148300069 |
| 2400 | 7 7/8 | 27 | 8 | 4148300070 |
| 3200 | 10 1/2 | 27 | 10.2 | 4148300071 |
| 3200 | 10 1/2 | 32 | 10.3 | 4148300072 |
| 6400 | 21 | 30 | 20.1 | 4148300073 |
| 8000 | 26 1/4 | 26 | 25 |
4148300074 |

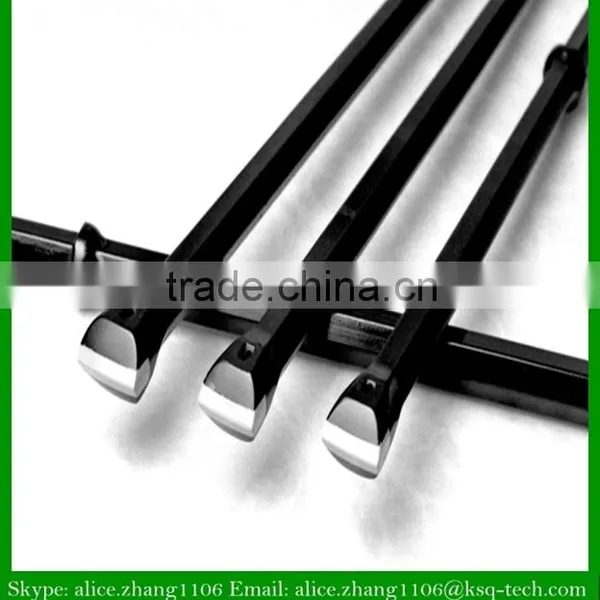

Pictures
Related Rock Drilling Tools
(1) Integral Drill Rod– Chisel Bit Integral Rod and Plug Hole Integral Drill Steel
(2) Tapered Rock Drill Tools - Chisel Bit, Cross Bit, Taper Rod of Taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - Button Bit, Extension Rod, Coupling of R25 R28, R32,R38,T38,T45,T51
(4) Shank Adapters (Striking Bars) - Equivalent to Atlas Copco, Sandvik, Furukawa etc.
(5)Down-the-hole (DTH) Bits& Hammers
