Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.26-29mm

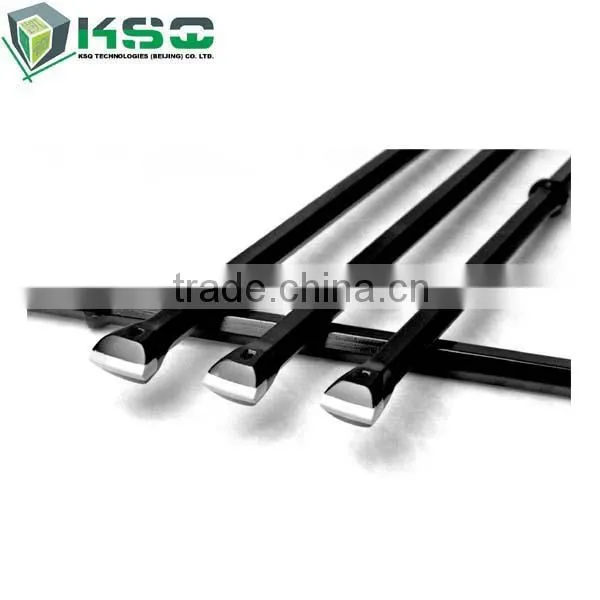

Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.26-29mm
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
IH19-C29-400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.23-34mmNegotiableMOQ: 20 Pieces -
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.23-29mmNegotiableMOQ: 20 Pieces
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.25-34mmNegotiableMOQ: 20 Pieces
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mmNegotiableMOQ: 20 Pieces
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.29-41mmNegotiableMOQ: 20 Pieces
Place of Origin
Shandong, China
Brand Name
MIROC
Model Number
IH19-C29-400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm
Type
Other, Chisel Bit Integral Rod
Machine Type
Drilling Tool
Material
Carbide
Processing Type
Casting
Use
Coal Mining
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb
Description
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
Application
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Specification
<
| Part Number | Product Code and Brief Description | Length (mm) | Length (ft/inch) | Bit Diameter (mm) | Weight (kg) |
| 4148300000 | IH19-C29-400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 400 | 1 1/3 | 29 | 1.3 |
| 4148300001 | IH19-C29-500, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 500 | 1 2/3 | 29 | 1.5 |
| 4148300002 | IH19-C28-800, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 800 | 2 5/8 | 28 | 2.2 |
| 4148300003 | IH19-C28-1000, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 1000 | 3 2/7 | 28 | 2.6 |
| 4148300004 | IH19-C27-1200, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 1200 | 4 | 27 | 3 |
| 4148300005 | IH19-C27-1600, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 1600 | 5 1/4 | 27 | 3.9 |
| 4148300006 | IH19-C26-2400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm | 2400 | 7 7/8 | 26 | 5.7 |
