Specifications

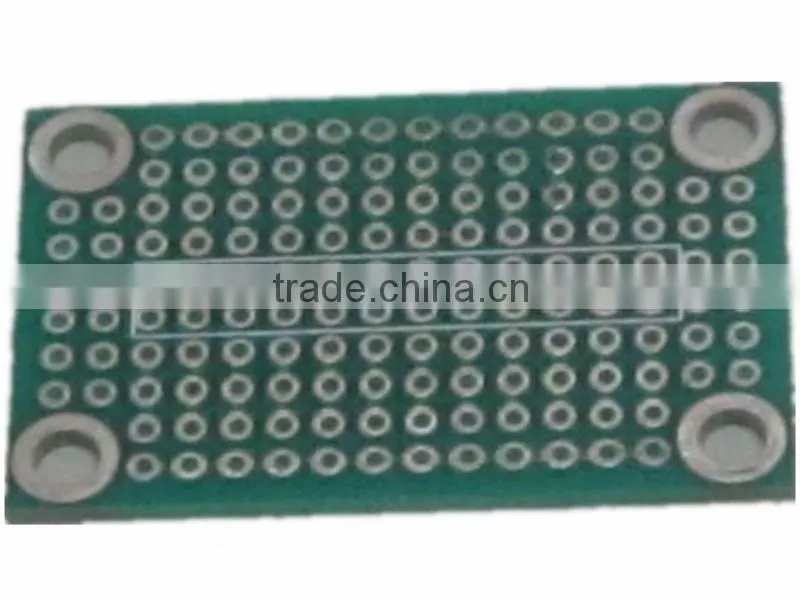

PCB samples PCB prototype PCB mass productionFR4 94-v0 6-Layer 3.6MM thickness 2.5OZ cu
Green / Red / Yellow color
ENIG
PCB samples PCB prototype PCB mass production
Basic electronic parameters:
1. Manufacturer: RayPCB
2. Original place: Shenzhen China
3. Board material: Fr4 94-v0
4. Tg: 120 °C
5. Board thickness: 3.6MM
6. Layer number: 6L
7. Finishing copper size: 2.5OZ
8. Min line width / track: 0.3MM
9. Min line space / clearance: 0.3MM
10: Min hole / via diameter: 0.2MM
11: Via in plated pad over / VIPPO: No
12. Impedance control: No
13. Soldermask: Green / Red / Yellow
14 Silkscreen: White
15. Surface treatment technology: ENIG / Ni-Au
16: Single size: 245*245MM
Panel size: According to UR GERBER design requirements
17. More special requirements: Need YOUR confirmation
RayMing specializes in the PCB manufacturing of PCB samples PCB prototype PCB mass production.
Main business: Single-sided, double sided and multilayer printed circuit boards(up to 40L), an some high end boards, e.g. high-frequency circuit boards, HDL boards with Buried & Blind Via PCB, Single-sided and double-sided Alumium boards.
Our products are widely use in power supplies, computers, comunications, optoelectronics, industrial instruments, engineer control, automobile and other consumer electronics.
Also, one-stop business of manufacturing PCB+PCB assembling+helping to purchase components, we'll serve for you.
We equipped with advance Processing Equipments and Measurement Techniques, such as: High Pecision CNC Drilling Machines, AOI Tester, German Flying Probe Testers and other advanced equipments, and High Frequency Board manufacturing, Special Impedance Control, Buried & Blind Via manufacturing, Flying Probe Test techniques.
Our customers mainly focus on North and South Americas; Europe; Australiasia; Russian and so on.
Any queries, just contact sales08 Nicole-----raypcb08(Skype)
