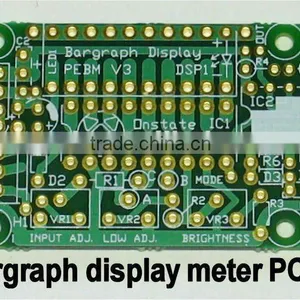

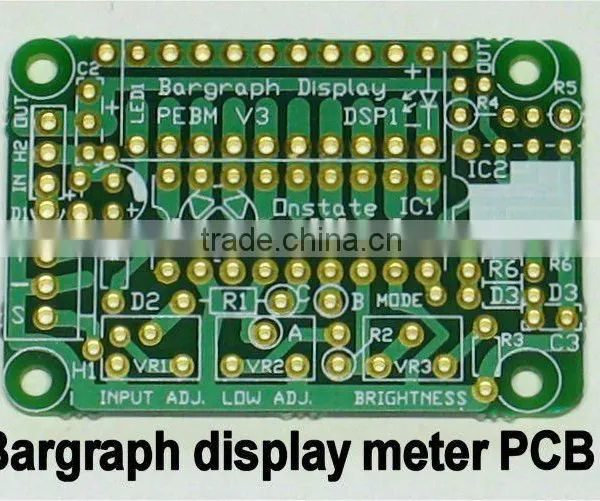

Display LED PCB with FR4 Tg140

Specifications

Display LED PCB with FR4 Tg140

Basic electronic parameters:

1. Manufacturer: RayPCB

2. Original place: Shenzhen China

3. Board material: Fr4 94-v0

4. Tg: 120 °C

5. Board thickness: 1.6MM

6. Layer number: 2L

7. Finishing copper size: 1OZ

8. Min line width / track: 0.3MM

9. Min line space / clearance: 0.3MM

10: Min hole / via diameter: 0.2MM

11: Via in plated pad over / VIPPO: No

12. Impedance control: No

13. Soldermask: Green

14 Silkscreen: White

15. Surface treatment technology: Immersion Gold

16: Single size: 265*227MM

      Panel size: According to UR GERBER design requirements

17. More special requirements: Need YOUR confirmation

RayMing specializes in the PCB manufacturing of Display LED PCB with FR4 Tg140.

Main business:  Single-sided, double sided and multilayer printed circuit boards(up to 40L), an some high end boards, e.g. high-frequency circuit boards, HDL boards with Buried & Blind Via PCB, Single-sided and double-sided Alumium boards.

Our products are widely use in power supplies, computers, comunications, optoelectronics, industrial instruments, engineer control, automobile and other consumer electronics.

Also, one-stop business of manufacturing PCB+PCB assembling+helping to purchase components, we'll serve for you.

We equipped with advance Processing Equipments and Measurement Techniques, such as: High Pecision CNC Drilling Machines, AOI Tester, German Flying Probe Testers and other advanced equipments, and High Frequency Board manufacturing, Special Impedance Control, Buried & Blind Via manufacturing, Flying Probe Test techniques.

Our customers mainly focus on North and South Americas;  Europe; Australiasia; Russian and so on.

Any queries, just contact sales09 wendy-----raypcb09(Skype)
