Home > Transportation > Elevator & Funicular Car > Passenger Elevator > Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall

Name: Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall
Brand: Intentec
SKU: 119044925
Availability: InStock

Shenyang Amte Import & Export LLC

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall thumbnail-1

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall thumbnail-2

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall thumbnail-3

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall thumbnail-4

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall photo-1

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall photo-2

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall photo-3

Commercial/hotel/passenger Elevator for 6 Person With Golden Cabin Wall photo-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

Intentec

Model Number:

IEP-002

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name Intentec

Model Number IEP-002

Usage Other, Residential Elevators, commercial/hotel/passenger elevator

Drive Type AC

Elevator Type Passenger Elevators

commercial/hotel/passenger elevator for 6 person with golden cabin wall

Product Description

Name	commercial/hotel/passenger elevator for 6 person with golden cabin wal
Capacity	450-1600kg
Speed	1.00 - 2.5m/s
Function	commercial/hotel/passenger elevator
Package	wooden case
Delivery	within 45 days
Payment	30% T/T Deposit in advance,the balance paid against the B/L copy

commercial/hotel/passenger elevator for 6 person with golden cabin wall

Passenger Elevator Residential Elevator Commerical Elevator specification

No.	Rated Load(KG)	Rated Speed (m/min)	Travel Height (mm)	Overhead Height (mm)	Pit Depth(mm)	Maximum number of stops	Maximum floor to floor distance(mm)
1	450	60	Travel≤max. 60	4200	1400	16	2700
2	550-700	60	Travel≤max. 60	4200	1400	16
3		90	Travel≤max. 100	4450	1600	32
4		105	Travel≤max. 100	4600	1700	32
5	750-1050	60	Travel≤max. 60	4200	1400	16
6		90	Travel≤max. 100	4450	1600	32
7		105	Travel≤max. 100	4600	1700	32
8		120	Travel≤max. 140	5100	2050	40
9		150	Travel≤max. 140	5300	2300	40
10	1150-1350	60	Travel≤max. 60	4200	1400	16
11		90	Travel≤max. 100	4450	1600	32
12		105	Travel≤max. 100	4600	1700	32
13		120	Travel≤max. 140	5100	2050	40
14		150	Travel≤max. 140	5300	2300	40
15	1600	60	Travel≤max. 60	4850	1750	16
16		90	Travel≤max. 100	5050	1850	32
17		105	Travel≤max. 100	5100	1950	32
18		120	Travel≤max. 140	5200	2250	40
19		150	Travel≤max. 140	5300	2600	40

Advantages

commercial/hotel/passenger elevator for 6 person with golden cabin wall

1.ENERGY CONSERVATION

The gear-less traction machine with Permanent Magnet-type synchronous motor(PM motor) conserves energy by improving power efficiency.

The PM motor is also used in the drive unit for car doors and a direct drive method is employed to realize
improved energy efficiency and smoother door opening and closing motions.

commercial/hotel/passenger elevator for 6 person with golden cabin wall

2.ENERGY SAVING FEATURES

Automatic dimming of indication light for commercial/hotel/passenger elevator.

Automatic turn-off of car lighting and fan for commercial/hotel/passenger elevator.

Hall and car buttons using LED light for commercial/hotel/passenger elevator.

Hall lanterns using LED light be for commercial/hotel/passenger elevator.

Regenerative system(Optional) for commercial/hotel/passenger elevator.

Energy saving operation control for commercial/hotel/passenger elevator.

commercial/hotel/passenger elevator for 6 person with golden cabin wall

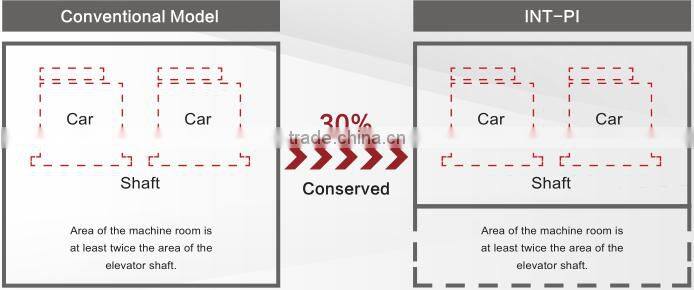

3.SPACE SAVING DESIGN

The INT-PE elevator requires a smaller machine room size through the use of slimmer traction machine, control panel and machine room equipment. This allows flexibility in building design through maximizing the usage of building space.

commercial/hotel/passenger elevator for 6 person with golden cabin wall

4. THE HUMAN INTERFACE

The INT-PE elevator provides a comfortable ride and appeals to different aspects of the human sense, interface, sight and hearing - by the integration of tactile button, LCD display, voice synthesizer and multi-beam door sensor.
