Home > Transportation > Elevator & Funicular Car > Passenger Elevator > Hospital/Goods Elevator Without Machine Room Elevator Low Cost

Hospital/Goods Elevator Without Machine Room Elevator Low Cost

Name: Hospital/Goods Elevator Without Machine Room Elevator Low Cost
Brand: Intentec
SKU: 119044953
Availability: InStock

Hospital/Goods Elevator Without Machine Room Elevator Low Cost thumbnail-1

Hospital/Goods Elevator Without Machine Room Elevator Low Cost photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

Intentec

Model Number:

ICP-002

Contact Supplier Request Quote Chat Now

Shenyang Amte Import & Export LLC

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name Intentec

Model Number ICP-002

Usage Other, Residential Elevators, commercial/hotel/passenger elevator

Drive Type AC

Elevator Type Passenger Elevators

Hospital/Goods Elevator without machine room elevator low cost

Product Description

Name	Hospital/Goods Elevator without machine room elevator low cost
Capacity	450-1600kg
Speed	1.00 - 2.5m/s
Function	commercial/hotel/passenger elevator
Package	wooden case
Delivery	within 45 days
Payment	30% T/T Deposit in advance,the balance paid against the B/L copy

Hospital/Goods Elevator without machine room elevator low cost

Passenger Elevator Residential Elevator Commerical Elevator specification

No.	Rated Load(KG)	Rated Speed (m/min)	Travel Height (mm)	Overhead Height (mm)	Pit Depth(mm)	Maximum number of stops	Maximum floor to floor distance(mm)
1	450	60	Travel≤max. 60	4200	1400	16	2700
2	550-700	60	Travel≤max. 60	4200	1400	16
3		90	Travel≤max. 100	4450	1600	32
4		105	Travel≤max. 100	4600	1700	32
5	750-1050	60	Travel≤max. 60	4200	1400	16
6		90	Travel≤max. 100	4450	1600	32
7		105	Travel≤max. 100	4600	1700	32
8		120	Travel≤max. 140	5100	2050	40
9		150	Travel≤max. 140	5300	2300	40
10	1150-1350	60	Travel≤max. 60	4200	1400	16
11		90	Travel≤max. 100	4450	1600	32
12		105	Travel≤max. 100	4600	1700	32
13		120	Travel≤max. 140	5100	2050	40
14		150	Travel≤max. 140	5300	2300	40
15	1600	60	Travel≤max. 60	4850	1750	16
16		90	Travel≤max. 100	5050	1850	32
17		105	Travel≤max. 100	5100	1950	32
18		120	Travel≤max. 140	5200	2250	40
19		150	Travel≤max. 140	5300	2600	40

Advantages

Hospital/Goods Elevator without machine room elevator low cost

1.ENERGY CONSERVATION

The gear-less traction machine with Permanent Magnet-type synchronous motor(PM motor) conserves energy by improving power efficiency.

The PM motor is also used in the drive unit for car doors and a direct drive method is employed to realize
improved energy efficiency and smoother door opening and closing motions.

Hospital/Goods Elevator without machine room elevator low cost

2.ENERGY SAVING FEATURES

Automatic dimming of indication light for elevator.

Automatic turn-off of car lighting and fan for elevator.

Hall and car buttons using LED light for elevator.

Hall lanterns using LED light be for elevator.

Regenerative system(Optional) for elevator.

Energy saving operation control for elevator.

Hospital/Goods Elevator without machine room elevator low cost

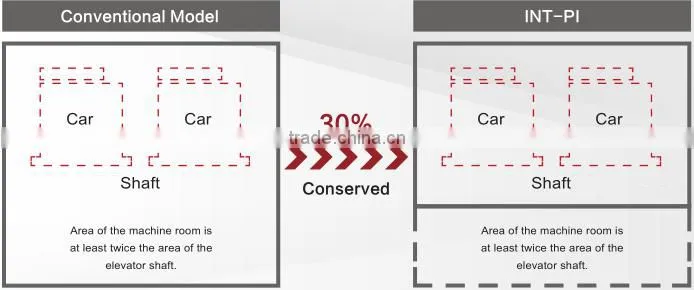

3.SPACE SAVING DESIGN

The INT-PE elevator requires a smaller machine room size through the use of slimmer traction machine, control panel and machine room equipment. This allows flexibility in building design through maximizing the usage of building space.

Hospital/Goods Elevator without machine room elevator low cost

4. THE HUMAN INTERFACE

The INT-PE elevator provides a comfortable ride and appeals to different aspects of the human sense, interface, sight and hearing - by the integration of tactile button, LCD display, voice synthesizer and multi-beam door sensor.
