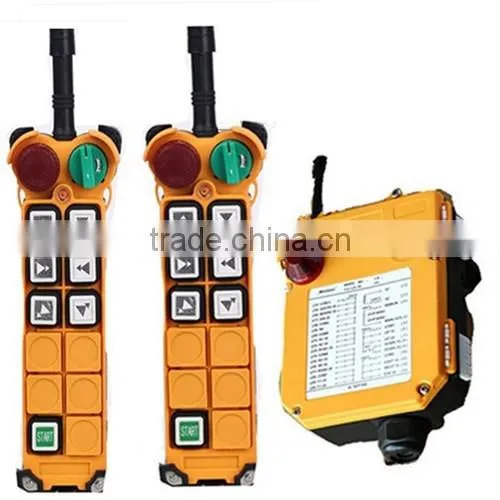

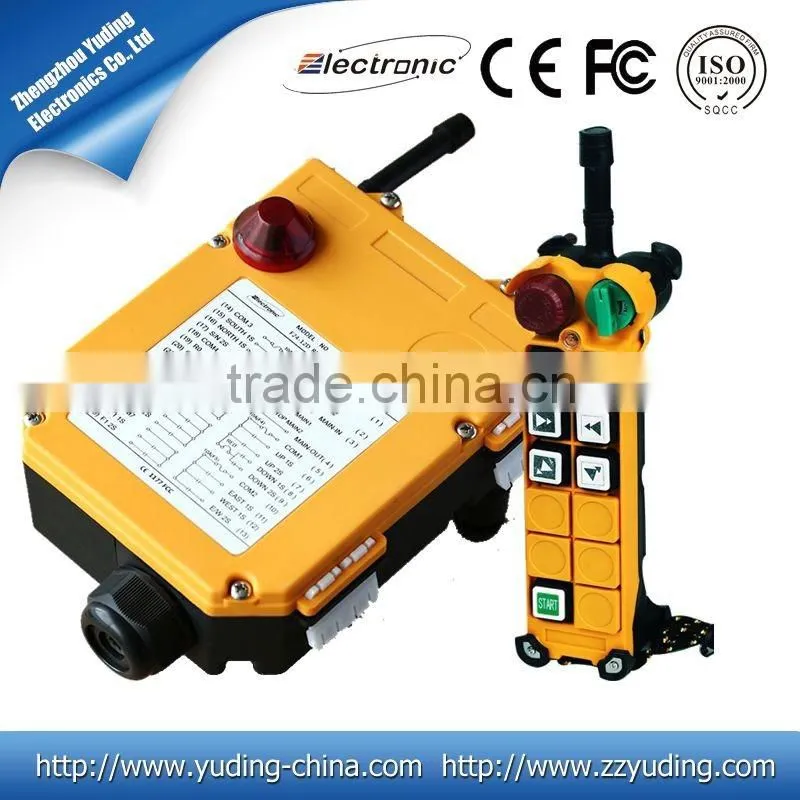

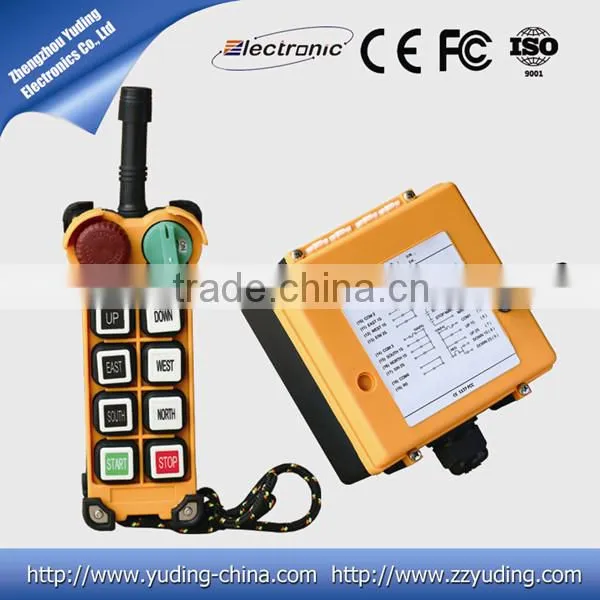

446mhz receiver&transmitter double speed button industrial remote control crane for electric hoist
Picture:
industrial remote control crane :

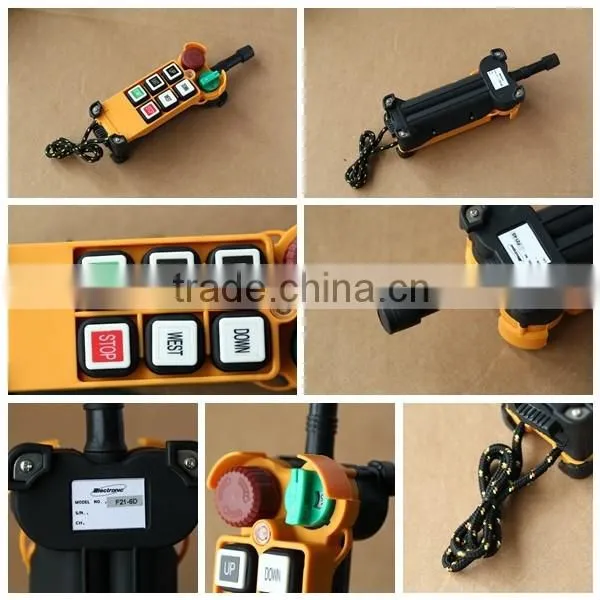

| TX Model | F21-6D-TX-V-(E) |
| TX Size | about 18.8x6.4x4.8(cm) |
| TX Weight | about 293g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating |
-35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons |
6 Double speed buttons,1 START button, 1 mushroom button,1Rotary switch |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning |
TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly: 1.Not in the correct way to start; 2.One of the pushbutton is jammed. TX LED will flash slowly: 1.Please change two new batteries |

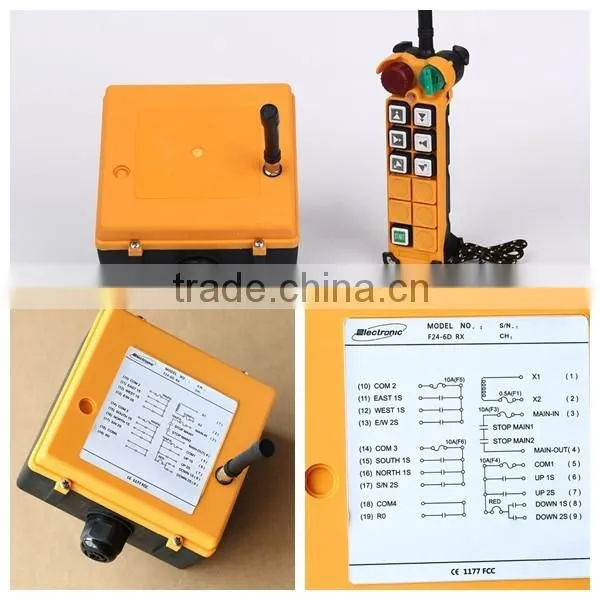

| RX Model | F21-6D-RX-V-(E) |
| RX Size | 17.0x16.7x8.7cm |
| RX Weight | about1173g |
| Housing Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | english |
| Temperature Rating | -35°C ~ +85°℃ |
| Power Supply |
AC380V,AC36V,AC220V,AC110V,AC48V, AC24V,AC12V/DC12V,AC380V/AC220V(50-60Hz) |
| Relays |
10 Relays control functions,1 relay control EMS and 1 relay reserve |
| Output Relays |
5Amp Omniseal Relays(AC250V/10A Relays, 10Amp fuse) |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | ≥-110DBm |
| Interface | Cable output |
Standard Configuration:
* It suitable for single hook single speed electric hoist type crane and the application of under 8 contacts
* industrial remote control.
* One Transmitter 1pcs(with straps);
* One Receiver;
* One Receiver with 1meter cable ;
* Operation and Maintenance manual;

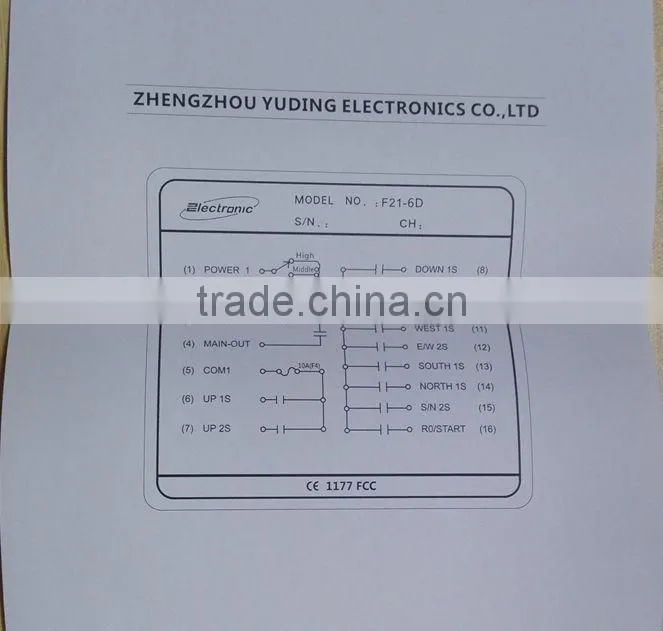

>> Wiring diagram for industrial remote control crane
--------------------------------------------------------------------------------------------
Package include:
Transmitter x1 (with strap)
Receiver x1 (receiver comes with 1 m connection cable)
Operation and maintenance manual x1
Instruction:
1. Depress the TX Emergency Stop or remove the magnetic key
2. Press UP push button and hold it.
3. Start the system as usual.
Application:
The ranges of applications of our industrial radio remote control system
1. overhead bridge cranes,
2. gantry crane
3. beam launcher
4. monorail hoists,
5. motorized jib cranes
6. Other pieces of industrial equipment.
ABOUT YUDING:
HeNan Yuding Electronics Corp., Ltd is an industrial radio remote controls manufacturer in china .With more than 10 years experience on this industrial remote control system business area. headquartered in Zhengzhou, Henan province.
Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity , Yuding are becoming one of the leading companies in this industry in china.
Our main products is :F21 Series industrial remote control crane ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control .
1. Q:What is your MOQ?
1pc as sample for trial order is available.
2. Q:Is there any warranty?
A: all of our products enjoy 1 year warranty, also. technical support and after-service for our product can offer to you at any time after you bought.
3. Q:Will you provide the after-sales?
A:Of course
1)All products have been aging for 12hours before packing.
2) industrial remote control crane have been well packed in our factory, and the second packaging by express service before shipping.
3)If any problem during operation or installation, please contact us freely, we will solve with professional instruction.
4. Q:Which certificates do your products approve?
A: CE,FCC,ISO, etc
5. Q:What’s the control distance for F21 Series Industrial radio remote controls?
A: Usually 100Mts is ok
6. Q:Have product 100% assembled well in stock?
A:Yes, all the products are 100% assembled well.
Waiting for your kind inquiry !
