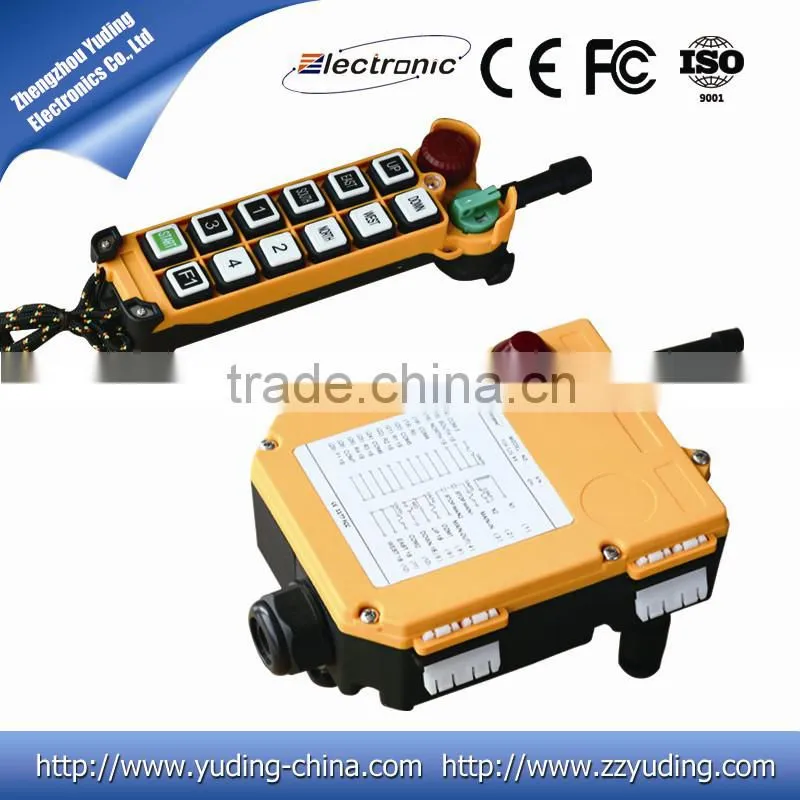

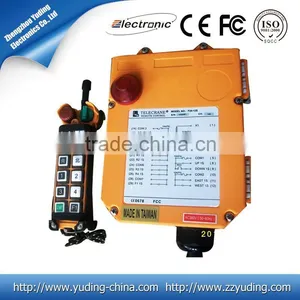

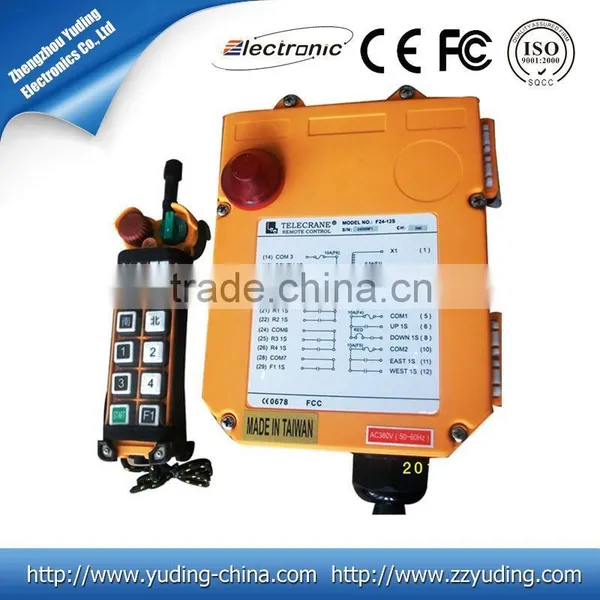

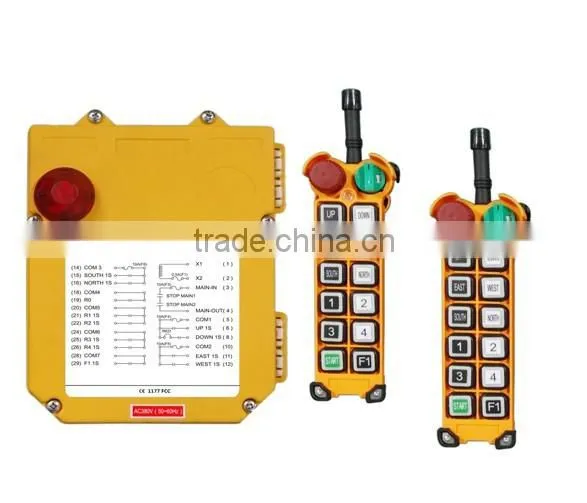

Single Speed Wireless Remote Controller
Feature:
- 12 single step push button
- Low, low power consumption transmitter 2 AA batteries last up to 4 months
- Safety code: Over 4.3 billions unique ID code available.
- Temperature range -40°C~ +85°C
- Enclosure protection class IP 65
- Microsoft Windows based software for easy customize configuration
- Structure: Glass-Fiber
Standard Configuration:
1. One transmitter;
2. One receiver;
3. One 1.5m cable connect with receiver
4. One operation and maintain manual.

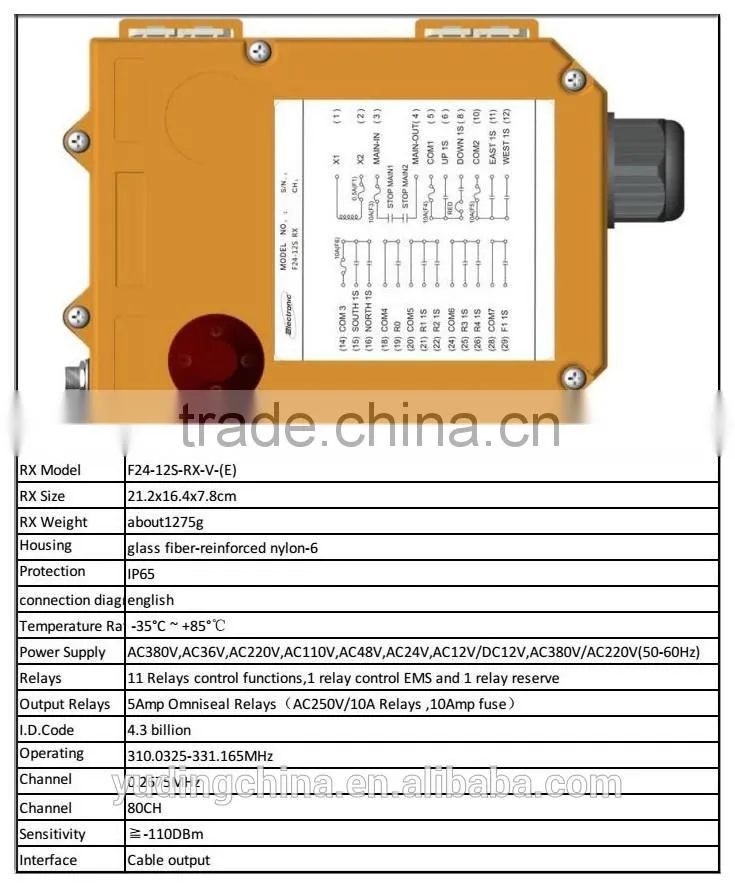

Specification:
| TX Model | F24-12S-TX-V-(E) |
| TX Size | 18.8x6.4x4.8(cm) |
| TX Weight | about289g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 12 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz or 425MHZ-441MHZ |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection |
TX Red LED is flashing quickly: TX LED will flash slowly: |
Application:
Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 19 control points etc.
Certification:
Package
1 set per box, 6 pcs per carton.
WHy Choose us ?
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
Factory picture:
How To Produce controller?
Notes:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
