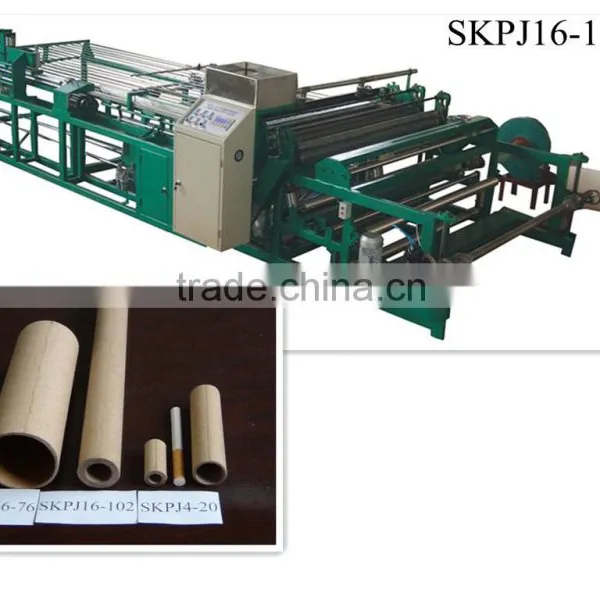

SKPJ16-102, Max. 2500mm length parallel roll core machine

Specifications

Max. 2500mm length parallel roll core machine
Inner diameter: 16-102mm
Simens PLC control
High working efficiency

Max. 2500mm length parallel roll core machine SKPJ16-102



It could be widely used in making thermocouple paper tubes, packing paper tubes, textile paper tubes and so on.

SKPJ16-102 automatic parallel roll core machine Features:

1, Forming tube's electric motor is adopted Japan's Panasonnic servo motor.
2, SKPJ16-102 automatic parallel paper tube winding machine is used German Original Siemens' PLC control.
3, The outter circle of the paper tube is adopted paper grinding system to make sealing the outter circle of the paper tube become easier.
4, The outter circle of the paper tube is adopted automatically water spraying system to make seal the outter circle of the paper tube easy.
5, SKPJ16-102 automatic parallel paper tube winding machine is adopted Tai wan's Delta inverter.
6, The forming paper tube 's spindle's head and tail's inner diameters are same size.
7, SKPJ16-102 automatic parallel paper tube winding machine is used electric motor to raising the Jumbo roll.

SKPJ16-102 Automatic  Parallel Paper Tube Machine/paper tube winding machine
Paper tube inner diameter range	16-102mm		Operation required	1 person operate 2 machines
Paper tube thickness	2.5-10mm		Paper thickness/max diameter	280-550g/1300mm
Paper tube max length	1220(2520)mm		Total motor power	8.32KW(9.62)KW
Working frequency	12~14times/min		Outside dimension	5360(7960)x1840(2530)x1400mm



Remark:  SKPJ16-102 Automatic parallel roll core machine
