Product Details
Condition: | New | Product Type: | Paper Core Machine | Processing Type: | Winding Machine |
Place of Origin: | Jiangxi, China | Brand Name: | Hengda | Model Number: | SKPJ16-102 |
Voltage: | customerized 220V/380V/440V | Power(W): | 8.32KW | Dimension(L*W*H): | 5360x1840x1400mm |
Weight: | 3000kg | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

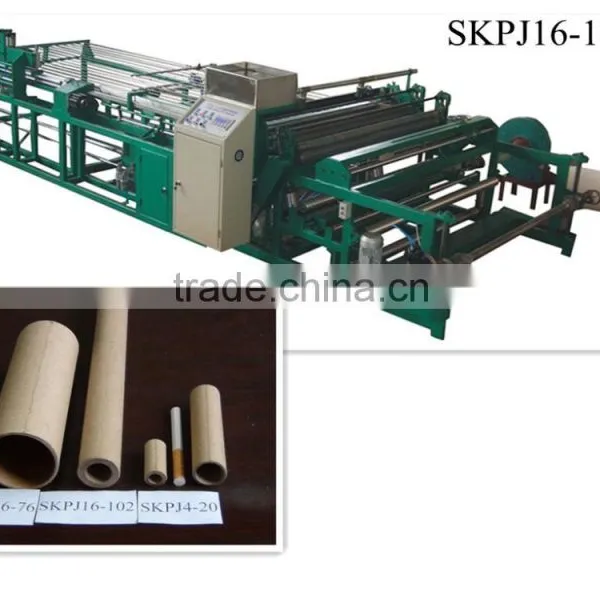

SKPJ16-102, Max. 2500mm length paper tube machine parallel paper tube machine parallel paper tube making machine
It could be widely used in making thermocouple paper tubes, packing paper tubes, textile paper tubes and so on.
SKPJ16-102 automatic parallel paper tube machine features:
1, Forming tube's electric motor is adopted Japan's Panasonnic servo motor.
2, SKPJ16-102 automatic parallel paper tube making machine is used German Original Siemens' PLC control.
3, The outter circle of the paper tube is adopted paper grinding system to make sealing the outter circle of the paper tube become easier.
4, The outter circle of the paper tube is adopted automatically water spraying system to make seal the outter circle of the paper tube easy.
5, SKPJ16-102 automatic parallel paper tube making machine is adopted Tai wan's Delta inverter.
6, The forming paper tube 's spindle's head and tail's inner diameters are same size.
7, SKPJ16-102 automatic parallel paper tube making machine is used electric motor to raising the Jumbo roll.
SKPJ16-102 Automatic Parallel Paper Tube machine | ||||
Paper tube inner diameter range | 16-102mm |
| Operation required | 1 person operate 2 machines |
Paper tube thickness | 2.5-10mm | Paper thickness/max diameter | 280-550g/1300mm | |
Paper tube max length | 1220(2520)mm | Total motor power | 8.32KW(9.62)KW | |
Working frequency | 12~14times/min | Outside dimension | 5360(7960)x1840(2530)x1400mm |
Remark: SKPJ16-102 Automatic parallel paper tube machine
We are the best choice of parallel paper tube machine manufacturer, please get contact with us as soon as possible! Welcome to visit our factory!
