Specifications
Automatic fireworks paper tube machineSpecially suitable for making fireworks paper tubes, packing tubes, metallurgy tubes

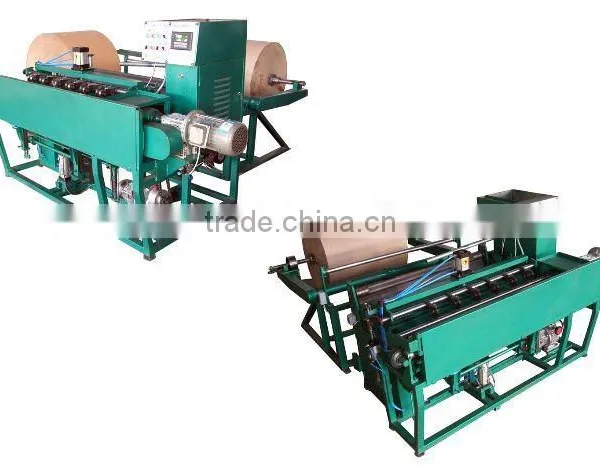

Fireworks Paper tube machine/Auotmatic Parallel Paper Tube Machine SKPJ2076
SKPJ2076 Automatic paper tube machine
Specially suitable for making fireworks paper tubes, packing tubes,metallurgy tubes and so on.
New technology with paper tube cutting system, no need to buy another paper tube cutting machine
Technology features:
1.Raising roll paper pattern: raising paper with electrical machine
2.Directly make the roll paper into the long paper tube
3.The end of the paper adds the water automatically and will not spring
4.The paper is automatically scraped the glue
5.Vessels of storing and sliding the glue are all adopted the stainless steel plate, endure acid and corrosion
6.Low electrical machine power
7.All operations are adopted numerical control design-PLC, realize full-auto operation
8.Electrical and pneumatic spare parts are all used the world famous enterprises' products and durable used
9.All the rewinding spare parts which are possible to touch the glue are adopted the wear-resisting alloy copper
10.Acquire three Chinese national patents
11.Realize the unmanned operation
Specifications:
Operation required: 1 person control two machines
Tube thickness: 1.5-6mm
Tube inner diameter 20-76mm
Paper thickness/max diameter: 180-300g/1300mm
Tube max length: 1080(1220)mm
Power: 3×0.75 kw
Working frequency 8~12 times/min
