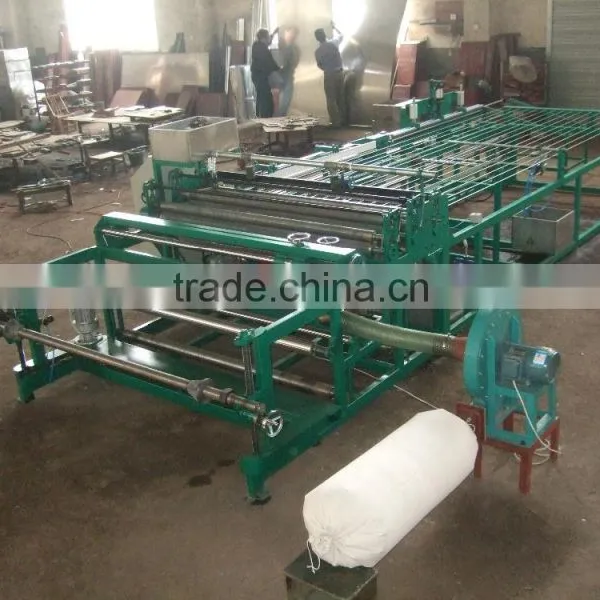

Automatic Convolute Paper Tube Making Machine

Automatic  Convolute Paper Tube Making Machine

Tube inner diameter : 9mm to 650mm

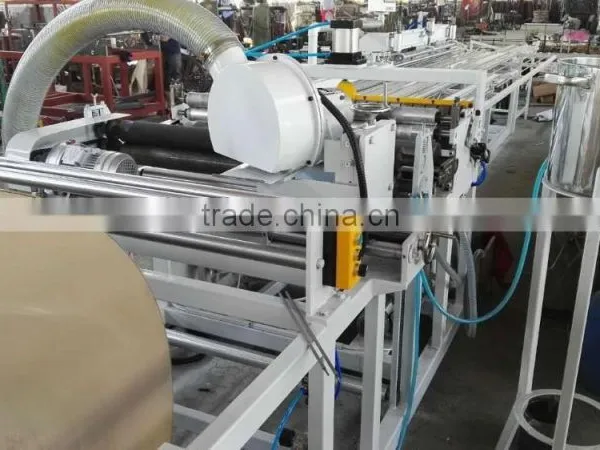

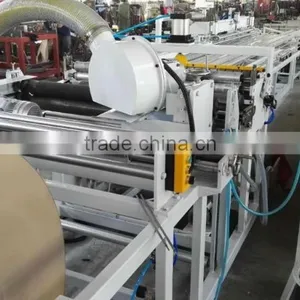

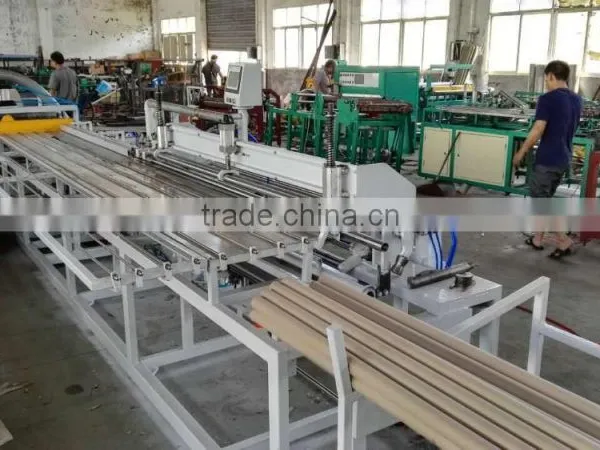

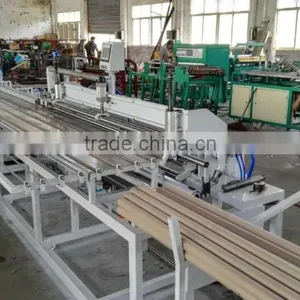

SKPJ1650 Automatic Parallel Convolute Paper Tube Machine is specially designed for making small size paper tubes with high working efficiency and reliability.

SKPJ1650 Automatic Parallel Convolute Paper Tube Machine features:

1, Directly make the jumbo roll into paper tube and cut tubes into needed length,convenient for regulating tubes’ length.

2, Automatic paper edge grinding device with the machine,benefit for sealing paper tube’s outer circle.

3, Adopt scraping glue way to glue the paper, use scraping plate to scrape the glue,uniformly glue the paper, no glue adhere at the outer cycle of paper tube.

4, Adopt liquid level control, automatic pump the glue.

5, Adopt the workmanship of waxing inner circle of paper tube, reduce the resistance of discharging tube and keep no glue at the inner circle of the paper tube.

6, The glue vessel is adopted stainless steel design,acid corrosion.

7, Electric components and pneumatic components use importing famous brand with high quality.

8, Reeling tube’s motor, conveying paper’s motor and discharging tube’s motor are all adopted servo motor with high precise and fast speed.

9, Every action adopts numerical control, highly automatic to let the machine run stably and keep high production capacity.

10, Adopt LCD touch screen design, easy to operate and set the parameter, convenient for finding malfunction.

SKPJ1650 Automatic Parallel Convolute Paper Tube Machine Technical Parameter:

Max. Paper tube length (The width of reel paper): 1020/1220/1520mm

Max. Diameter of reel paper: 1300mm

Paper tube inner diameter:16-50mm

Paper tube thickness: 2-10mm

Applicable paper grammage: 200-550gsm

Production speed: 17-20pcs/min

Dimension: 6300 x 1550x1400mm

Total motor powe: 7KW

SKPJ1650 Automatic parallel convolute paper tube machine's paper tube inner diameter and length can be customerized.
