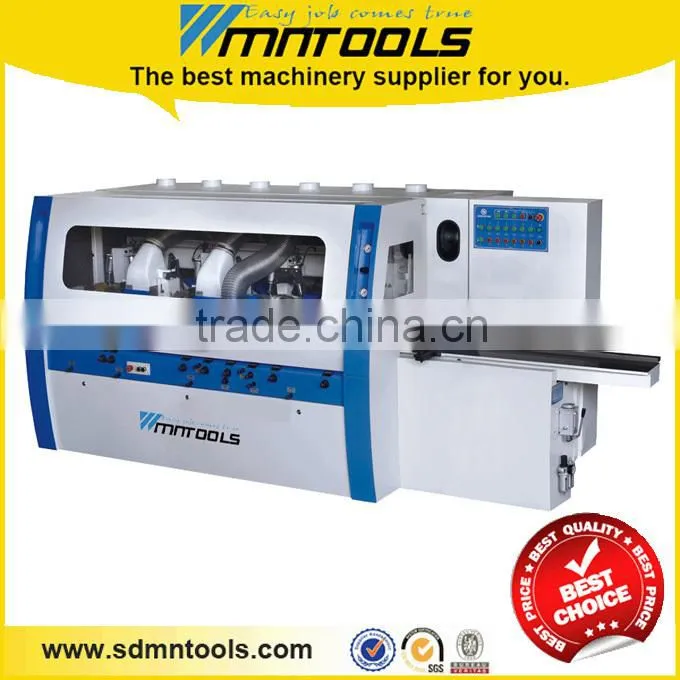

Four-side Moulder

Name: Four-side Moulder
Brand: MNTOOLS
SKU: 119026561
Availability: InStock

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

MNTOOLS

Model Number:

MTPM-620

Qingdao MNT International Trade Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name MNTOOLS

Model Number MTPM-620

Specifications

Four-side Moulder

Four-side Moulder Series

Model	MTPM-620	MTPM-520	MTPM-420
Working width	25-200mm	25-200mm	25-200mm
Working thickness	8-120mm	8-120mm	8-120mm
Operating platform length	1800mm	1800mm	1800mm
Feeding speed	5-26m/min	5-26m/min	5-26m/min
Spindle diameter	Φ40mm	Φ40mm	Φ40mm
Spindle speed	6000r/min	6000r/min	6000r/min
Gas source pressure	0.6MPa	0.6MPa	0.6MPa
1st bottom spindle	5.5kw/7.5HP	5.5kw/7.5HP	5.5kw/7.5HP
First top spindle	7.5kw/15HP	7.5kw/15HP	7.5kw/15HP
Right side spindle	5.5kw/10HP	5.5kw/10HP	5.5kw/10HP
Left side spindle	5.5kw/10HP	5.5kw/10HP	5.5kw/10HP
Top spindle go up and down
Left side spindle go in and out
Second top spindle	5.5kw/7.5HP
Second bottom spindle	5.5kw/7.5HP	5.5kw/7.5HP
Universal spindle
Feed beam rise & fall	0.75kw/1HP	0.75kw/1HP	0.75kw/1HP
Feeding	4kw/5.5HP	4kw/5.5HP	4kw/5.5HP
Total motor power	53.25kw/70HP	47.75kw/63HP	42.75kw/57HP
Hydraulic feeding motorz
Right side spindle	Φ125-Φ180mm	Φ125-Φ180mm	Φ125-Φ180mm
Left side spindle	Φ125-Φ180mm	Φ125-Φ180mm	Φ125-Φ180mm
1st bottom spindle	Φ125	Φ125	Φ125
First top spindle	Φ125-Φ180mm	Φ125-Φ180mm	Φ125-Φ180mm
Second top spindle	Φ125-Φ180mm	Φ125-Φ180mm	Φ125-Φ180mm
Second bottom spindle	Φ125-Φ180mm
Universal spindle
Feeding wheel diameter	Φ140mm	Φ140mm	Φ140mm
Dust absorption tube diameter	Φ140mm	Φ140mm	Φ140mm
Overall machine dimensions ( L x W x H )	3920x1500x1700mm	3370x1500x1700mm	3370x1500x1700mm
