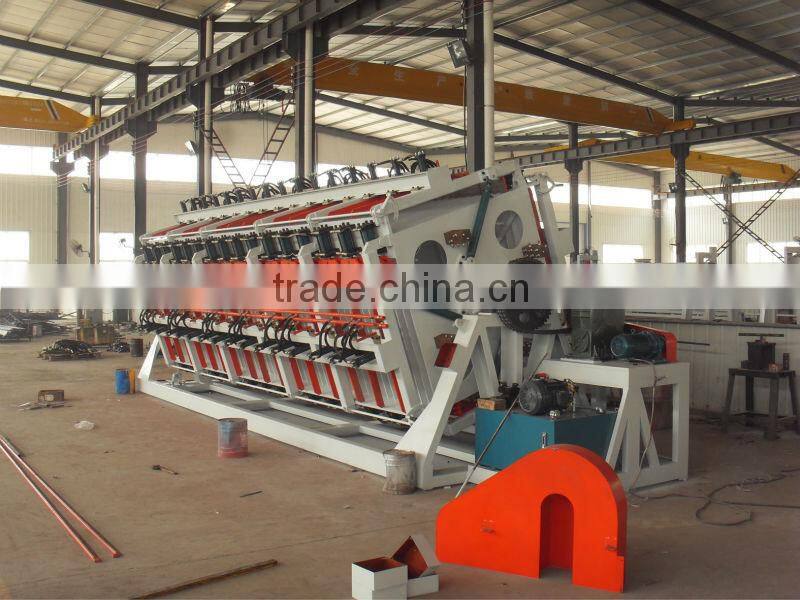

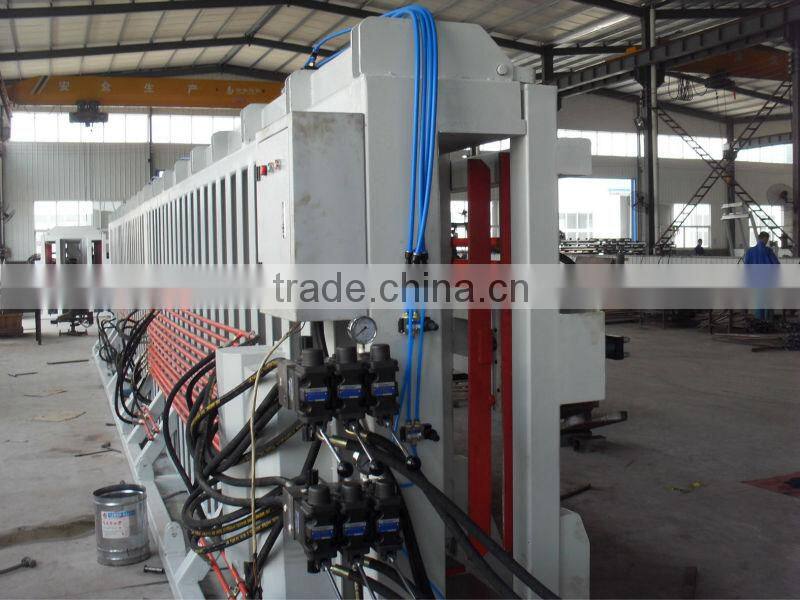

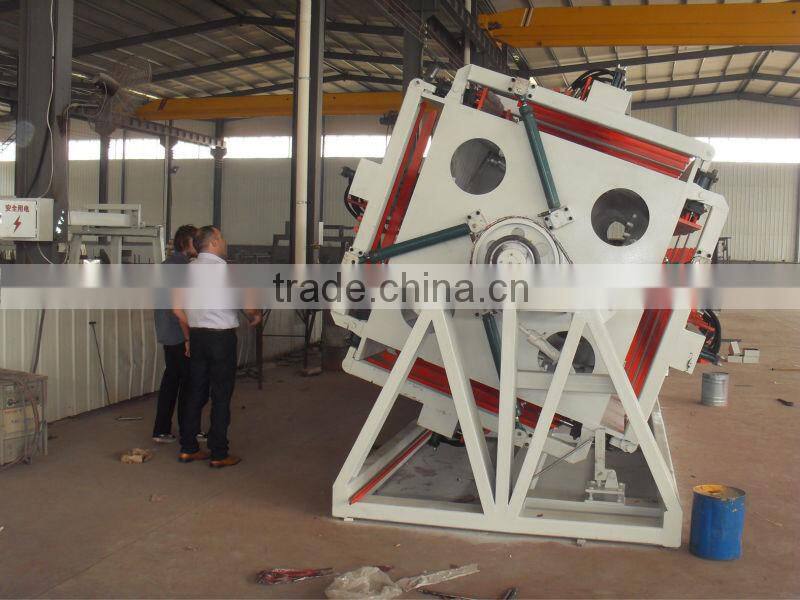

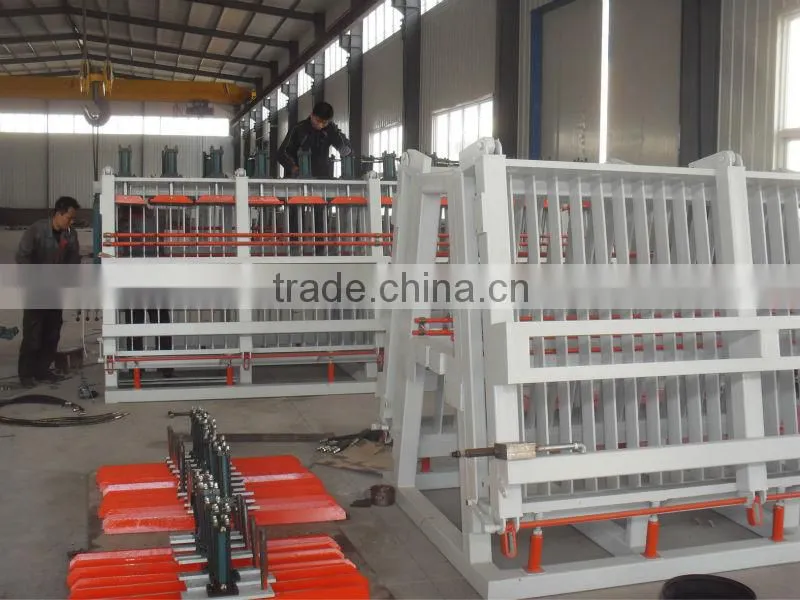

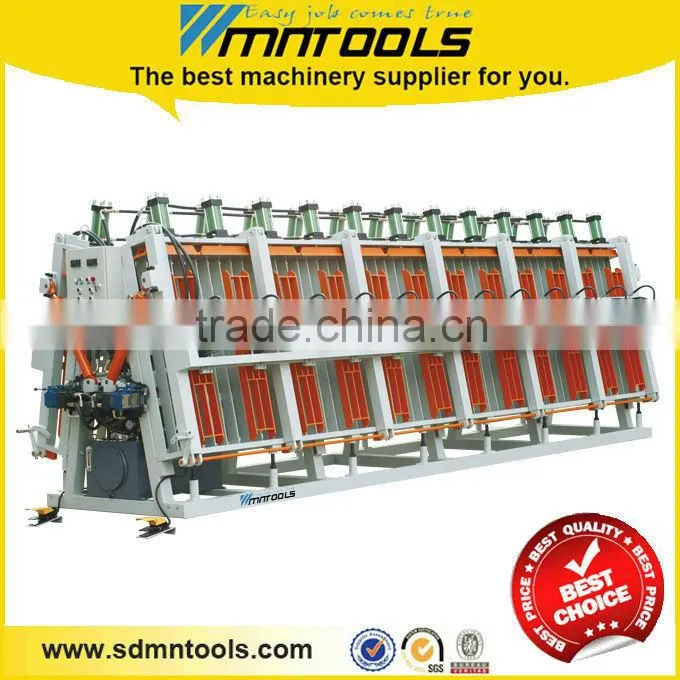

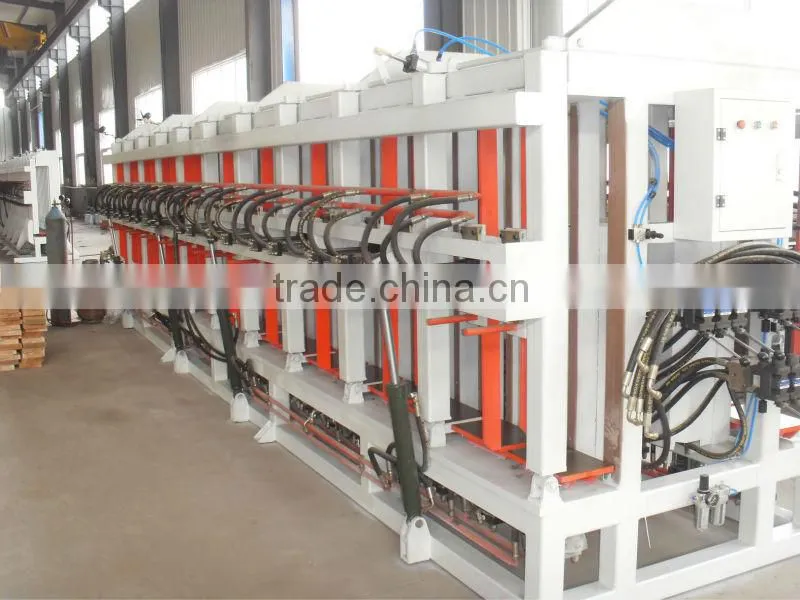

Help CenterWood Clamping Carrier, Heavy Duty
Related Products
Specifications
Wood clamping carrier ; Heavy duty, long life working and low maintenance.Wood clamping carrier
Different working size is available.
Two-side hydraulic composer series / wood clamping carrier
Characteristics
1.This machine adopts hydraulic principals characterized by a stable motion speed,huge pressure and still pressing.High density braced sheetings as back worktop and pressure from the above and front can prevent the curved angle and make the board glued completely.Low sanding and high output.
2.According to different working specifications(length or thickness),system pressure can be adjusted according to different pressure required.And there is pressure-supplement system,which ensure the continuous pressure.
Parameter
Model | MNT1325/2 | MNT1346/2 | MNT1352/2 | MNT1362/2 |
Max working length | 2700mm | 4600mm | 5200mm | 6200mm |
Max working width | 1300mm | 1300mm | 1300mm | 1300mm |
Working thickness | 10-150mm | 10-150mm | 10-150mm | 10-150mm |
Top cylinder dia | Φ 80 | Φ80 | Φ80 | Φ80 |
Top cylinder amounts of each side | 6 | 10 | 10 | 12 |
Side cylinder dia | Φ40 | Φ40 | Φ40 | Φ40 |
Side cylinder amounts of each side | 6 | 10 | 10 | 12 |
Lift cylinder dia | Φ 63 | Φ63 | Φ63 | Φ63 |
Lift cylinder amounts of each side | 2 | 2 | 2 | 2 |
Motor power for hydraulic system | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
Rated pressure of system | 16Mpa | 16Mpa | 16Mpa | 16Mpa |
Overall dimensions(L*W*H) | 4700*2970*3050mm | 6600*2970*3050mm | 7200*2970*3050mm | 8200*2970*3050mm |
Weight | 4000kg | 6000kg | 6600kg | 7700kg |
