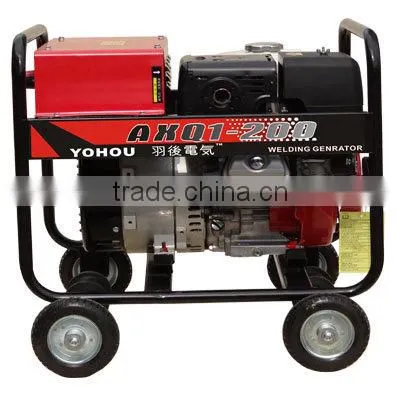

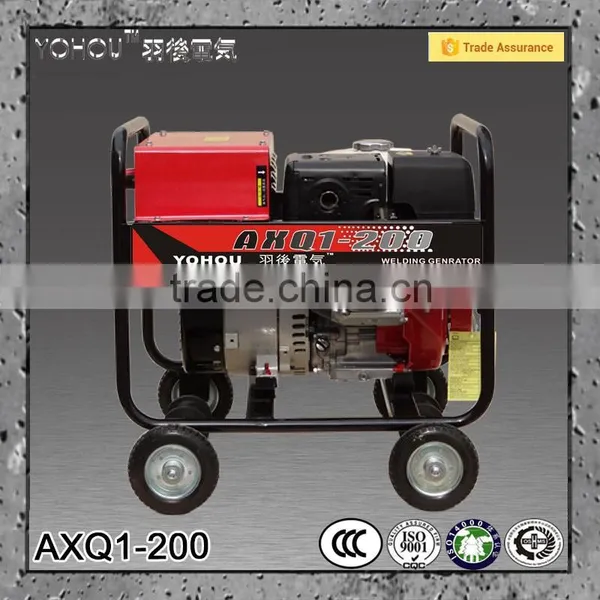

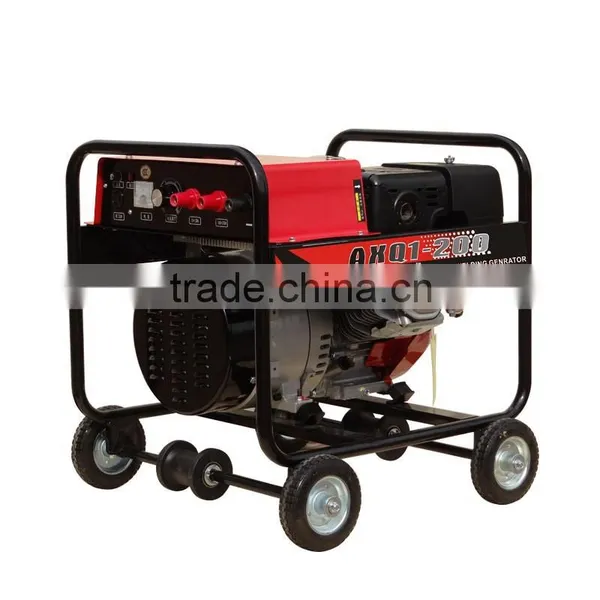

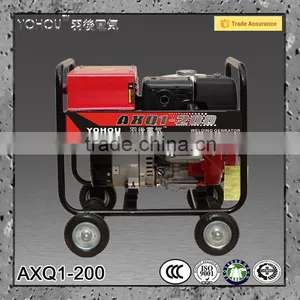

Gasoline 220v genset welding generator China
Basic Information:
- Gasoline welding generator
- Kohler CH440 gasoline engine
- 50A to 200A adjustable electric current
- 220v DC output for lighting and grinding
- Genset welding generator made in China
Advantages:
- Power by Kohler or B&S gasoline engines(optional), reliable quality and stable performance.
- Equipped with intermediate frequency generator,100% duty cycle to guarantee 24-hour continuous operation.
- Designed with big & small copper wingdings, guarantee stable output of both big current and small current.
- With magnetic induction control system, effectively avoiding electrical component deterioration and has lower failure rate.
- With 220V DC standby power, suitable for field operation including grinding and lighting etc.
- With initiating excitation circuit, can avoid loss of magnet.
Technical Parameters:
Model |
AXQ1-200 |
|
|
Welder
|
No-load Voltage (V) |
60-85 |
Working Voltage (V) |
22-28 |
|
Electric current range (A) |
50-200 |
|
Welding Rod Diameter (mm) |
1.2-5 |
|
Welding Mode |
Hand welding |
|
Duty cycle(%) |
100 |
|
Standby Power |
DC220V/3KW |
|
|
Engine
|
Engine Model |
KOHLER CH440 |
Valve Type |
OHV |
|
Displacement(CC) |
429 |
|
Ignition system |
CDI |
|
Fuel Tank Capacity (L) |
6.5 |
|
Fuel Consumption (g/HP.hr) |
228 |
|
Oil ALERT system |
YES |
|
Starting System |
Electric Start |
|
Noise Level @7m (dBA) |
79 |
|
|
Whole Set
|
Insulation Class |
H |
Protection Grade |
IP21 |
|
L×W×H(mm) |
655×670×655 |
|
Net weight (KG) |
65 |
|
Uses:
Chongqing Zhrien Electric Equipment Co., Ltd. was established in 2001. Our company is a professional Chinese generator and welder manufacturer which has devoted itself to this field for 15 years. We have over 100 competent and passionate staff and over 24000 square meters of factory. We provide gasoline welding generators, diesel welding generators, gasoline TIG welding machines, diesel TIG welding machines ranging from 200A to 400A. We also provide customization service to customers who have special requirements on our products.
