Intermediate Frequency dc 200A Wire Butt Welding Machines
US$ 800 - 2,000
MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Chongqing, China
Brand Name:
Zhiren
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200 Amps dc Electric Arc Welding MachineUS$ 800 - 2,000MOQ: 10 Sets -
Cheap Portable ac dc 200 Tig Welder GeneratorsUS$ 800 - 2,000MOQ: 10 Sets
-
200A Battery Spot Welding DC Output 220VUS$ 400 - 800MOQ: 5 Sets
-
200a 220v dc Welding Machine Plastic Pipe PricesUS$ 400 - 800MOQ: 5 Sets
-
Arc Welder 200A dc Pipe WelderUS$ 400 - 800MOQ: 5 Sets
Condition
New
Place of Origin
Chongqing, China
Brand Name
Zhiren
Model Number
AXQ1-200
Pulse Frequency
720 HZ
Pilot Arc Current
50-200 A
Rated Duty Cycle
100%
Motor Type
DC Motor
Dimensions
655x670x655 mm
Usage
tracks, rails, pipes etc
Voltage
220V
Power(W)
3KW
Certification
CCC
Warranty
2 years
After-sales Service Provided
No overseas service provided

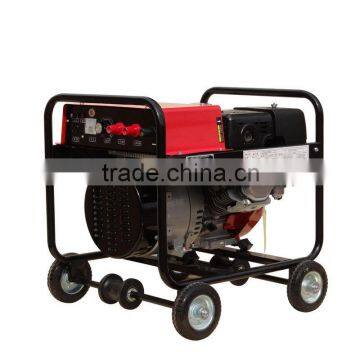

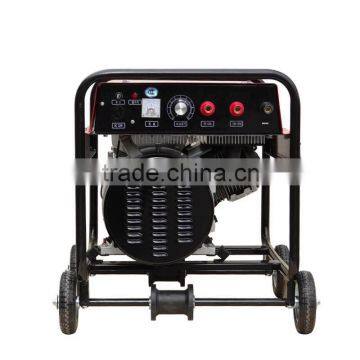

Intermediate frequency dc 200A wire butt welding machines
Product Description
Unique Features:
Powered by Kohler and Briggs & Stratton gasoline engines, reliable quality and stable performance.
- Designed with intermediate frequency generator, with 100% duty cycle to insure 24-hour continuous operation.
- With magnetic induction control system, effectively avoid electrical component deterioration and lower failure rate.
- With 220V standby power, suitable for field operation including grinding and lighting etc.
- With initiating excitation circuit, can avoid loss of magnet.
Technical Specification:
| Model | AXQ1-200 | AXQ1-200-1 | |
| Welder | No-load Voltage (V) | 60-85 | 60-85 |
| Rated-load Voltage (V) | 22-28 | 22-28 | |
| Range of Current (A) | 50-200 | 50-200 | |
| Welding Rod Diameter (mm) | 1.2-5 | 1.2-5 | |
| Welder Type | Hand welding | Hand welding | |
| Duty cycle (%) | 100 | 100 | |
| Standby Power Voltage(V) | DC220 | DC220 | |
| Standby Power (kW) | 3 | 3 | |
| Engine | Engine Model | KOHLER CH440 or B&S 2552 | |
| Valve Type | OHV | OHV | |
| Horse Power (HP) | 14 | ||
| Ignition system | CDI | CDI | |
| Fuel Tank Capacity (L) | 6.5 | 25 | |
| Fuel Consumption (g/HP.hr) | 228 | 228 | |
| Oil ALERT system | YES | YES | |
| whole set | Starting system | Electric | Electric |
| Insulation Class | H | H | |
| Protection Class | IP21 | IP21 | |
| L×W×H (mm) | 655×670×655 | 680×670×700 | |
| Net weight (KG) | 65 | 66 | |
Product Uses
Application Scope:
This dc welding machine is widely used to weld railway tracks, natural gas pipelines, oil pipes, guard rails and all kinds of black metal including aluminum and iron etc.

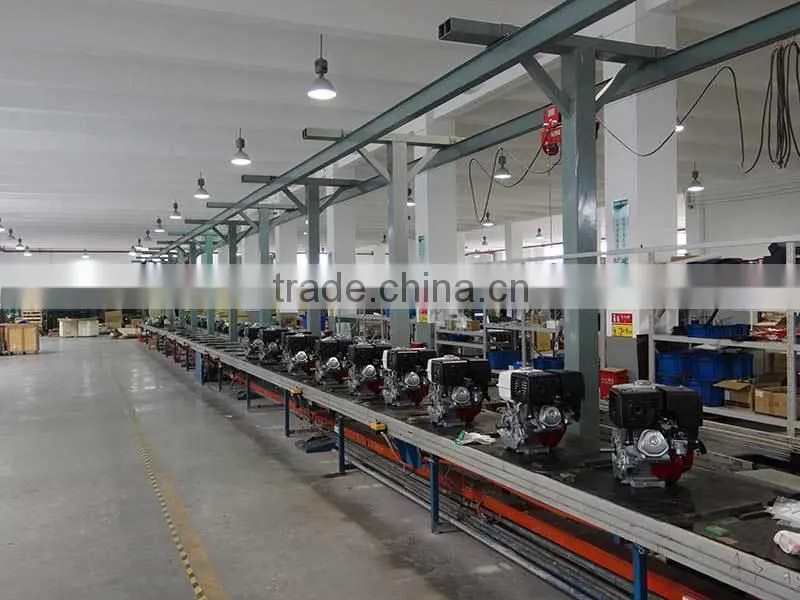

Production Process

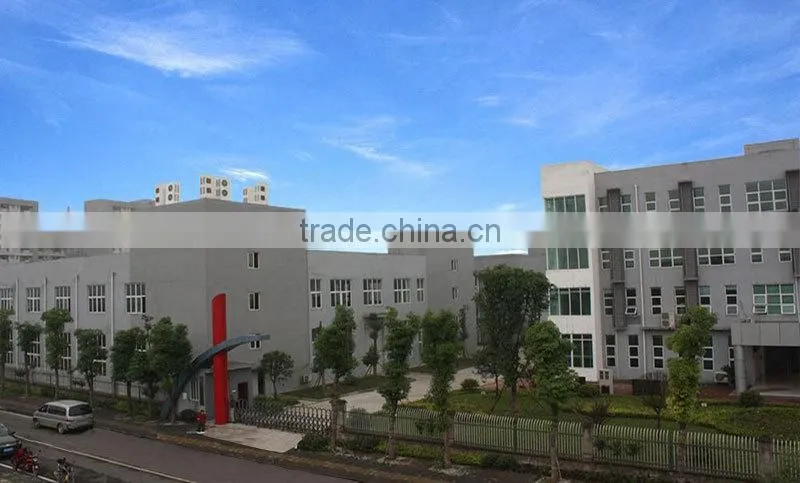

Company Information
