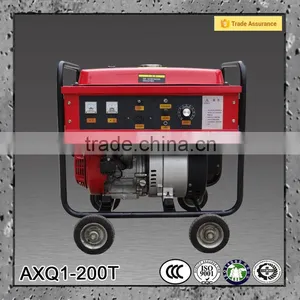

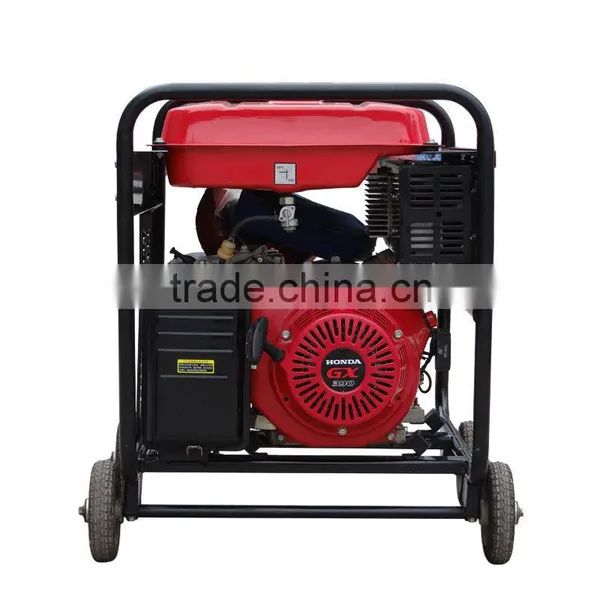

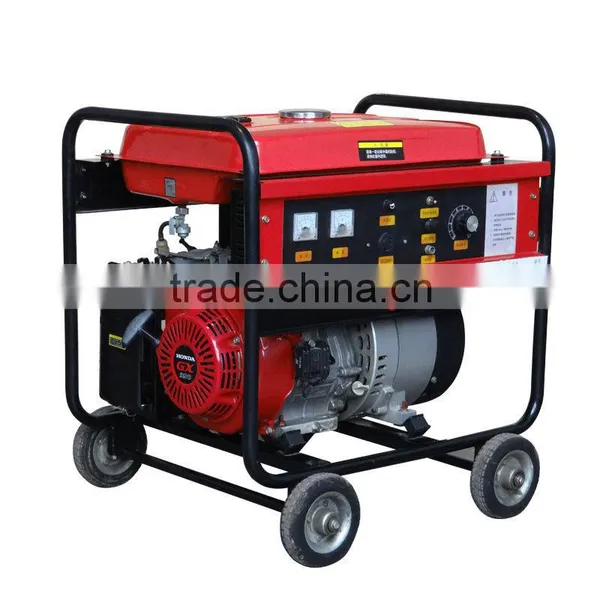

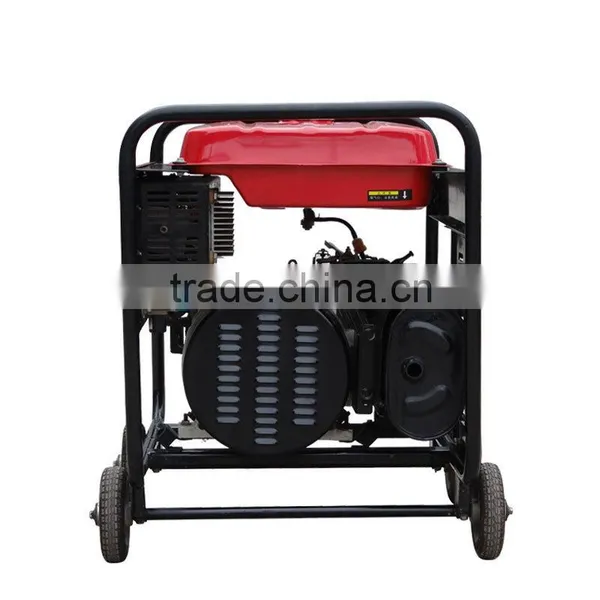

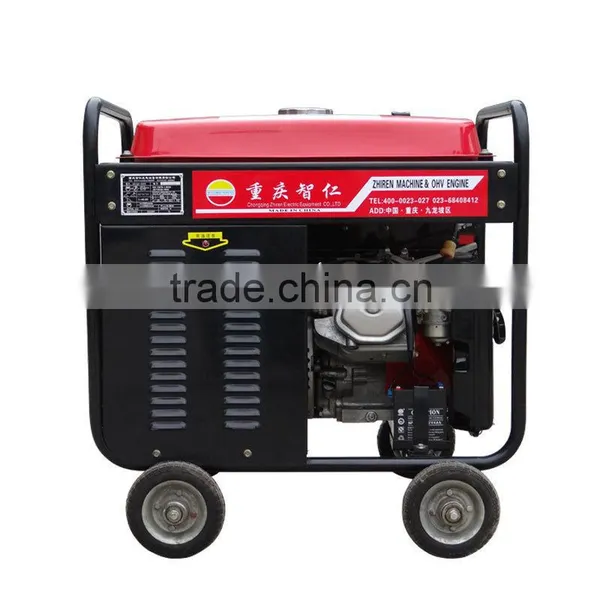

Cheap portable ac dc 200 tig welder generators
Why Choose TIG welding machine?
1. Are you afraid of tungsten inclusion?
With high frequency arc ignition, this TIG welding machine can avoid tungsten inclusion
2. Do you want to achieve high quality welding effect?
With both pre and post gas supply, especially with adjustable post gas supply time to insure welding quality.
3. Do you want to get both hand welder & TIG welding machine?
This is a all-in-one hand welder and TIG welding machine
4. Do you often move it or do you want it to be lighter?
With light weight, this welding machine is easy to move
5. Are you scared by frequent failure?
This TIG welding machine is of simple structure and low failure rate. You are free from worry.
Technical Specification:
| Portable ac dc 200 tig welder generators | ||
| Type | AXQ1-200T | |
| Welder | No-load Voltage (V) | 60-85 |
| Rated-load Voltage (V) | 22–28 | |
| Welding Output Current (A) | 40–200 | |
| Welding Rod Diameter (Φmm) | 1.2-5 | |
| Welding Method | Hand Welder, TIG Welder | |
| Duty cycle (%) | 100 | |
| Auxiliary power supply | DC220v/3kw | |
| TIG welder arc striking gap (mm) | ≥5 | |
| Argon arc welding current (A) | 10-200 | |
| Pre gas supply(S) | 3 | |
| Post gas supply (S) | 3~8 adjustable | |
| Frequency | High frequency | |
| Engine | Engine Model |
KOHLERCH440, B&S2552 (optional) |
| Valve Type | OHV | |
| Displacement | 389 | |
| Ignition system | CDI | |
| Fuel Tank Capacity (L) | 25 | |
| Fuel Consumption (g/HP.hr) | 228 | |
| Oil alarm system | YES | |
|
whole set |
starting system | Recoil |
| Insulation Class | H | |
| Protection Class | IP21 | |
| Dimensions (mm) | 680×530×605 | |
| Net weight(kg) | 68 | |
Application Scope:
This TIG welder/ TIG welding machine can be used to weld railway tracks, guard rails, natual gas pipes, oil pipelines, and all kinds of black metals.
