Diesel 3 Phase Welding Machine 230v 400 Amp Price Quality Choice

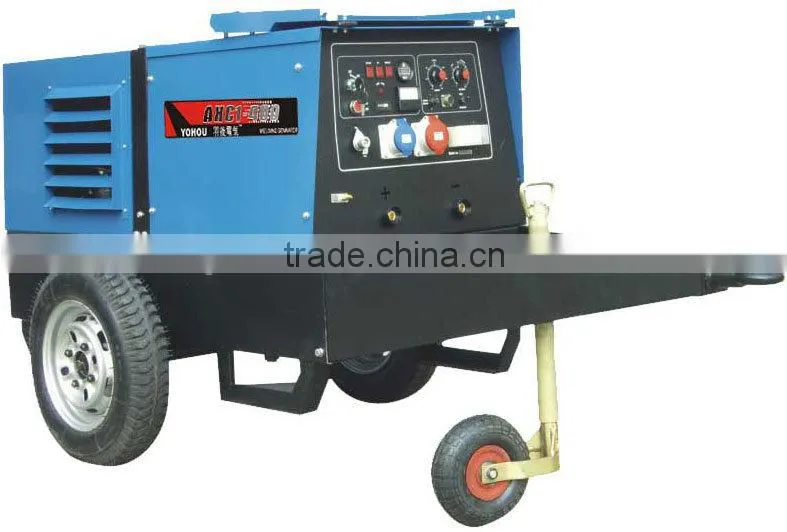

Diesel 3 Phase Welding Machine 230v 400 Amp Price Quality Choice photo-1

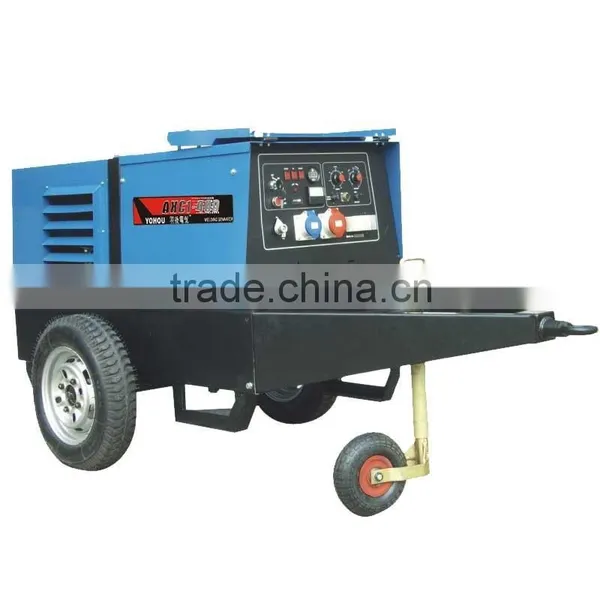

Diesel 3 Phase Welding Machine 230v 400 Amp Price Quality Choice photo-2
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Chongqing, China
Brand Name:
YOHOU
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Chongqing, China
Brand Name YOHOU
Model Number AXC1-400
Pulse Frequency 720HZ
Pilot Arc Current 40-400 A
Rated Duty Cycle 60%
Motor Type AC Motor
Dimensions 1410*730*880 mm
Usage All kinds of black metals
Voltage 22-36v
Power(W) 10kw
Certification CCC
Warranty 2 years
After-sales Service Provided No overseas service provided

Diesel 3 phase welding machine 230v 400 amp price

Product Description

Features:

  • Powered by Kohler diesel engines, with higher safety
  • With patented induction control system to prevent electrical components deterioration, lower failure rate
  • 8kw DC large auxiliary power source
  • High duty cycle to keep 24-hour continuous operation

Specifications:

Model

AXC1-400

Welder















No-load Voltage (V)

65-80

Working Voltage (V)

22-36

Electric current range (A)

40-400

Duty cycle(%)

60

Welding Rod Diameter (mm)

2-8

Three Phase Output

AC400V/10KW

Standby Power

DC230V/8KW

Insulation Class

F

Engine











Engine Model

KOHLER KD625/2

Displacement(CC)

1248

Fuel Tank Capacity (L)

26

Fuel Consumption (g/HP.hr)

186

Oil  ALERT system

YES

Starting System

Electric Start

Whole Set





Protection Grade

IP21

L×W×H(mm)

1410×730×880

Net weight (KG)

360

Diesel 3 phase welding machine 230v 400 amp price
Product Uses

Diesel 3 phase welding machine 230v 400 amp price

This 400 amp 3 phase diesel welding machine is powered by Kohler diesel engine. It is widely used in railway, chemistry, oiling fields to weld railway tracks, guard rails, natural gas and oil pipelines. It can be used to weld aluminium, steel and all kinds of black metals.

Company Information

Diesel 3 phase welding machine 230v 400 amp price

Chongqing Zhrien Electric Equipment Co., Ltd. was established in 2001. Our company is a professional Chinese generator and welder manufacturer which has devoted itself to this field for 15 years. We have over 100 competent and passionate staff and over 24000 square meters of factory. We provide gasoline welding machines, diesel welding machines, gasoline type TIG welding machines, diesel type TIG welding machines ranging from 200A to 400A. We also provide customization service to customers who have special requirements on our products.
