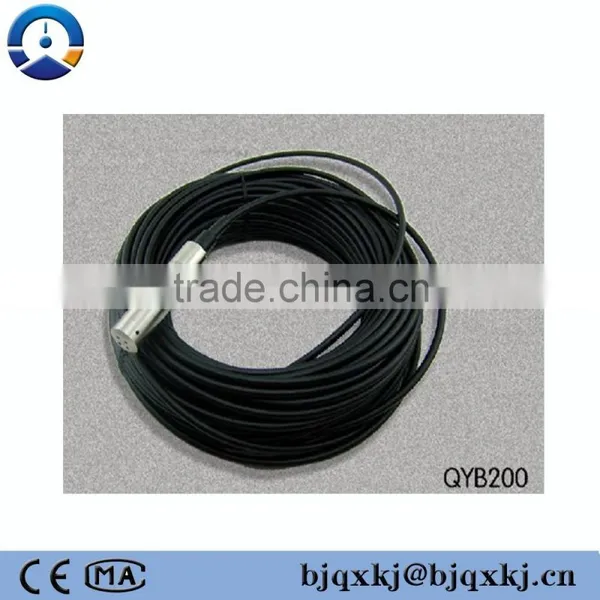

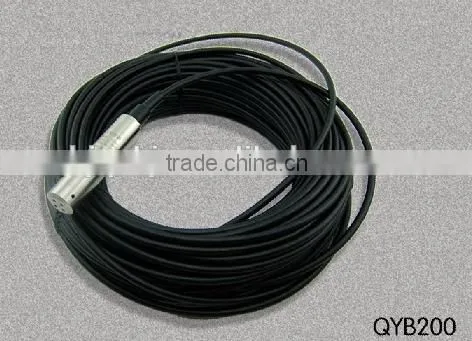

QYB200 Diesel Level Sensor is made by building in high stable and reliable piezorestive pressure sensor and
high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide
the user easy and convenient application in the local working place. The special cable connects with housing,
can be immersed into the media for a long time.It has compact size, light weight and good stability; it can be used
for water or liquid measure and control of medicine, metallurgy, electricity, mine, city water supply and drainage
and hydrology etc.
1.Dimension:
2.Main characters
- Piezo-resistive Silicon Chip Employed
-MEMS Technology
-Cable Ventilated
-Excellent long term stability
-High accuracy and reliability
-Completely submersible pressure transducer and cable
-Compact, rugged design for easy installation
-Minimal maintenance and care
-Water level sensor compatible with most monitoring equipment
-Vented cable for automatic barometric compensation
3. Technical data
1) Pressure range :0~3m for water
2) Output signal:4-20mA
3) Power supply:24VDC
4) accuracy:0.2%F.S.
5) over-pressure:150%F.S.
6) Operating temperature:-40℃~80℃
7) Long term stability:≤±0.2%FS/year
8) protection:Ip65
9) Pressure connection : 1Cr18Ni9Ti
10) Housing material:stainless
11) Sensor material:316L
Each piece in an individual box and some boxes in a standard export carton.
It is acceptable to have your logo in carton.
