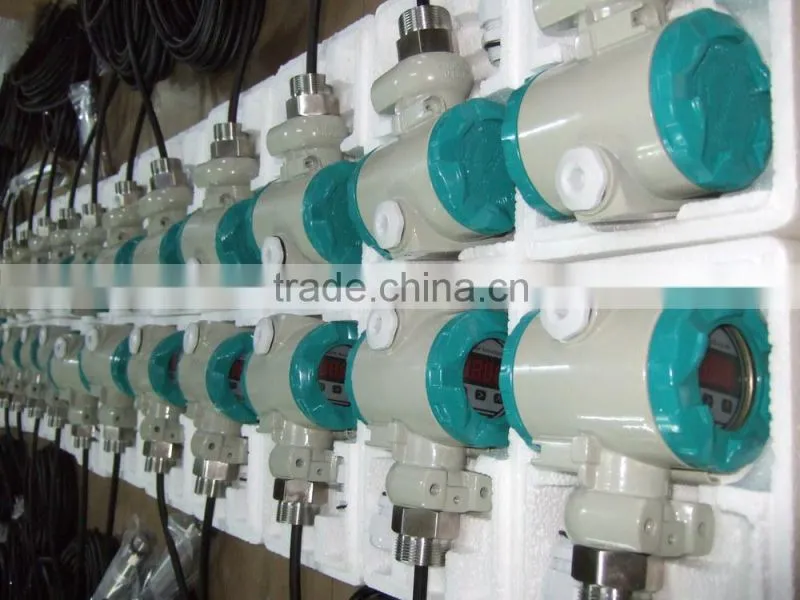

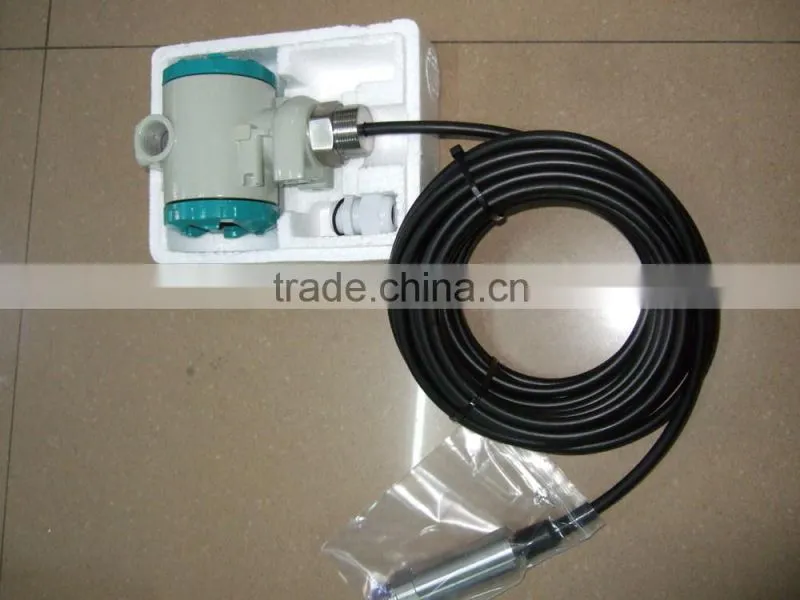

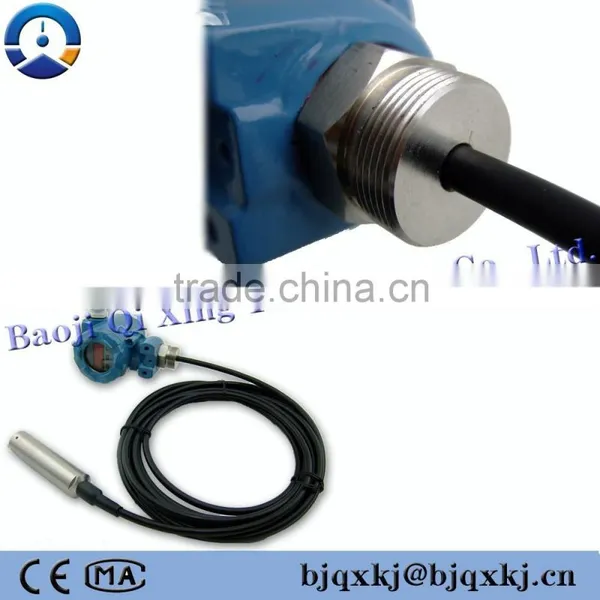

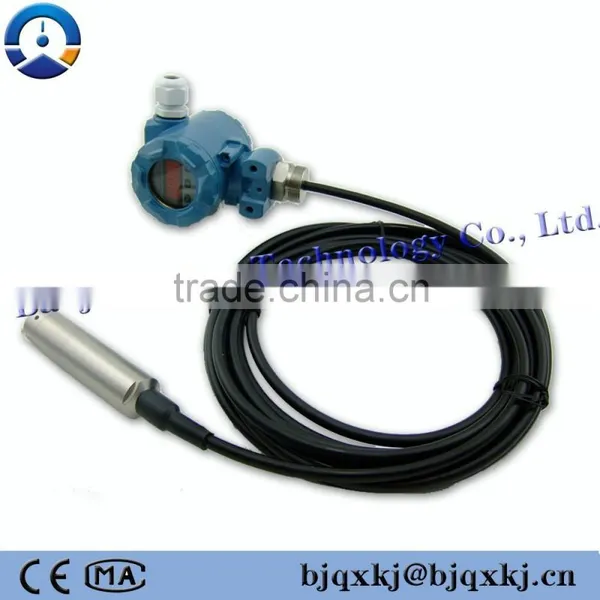

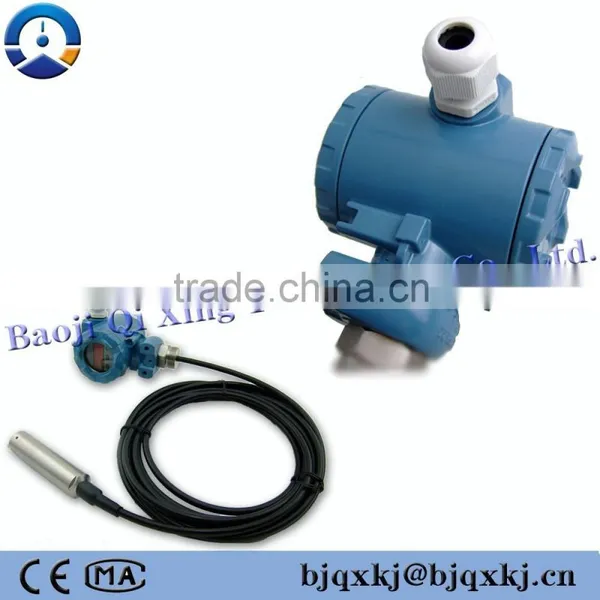

2015 new type submersible liquid level sensor,level transmitter for sale
This is a standard and most economic transmitter applied in liquid level measuring.
A high sensitivity piezo-resistive silicon pressure chip is employed in the transmitter.
Features:
1.stainless steel 316L isolation diaphragm.
2.Wide variety of pressure ranges and electrical outputs
3.Low cost and compact package
4.a waterproof cable with vent hose
5.high accuracy,smart structure
Specifications:
| pressure range | 0~1mH2O...200mH2O |
| overload pressure | 200%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
| accuracy | 0.1%FS, 0.25%FS (standard), 0.5%FS |
| load resistance | RL = (U-12V)/0.02A (4~20mA current output) U-loop voltage (V) |
| long term stability | <0.2%FS/year |
| supply voltage | 12~36V |
compensated temperature range |
0~70°c |
| storage temperature range | -40~+100°c |
| temperature coefficient of zero | 0.25%FS/10°c |
| temperature coefficient of span | 0.25%FS/10°c |
| insulation resistance | 100MΩ@ 50VDC |
| electrical connection | 7.6mm shielded cable with vent hose |
|
material of wetted part and housing |
1Cr18Ni9Ti |
| material of pressure membrane | 316L or tantalum |
| sealing | Butyronitrile or fluoro-rubber sealing ring |
We can send goods to you by DHL, TNT, UPS, SF, EMS, and charge the freight cost from you, or you can use your own courier, just for your convenience.
In order to offer the most suitable sensor , please give following necessary details:.
1.what is your medium and application?
2.what is your requirements for following specifications:
pressure range,output signal,electronic connection and accuracy
We are a professional manufacturer and exporter that engaged in the development, salesand customized service of
Pressure sensors/transmitters,
Temperature sensor/transmitters,
digital pressure gauges
level measuring instruments,
Pressure switch etc.
Any needs,pls contact.
