48 Volt dc Generator for Telecom

Name: 48 Volt dc Generator for Telecom
Brand: YOHOU
SKU: 119017923
Availability: InStock

Chongqing Zhiren Electric Equipment Co., Ltd.

US$ 2,400 - 2,999 MOQ: 1 Unit

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

YOHOU

Model Number:

ZF3/M48-50 ZF6/M48-100

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing Shanghai or Other China Ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name YOHOU

Model Number ZF3/M48-50 ZF6/M48-100

Output Type DC

Speed 3000rpm

Frequency 50Hz

Rated Power 3KW or 6KW

Rated Voltage 48V

Rated Current 50A/100A

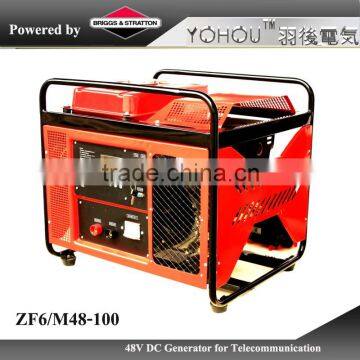

48 volt dc generator for telecom

Product Description

1. 48 volt dc generator powered by Briggs & Stratton/KOHLER engine.

2. Small volume, light weight, stable performance, low failure rate;

3. Energy-saving and low emission; low fuel consumption;

4. Module design, safe and reliable; with alarm functions of over voltage, short circuilt, overheat power supply module, engine oil alert;

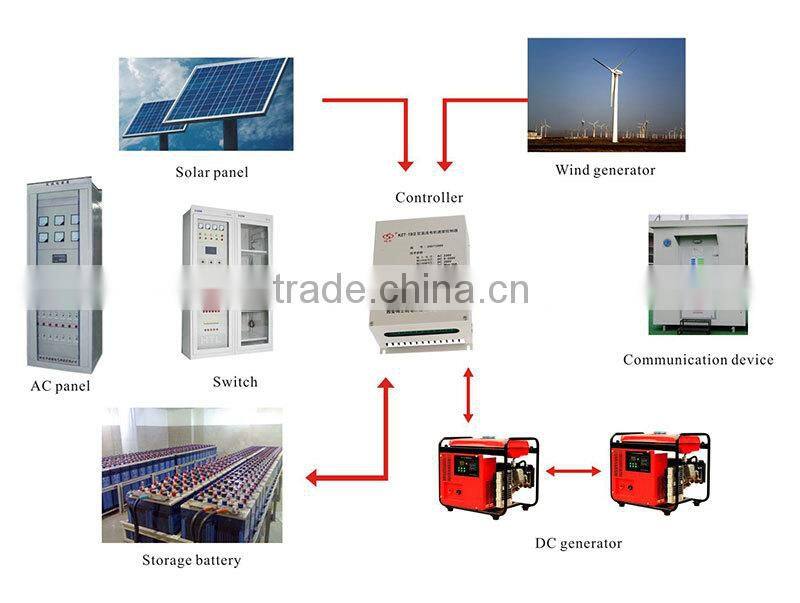

5. can work separately as well as work together in cabinets to supply power for telecom equipments.

6. 50A/100A 48 volt dc generator is ease of operation and maintainenance,

7. 48 volt dc generator is used for telecom emergency power, Mobile Base Station, etc.

Technical Parameter

Engine	Model	ZF3/M48-50	ZF6/M48-100
	Engine Brand	Briggs & Stratton	KOHLER CH440
	Horse Power (HP)	6.5HP	14HP
	Cooling type	Force air cooling	Force air cooling
	Fuel type	93# pure gasoline or above	93# pure gasoline or above
	Displacement (CC)	205 CC	429 CC
	Oil alert system	Yes	Yes
	Start system	Hand recoil or electric	Hand recoil or electric
	Fuel consumption (g./kw.hr)	≤370	≤350
	Fuel tank capacity (L)	15 L	15 L
Generator	Output voltage (V)	48V (rating voltage) 53.5V(floating voltage) 56.4V(even charging voltage )	48V (rating voltage) 53.5V(floating voltage) 56.4V(even charging voltage )
	Output Current (A)	55A (rating voltage) 52A(floating voltage) 50A(even charging voltage)	110A (rating voltage) 105A(floating voltage) 100A(even charging voltage )
	DC output power (kw/rpm)	3.2/3600rpm	6/3600rpm
	Voltage Regulated Accuracy	superior to ±1%	superior to ±1%
	Load sharing	superior to ±5%	superior to ±5%
	Load step overshoot	superior to ±5%	superior to ±5%
	Soft start time	3S -10S	3S -10S
	Weighted noise (300Hz-3400Hz)	<2mv	<2mv
	Peak-Peak Noise	<200mv	<200mv
	Broadband	3.4Hz-150Hz <50mV	3.4Hz-150Hz <50mV
		0.15Hz-30MHz <20mV	0.15Hz-30MHz <20mV
	Discrete noise	3.4Hz-150Hz <5mV	3.4Hz-150Hz <5mV
		150kHz-200kHz <3mV	150kHz-200kHz <3mV
		200kHz-500kHz <2mV	200kHz-500kHz <2mV
		0.5MHZ-30MHz <1mV	0.5MHZ-30MHz <1mV
Completed Generator	Noise level (dB(A)/7m	68	72
	Dimension (L x W x H) (mm)	600 x 410 x 490	654 x 540 x 616
	Net weight (Kg)	35KGS	62KGS
