Diesel Portable DC Generator 5 kW 48V
US$ 4,900 - 5,999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YOHOU
Model Number:
ZF3/M48-50 ZF6/M48-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Shanghai or Other China Ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100A-200 DC GNERATOR FOR TELECOM DTSUS$ 1.00 - 1.00MOQ: 5 Sets -
Kohler Diesel 48V 100A DC GensetUS$ 4,100 - 5,900MOQ: 1 Set
-
Diesel 48v 100A PMA dc GeneratorUS$ 2,100 - 2,900MOQ: 1 Unit
-
100A-200 DC GNERATOR FOR TELECOM DTSUS$ 6500.00 - 6500.00MOQ: 5 Sets
-
8kw 48v dc Diesel Power GeneratorUS$ 7,500 - 8,000MOQ: 1 Unit
Place of Origin
Chongqing, China
Brand Name
YOHOU
Model Number
ZF3/M48-50 ZF6/M48-100
Output Type
DC
Speed
3000rpm
Frequency
50Hz
Rated Power
5kw, 6KW
Rated Voltage
48V
Rated Current
50A/100A

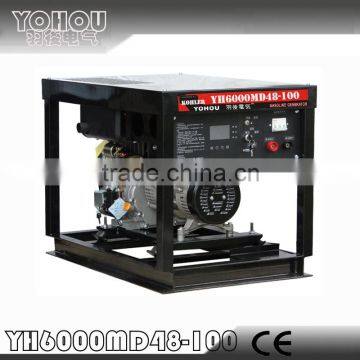

Diesel Portable DC Generator 5 kW 48V
Product Description
1. Diesel Portable DC Generator 5 kW 48V for telecom shelter/telecom tower
2. Equipped with KOHLER engine
3. with permanent magnet generator
4. Voltage: 48V DC output
5. Current Output: 100A, 200A, .
Protection characteristics
battery reverse connection protection,timing shutdown protection,
grid supply stop engine protection (optional),
engine preheating protection;
engine lubricating oil level alarm protection,
over-voltage protection,
over-current protection,
limit-current protection,
short-circuit protection,
module over-heating protection
Technical Parameter
| Model | YH6000MD48-100 | |
| Generator alternator | Excitation Type | Rare-earht permanent magnet |
| DC Output Voltage | 48V (40V-59V continuous adjustable) | |
| 24V (20V-30V continuous adjustable) | ||
| DC output Curret | 100A | |
| DC Output Power | 6KW/3600RPM | |
| Engine | Brand | KOHLER |
| Type | Single cylinder, air cooled, 4 strokes, | |
| Displacement (CC) | 505 CC | |
| Continuous Rated Power | 6KW/3600RPM | |
| Start Type | Electric Start | |
| Lubricate Oil Type | SAE30 | |
| Lubricate Oil Capacity | 2 L | |
| Fuel Type | 0# Diesel(Summer)or -20# diesel(Winter) | |
| Fuel Consumption(g/kw.hr) | ≤389 | |
| Environment | Atmospheric pressure | 70kPa~106kPa |
| Work Temperature | -20℃~+60℃ | |
| Storage Temperature | -40℃~+70℃ | |
| Protection | Protection Functions | battery reverse connection protection, |
| timing shutdown protection, | ||
| grid supply auto-shutdown protection | ||
| engine preheating protection; | ||
| engine lubricating oil level alarm protection, | ||
| over-voltage protection, | ||
| over-current protection, | ||
| limit-current protection, | ||
| short-circuit protection, | ||
| module over-heating protection | ||
| Start Conditions | Stationary AUTO Type | Grid Power Unavailable |
| Stationary AUTO Type | Lower than 48V Batteries Lower Limit Voltage | |
| Shutdown Condition | Stationary AUTO Type | Grid Power available |
| Stationary AUTO Type | batteries voltage value higher than upper limit voltage value, batteries charging current, Timing shutdown |
|
| Gneset | Fuel Tank Capacity (L) | 25L |
| Continuous work time | 6KW /24 Hours | |
| Noise level [non-load~full-load[dB(A)/7M] |
[non-load~full-load[dB(A)] 82~90 | |
| Dimensions(L×W×H) (mm) | 700×500×680 | |
| Weight(net weight)KGS | ≤100kg | |
