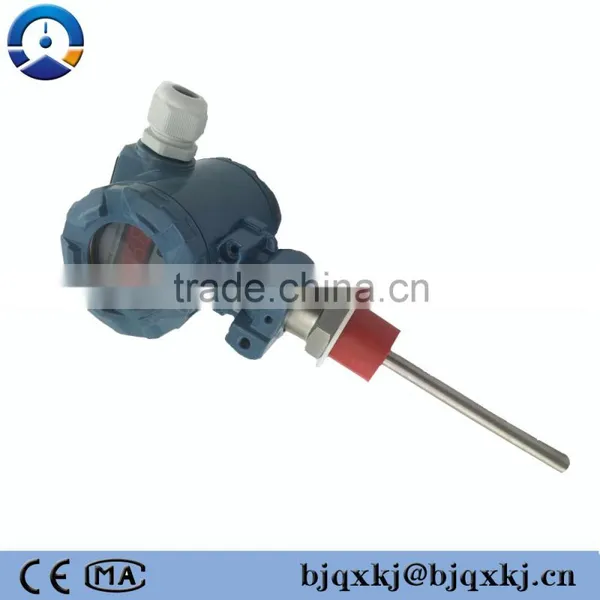

Digital temperature transmitter,4-20ma pt100 temperature transmitter
QTB102 series temperature transmitter using PT100 temperature sensor as the sensing component,
Temperature compensation of laser resistor trimming by using computer, integrated wiring box design.
With special terminal and digital display, installation, calibration repair are convenient.
This series of products suitable for petroleum, chemical, metallurgy, electric power, water conservancy,
scientific research, environmental protection and other various enterprises and institutions, to realize the
measurement of fluid temperature and is suitable for various occasions all-weather environment and all kinds of corrosive fluid.
Features:
- Easy to install, several optional testing range
- Dual use for gas and liquid, used to various material compatible with 316L stainless steel
- Several optional linear analog signal
- Quick response, high accuracy
- Good long term stability, low energy consumption
Specifications:
pressure range |
0~100℃ |
accuracy |
0.5% |
overload |
200% |
output |
4~20mA/RS485 |
stability |
≤0.1% /year |
voltage |
18~36VDC |
display |
4-digit LED |
display range |
-1999~9999 |
operating temp |
-20℃~70℃ |
Relative humidity |
≤80% |
thread |
M20*1.5 |
The interface material |
stainless steel 304 |
Options guide QTB102 Temperature transmitter | ||
|
Thread connection |
M27 |
M27*2 |
M20 |
M20*1.5 |
|
Measure range |
0~100℃ (......) |
|
length |
L25(mm)(......) |
|
