8kw 48v dc Diesel Power Generator

FOB Price

US$ 7,500 - 8,000 / Unit

1 Unit(Min. Order)

Port Chongqing Shanghai or Other China Ports
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China	Brand Name	YOHOU
Model Number	ZF5/M48-100	Output Type	DC
Speed	3600rpm	Frequency	50/60HZ
Rated Power	5kw, 10kw	Rated Voltage	48V
Rated Current	100A

Product Description

8KW 48V dc diesel genset for Telecommunication

Product Description

Advantage:

Energy-saving 25%

Reducing fuel consumption by 20-25%;

Convenient Paralleling function

can be paralleled together with two or more; power capacity and paralleling units can be optional for different loads;

Soft start

current slowly rises after start to avoid the impact on communication loads and batteries.

The max current can be adjusted step by step, which is applicable to the batteries charging and load power supply for various base stations.

Large current, compact size, lightweight

Intelligent management on battery charging

Adaptable to quick charging; prolong service life of accumulator,

charging process has 3 steps: constant flow, equalized charging, floating charging;

the charging process complies with IEC standard.

High automation

RS232/RS485 communication port for communication protocol;

with functions of remote control, remote testing, remote communication

Technical Parameter

Model		YH10000MD48-150
Engine	Brand	KOHLER
	Type	2 cylinder, 4 stroke , force aircooled
	Displacement(cm³)	720
	Continuous Power[kw/(r/min)]	10.0/3600
	Start	electric start
	Lubricating oil Type	SAE20
	Lubricating oil capacity(L)	2
	Fuel	0# Diesel(Summer)or -20# diesel(Winter)
	Fule consumption(g/kw.hr)	≤370
Generator Alternator	Excitation System	Rare-earth Permanent Magnet
	DC output Voltage(V)	48V (Rated voltage) (40V-59Vcontinuously adjustable ) 24V (Rated voltage) (20V-30V continuously adjustable )
	DC output Voltage(V)	48V (rating voltage) 53.5V(floating voltage) 56.4V(Equalized Charging )
	DC output Current(A)	150A (Rated current ) (2A-110A continuous adjustable)
	DC output Current(A)	150A(Equalized Charging) 110A (rating voltage) 105A (floating voltage)
	DC Output Power [kw/(r/min)]	8.6/3600
	Power (kW)	8kw
Enverimoment	Atmospheric Pressure	70kPa~106kPa
	Work Temperature	-20℃~+60℃
	Stroge Temperature	-40℃~+70℃
Protection	Protection Function	battery reverse connection protection, timing shutdown protection, grid supply auto-shutdown protection (optional), engine preheating protection; engine lubricating oil level alarm protection, over-voltage protection, over-current protection, limit-current protection, short-circuit protection, module over-heating protection
Start Conditions	Stationary AUTO Type	Grid Power Unavailable
Start Conditions	Stationary AUTO Type	Lower than 48V Batteries Lower Limit Voltage
Shutsown Condition	Stationary AUTO Type	Grid Power available
Shutsown Condition	Stationary AUTO Type	batteries voltage value higher than upper limit voltage value, batteries charging current, Timing shutdown
Genset	Fuel tank capacity(L)	25L
	Continuous work time (Rated Power / Hour)	24
	Noise level [non-load~full-load[dB(A)]	82~90
	Dimensions(L×W×H) (mm)	1100×700×720
	Weight(net weight)	≤180kg

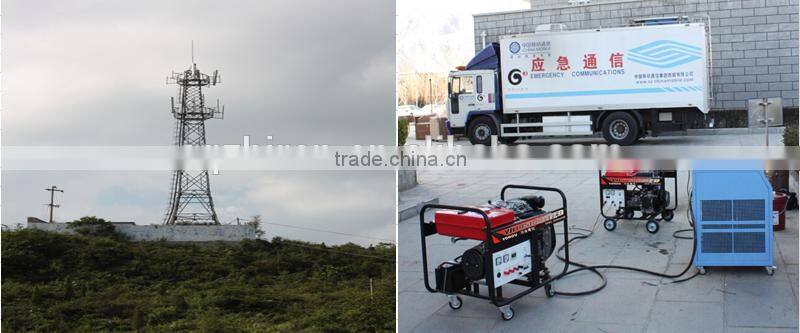

Application
