Name: Analog MultimeterDigital MultimeterClamp MeterVU MeterElectrical TestersAlligator Clips
Brand: TRUSTFUL
SKU: 119012433

US$ 4.55 - 4.55 MOQ: 500 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

TRUSTFUL

Model Number:

ST-395

Suzhou Trustful Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name TRUSTFUL

Model Number ST-395

Measuring Current Range 0-10A

Measuring Voltage Range 0-1000V,

Measuring Resistance Range X1,X10,X1K,X10K(0.2-20M)

Dimensions Dimensions: 136 x 92 x 40mm

Specifications

Simplest operation, Fully safety protection, Portable case with back stand.

Product Description

ST395 Analog Multimeters w/ 3.2V Maximum Across Voltage for Diode Test

View Specs for 1 product

Brand Name:

Country of Origin:

Key Specifications/Special Features:

DC voltage: 0-0.5-2.5-10-50-250-1000V

Accuracy: +/-3% F.S.

Input impedance 20K ohm/V
AC voltage: 0-10-50-250-1000V

Accuracy: +/-4% F.S.

Input impedance 9K ohm/V
DC current: 0-0.05-2.5-25-250mA,10A

Accuracy: +/-3% F.S.

Terminal voltage drop 250mV
Resistance:

X 1: 0.2 ohm-2K ohm (20 ohmmid-scale)

X 10: 2 ohm-20K ohm (200 ohm mid-scale)

X 100: 20 ohm-200K ohm(2K ohm mid-scale)
-X 1K: 200 ohm-2M (20K ohm mid-scale)

X 10K: 2K ohm-20M (200K ohm mid-scale)

Accuracy: +/-4% of scale length
-Internal batteries UM-3x2pcs 006P (9V)x1pc
Battery test: 1.5V battery (UM-1, UM-2, UM-3)
Load current: 250mA
Decibels: -10 to +22dB (for 10VAC) to +62dB; 0dB=0.755V, 600 ohm
Transistor hfe test: 0-1000 at (on range ohm x10) (Ic/Ib)
Insert transistor terminals directly
Diode test:
Maximum across voltage: 3.2V
Continuity test:

Buzzer

Within 30 ohm
Leakage current:

Iceo LI: 0-150uA at x 1k range

0-15mA at x 10 range

0-150mA at x 1 range

Current across terminals
Dimensions: 136 x 92 x 40mm

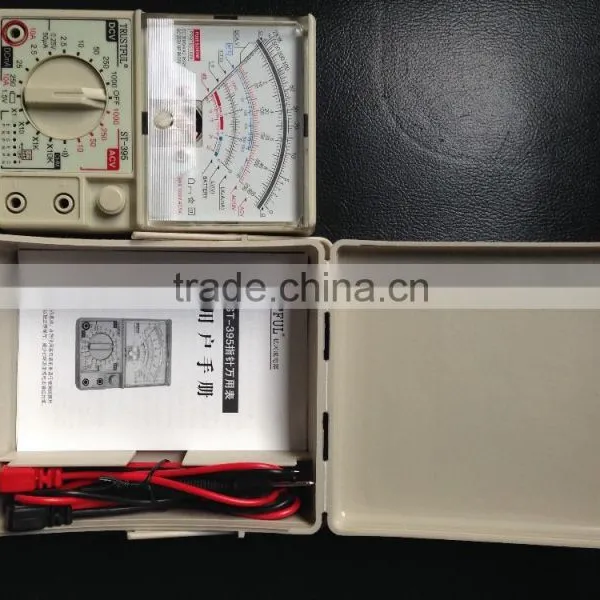

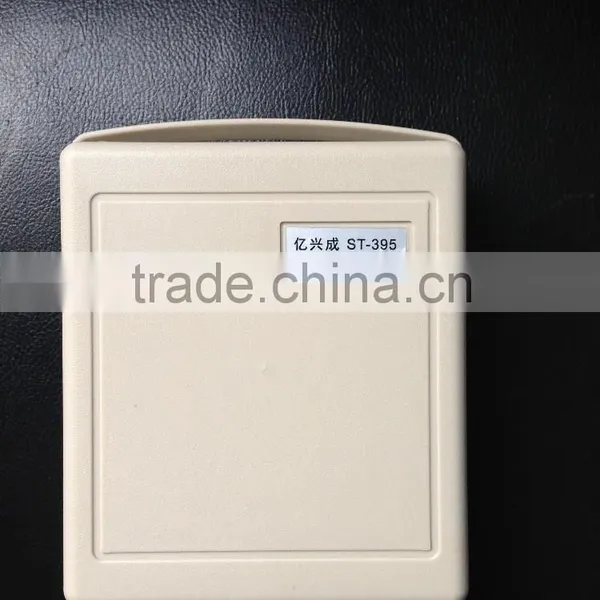

Weight: 280g approx. with PP carrying case
