Home > Manufacturing & Processing Machinery > Crane > Overhead Crane > LX Type Electric Single-Girder Overhead Crane
LX Type Electric Single-Girder Overhead Crane
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Max. Lifting Load:
5t
Span:
3~16m
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MDG Type Hook Single-girder Gantry CraneNegotiableMOQ: 1 Unit -
QZ Type Grabbing Overhead CraneNegotiableMOQ: 1 Unit
-
LDA Type Electric Single-girder Overhead CraneNegotiableMOQ: 1 Unit
-
MG Type Double-girder Gantry CraneNegotiableMOQ: 1 Unit
-
LH Type Electric Hoist Double-Girder Overhead CraneNegotiableMOQ: 1
Condition
New
Max. Lifting Load
5t
Span
3~16m
Place of Origin
China
Model Number
LX
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

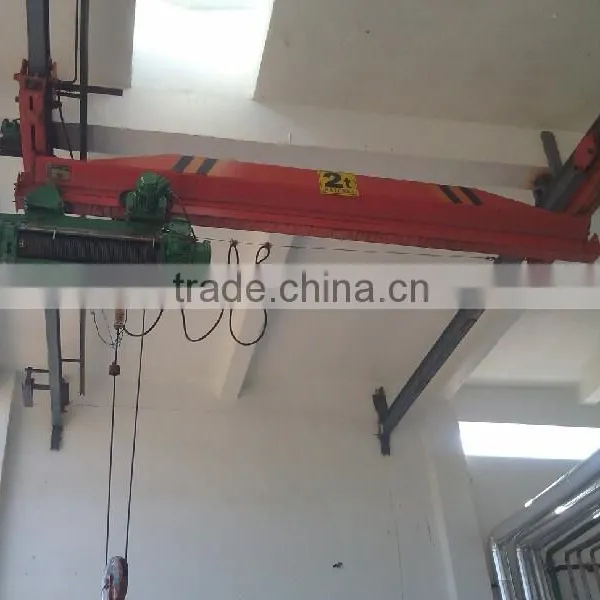

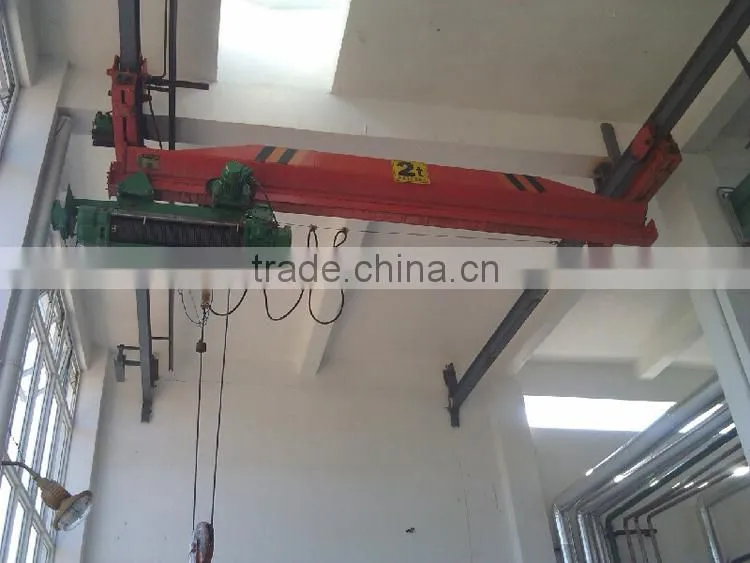

LX type electric single-girder overhead cranes
is one small crane running on rails, matched with CD1 or MD1 electric hoists.
Lifting weight 0.5~5t, work span 3~16m, running spead 20 or 30m/min.
This crane uses ground type operation, A3~A5 working level, -25~45℃ working temperature, relative humidity < 85%,
suitable for the non-flammable, non-explosive and non-corrosive manufacturing plants, assembly plants and warehouses.

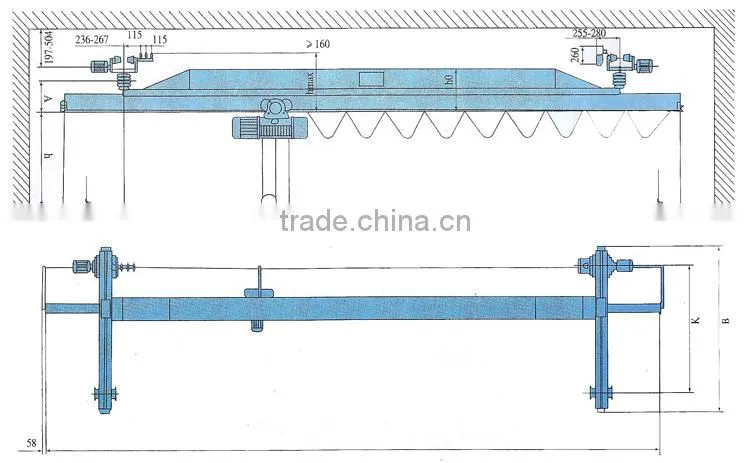

The structures are main girders, beams, trolley, electrical appliances and lifting mechanism.

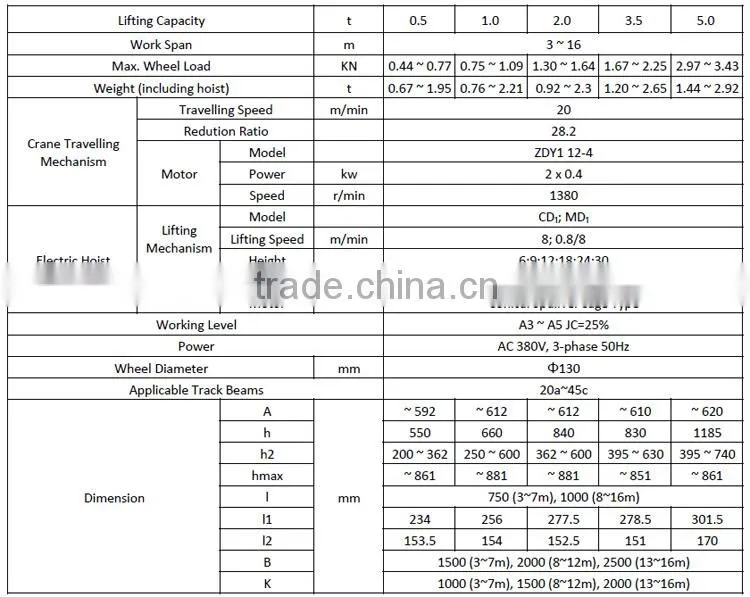

Technical Parameters:
Remarks: We can do OEM upon clients' special requirements.
About us:
Certificates:
