Specifications

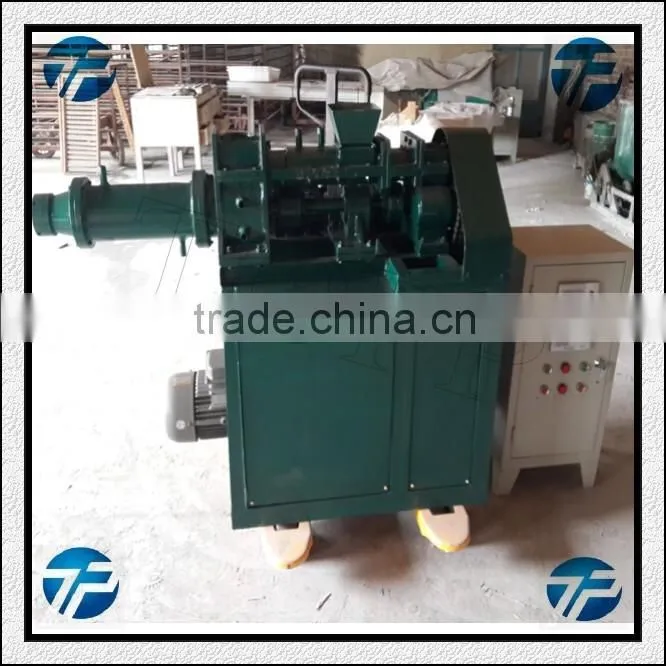

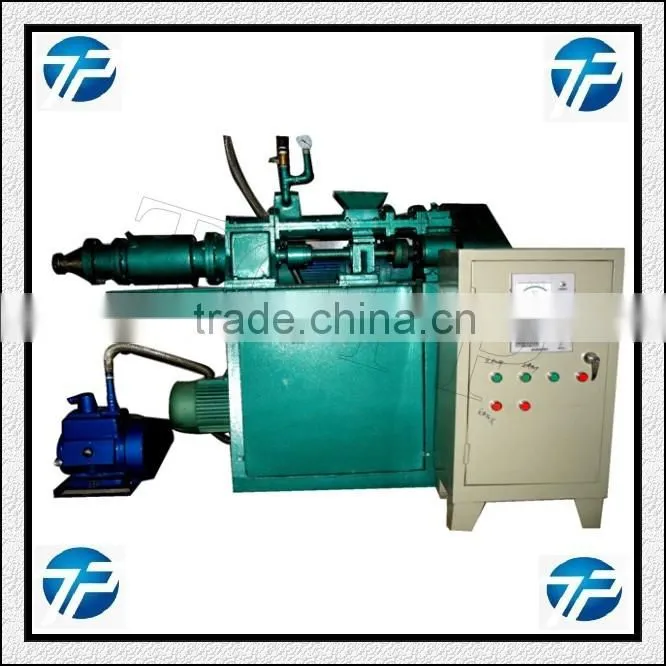

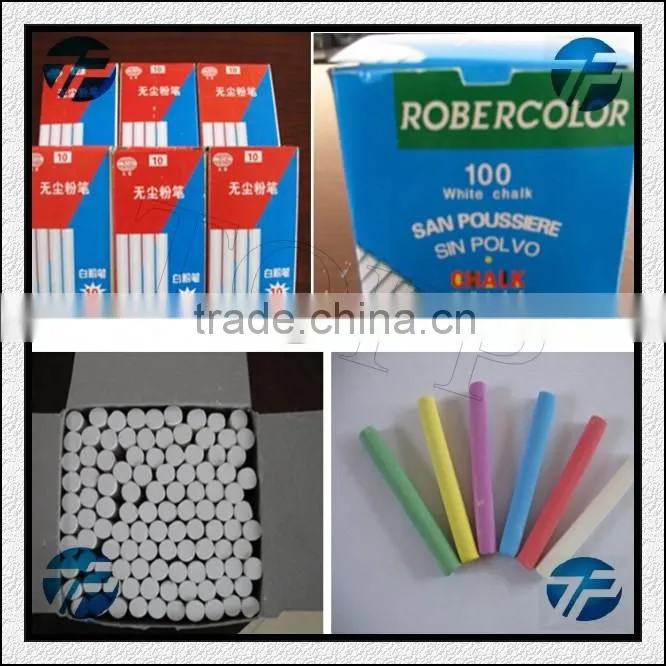

Calcium Carbonate Chalk Extruder Machine for Making Chalks: the produced chalk is absolutely dustless chalk.Calcium Carbonate Chalk Extruder Machine for Making Chalks:
Introduction:
1. This machine is horizontal triaxial structure. It adopts continuously viable conveying. The producing speed can be adjusted according to the customers' demands.
2. The extruder parts includes screw rod, screw leaf and screw groove. There is hard ally steel sheet in the easy-broken part to prolong the service life of the machine.
3. Chalking touching part is made of stainless steel.
4. The chalk material tube and vacuum working room are both adopted open-type device, which is convenient to exchange the chalk raw material and maintain.
5. This extruder can be for round shape and kinds of models of chalks.
Technical parameters:
Model: TPP-JC100
Screw diameter: 100mm
Screw rotating speed: 28-200rpm
power: 4.5kw
weight: 900kg
dimension: 2000*900*1450mm
Feature:
1. The whole machine is made of high-strength aluminum alloy structure, very durable.
2. Conveyor speed can be adjustable
3. Both sides adopt hand wheel, which is more convenient for adjusting.
