Specifications

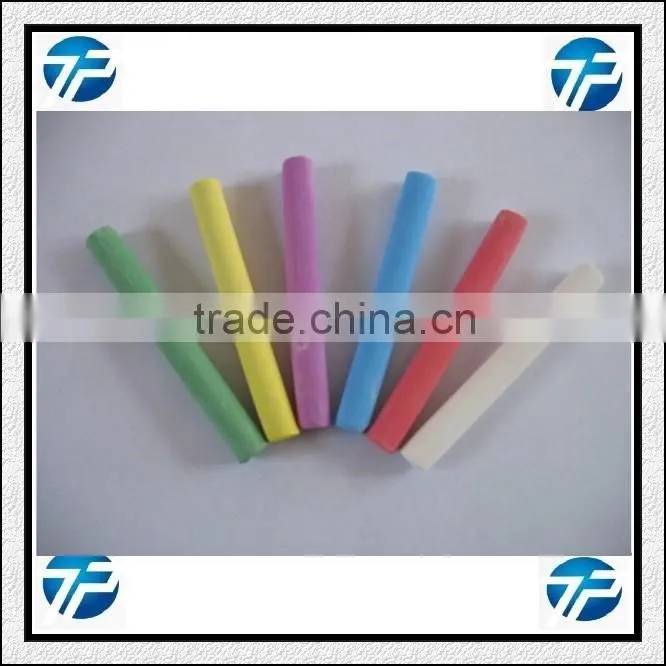

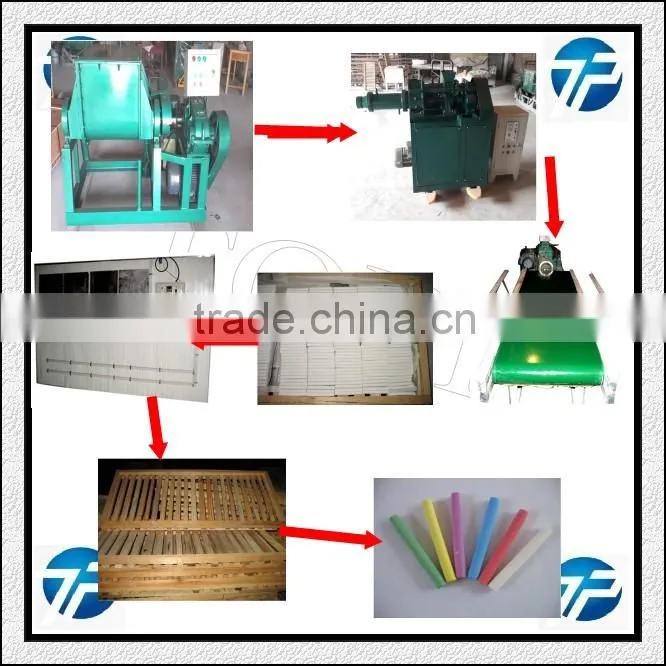

Automatic Dustless Chalk Production Line : for producing high quality calcium carbonate dustless chalks.Automatic Dustless Chalk Production Line :
| Model | Technology Parameters | Description |
Mixer Machine |
Model: TPP-JB100 Hopper capacity: 100L Mixing speed: 35/22rpm Power: 5.5kw Weight:1000kg Dimension:2300*1000* 1000mm |
Material touching part is made of stainless steel, and it can ensure the product purity and quality. This model adopts double screws to mix the material, which can make the material homogeneous mixing. |
|

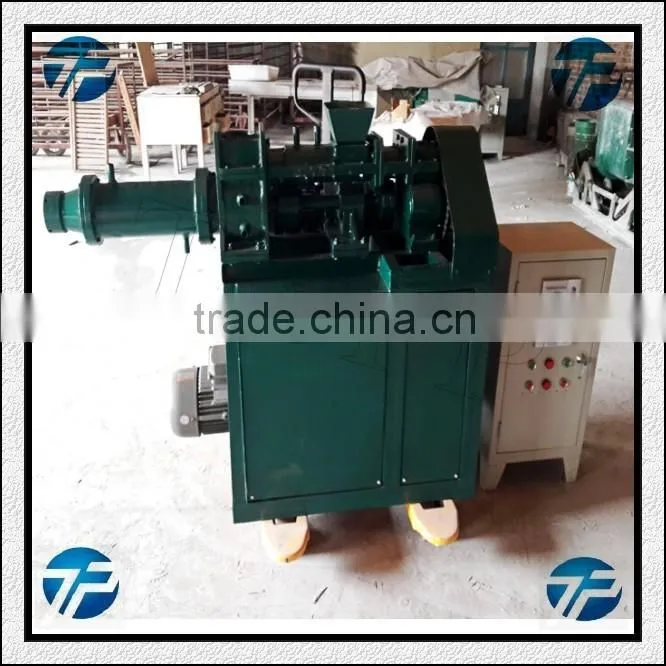

Dustless chalk extruder |
Model: TPP-JC100 Screw diameter: 100mm Screw rotating speed: 28-200rpm Power: 4.5kw Weight:900kg Dimension:2000*900* 1450mm |
|

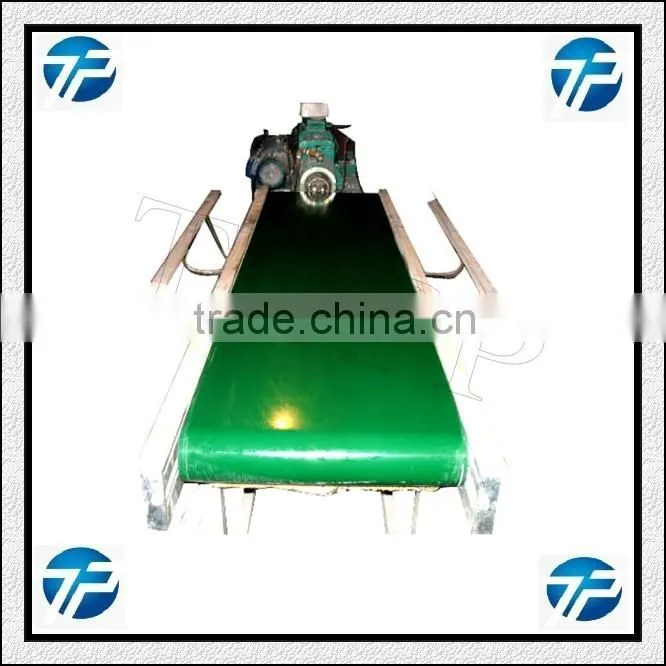

| Conveyor |
Model: TPP-CS100 Size: 2000*580mm rotating speed: 0-5m/min material: PVC Weight:300kg Dimension:2300*1000* 1000mm |
The whole machine is made of high-strength aluminum alloy structure, very durable. 2. Conveyor speed can be adjustable 3. Both sides adopt hand wheel, which is more convenient for adjusting. |
| Stainless steel Chalk Cutter |
Model: TPP-QD100 Material: stainless steel Cutter blades thickness: 0.5mm Weight: 80kg Dimension: 1300*900*1000mm |
This cutting machine adopts stainless steel cutting blades; the processed chalks are very uniform |
|
Infrared Ray Drying Machine (this machine is optional according to customers’ demand) |
Model: TPP-HG100 Temperature control: 30-120°C Weight: 1000kg Dimension: 3800*1700*2560mm |
This machine adopts radiation heating and automatic temperature controlling system. 2. Temperature rising is very quickly, so it can shorten the drying time. |
Chalk drying tools |
Material: wood Size: 900*450*60mm |
Putting the chalks on the tools for drying by air and sun |
]
